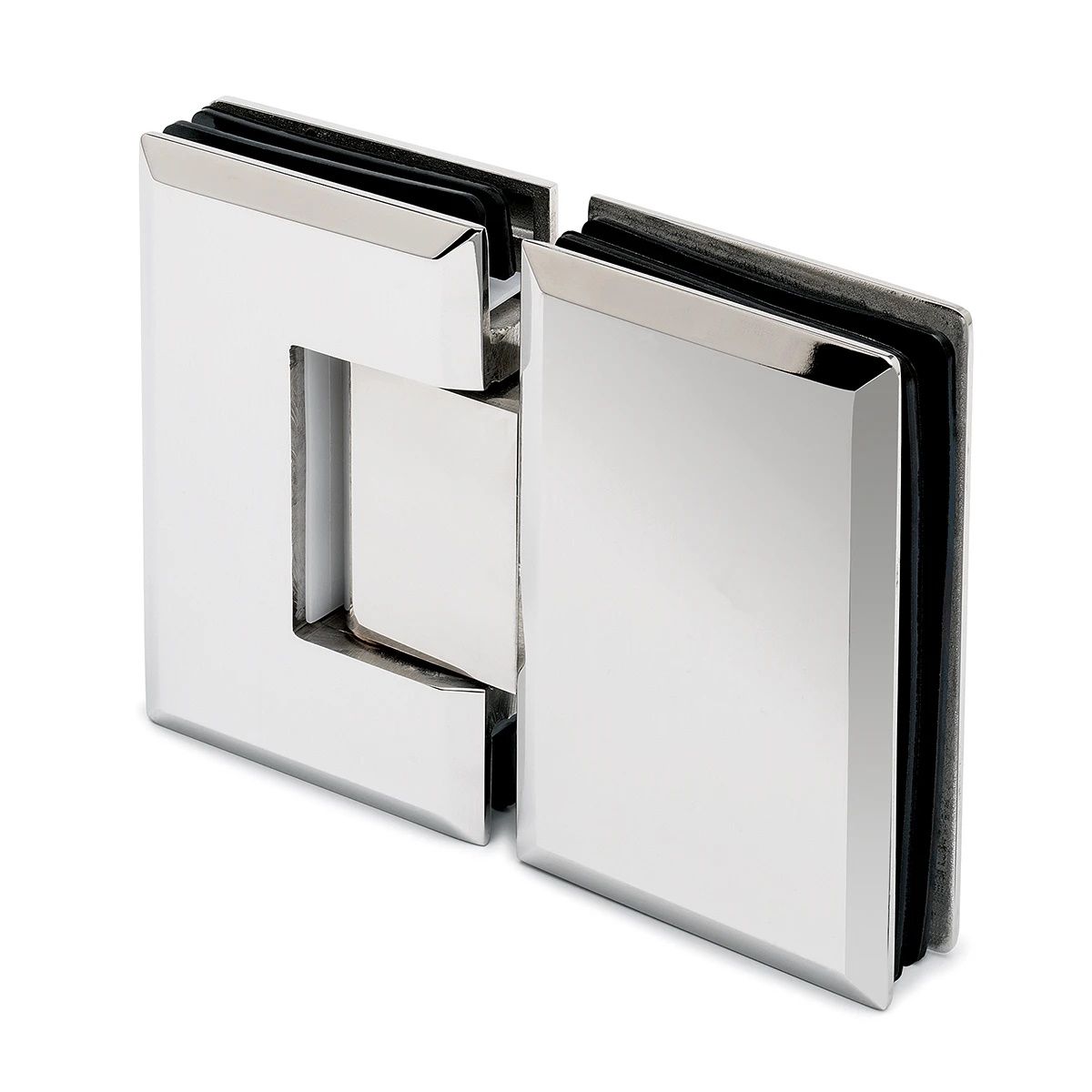

Stainless Steel Glass Door Hinges for fixing a glass shower door to a fixed glass side panel that runs on a 180 degree angle (in-line).
- Material: Stainless Steel (SUS304)
- Finish: Satin Stainless or Mirror Polished
- Fits 8 - 12 mm thick glass door
- Open both inwards and outwards 90 degree
- Glass Cut-out required
- Supplied with gaskets.
Please Note: this hinge does NOT suit Bi-Folding shower door. 180° means glass door hinged off the fixed panel at 180°, when door is closed the fixed panel and door are 'in-line'. Door opening 90° inwards and outwards, but cannot fold back to the fixed panel.
Door Opening: Dual action springs, opening both inwards and outwards (90° in and 90° out).
Closing Type: Self-closing from approximately 30 degrees

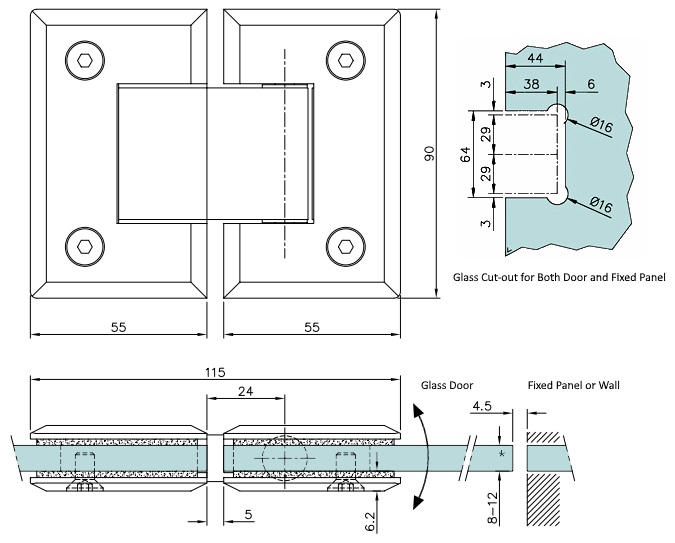

Glass Fabrication: glass cut-out required
*Assembly Example: 8mm toughened glass without PVC seals

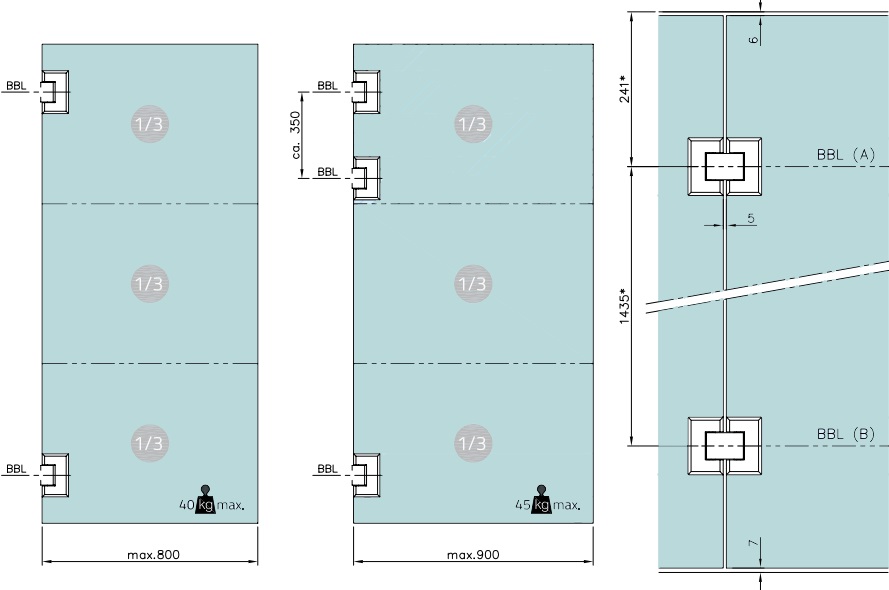

Recommended Door Dimensions (according to *DIN 18268)
| Glass Door Height | Distance between Frame Rebate and BBL(A) | Distance between BBL(A) and BBL(B) |
| 1860 - 2110 mm | 241 + 1mm | 1435 mm ±0.5 mm |
| 2111 - 2235 mm | 241 + 1mm | 1560 mm ±0.5 mm |
| 2236 - 2360 mm | 241 + 1mm | 1685 mm ±0.5 mm |
DRAWING NOT TO SCALE.
Please Note: All specifications are for reference purposes only and are subject to change without prior notice.
