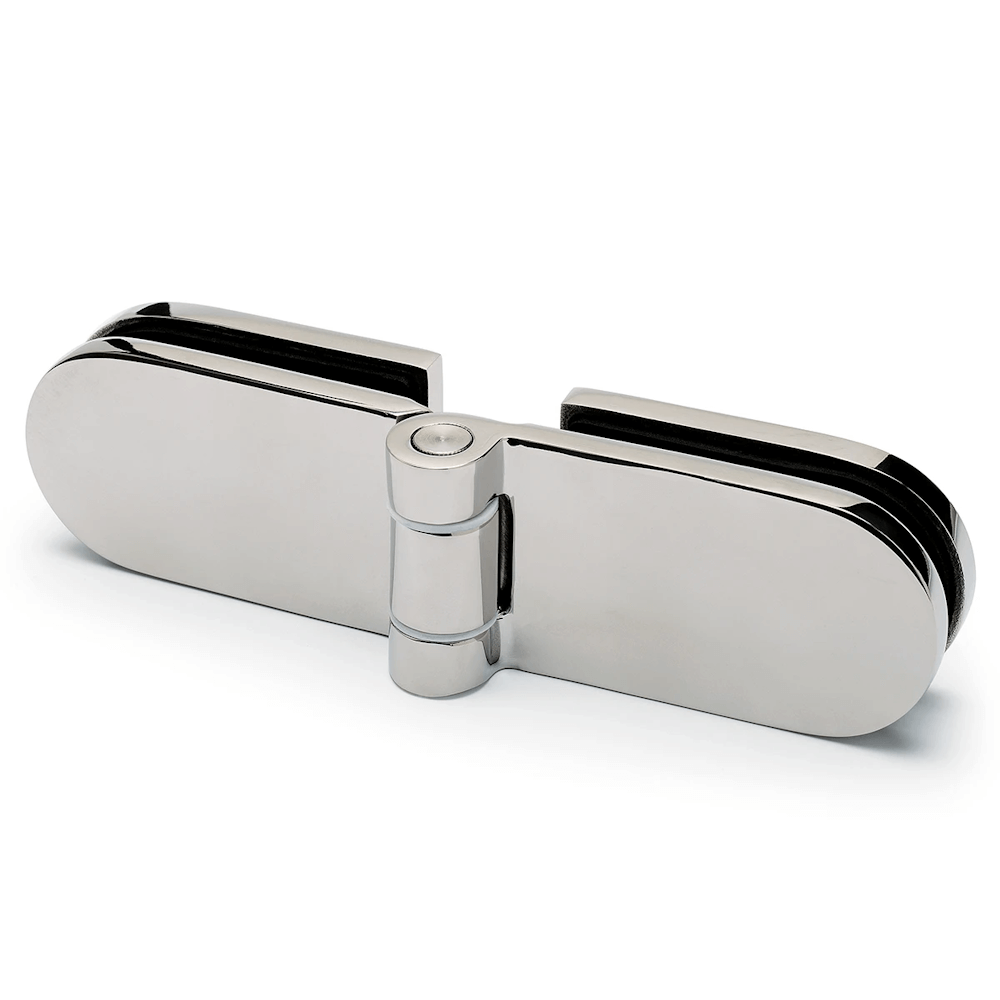

180° Glass-to-Glass Bi-Folding Door Hinge
180° Glass-to-Glass Bi-Folding Door Hinge

180° Glass-to-Glass Bi-Folding Door Hinge

(Exc. 20% VAT)
(£36.00 Inc. VAT)
Item Code

Price shown is per hinge.


Stainless Steel 180° Glass-to-Glass Bi-folding Shower Door Hinges for 6mm - 10mm glass panel.

Suitable for 180 degree in-line glass-to-glass application (two panels join at 180 degree),

      Material: Stainless Steel SUS304

      ■  Finish: Satin or Mirror Polished

      Glass Thickness: for 6-10 mm thick glass door

      Bi-folding door: door can be fold back to the fixed panel (open outwards only).

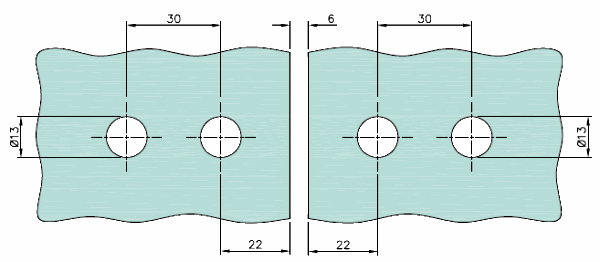

      Glass Fabrication: holes x 4 required

      Accessories: supplied with gaskets, fixing screws.


 Door Opening: open outwards 180 degree (can fold back to the fixed panel)

 Closing Type:  Not Self closing, push to close

 Glass Fabrication: hole drilling in glass needed

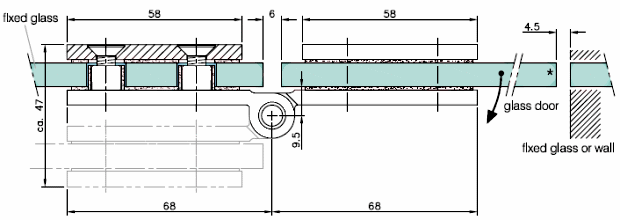

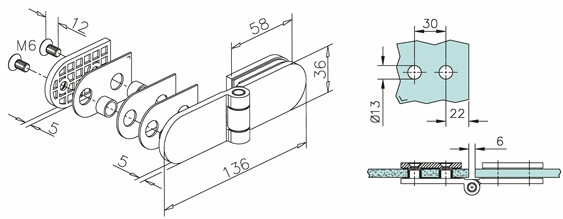

Assembly for 180-degree Bi-folding Door Hinges

                                         Assembly Example: 6mm toughened glass without PVC seals

Recommended Door Dimensions (according to *DIN 18268)

Glass Door Height Distance between Frame Rebate and BBL(A) Distance between BBL(A) and BBL(B)
1860 - 2110 mm 241 + 1mm 1435 mm ±0.5 mm
2111 - 2235 mm 241 + 1mm 1560 mm ±0.5 mm
2236 - 2360 mm 241 + 1mm 1685 mm ±0.5 mm

Please Note: All specifications are for reference purposes only and are subject to change without prior notice.
