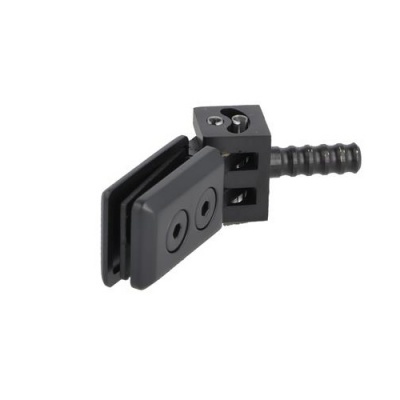

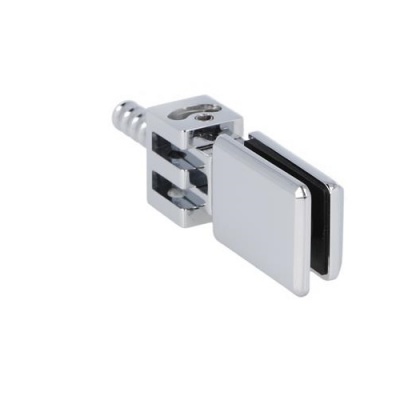

Inset Door Hinge for 12mm Cabinet Side Board
Inset Door Hinge for 12mm Cabinet Side Board
Inset Door Hinge for 12mm Cabinet Side Board
Inset Door Hinge for 12mm Cabinet Side Board
Inset Door Hinge for 12mm Cabinet Side Board

Inset Door Hinge for 12mm Cabinet Side Board

(Exc. 20% VAT)
(£24.00 Inc. VAT)
Chrome Plated
Matt Black
Polished Brass
Item Code

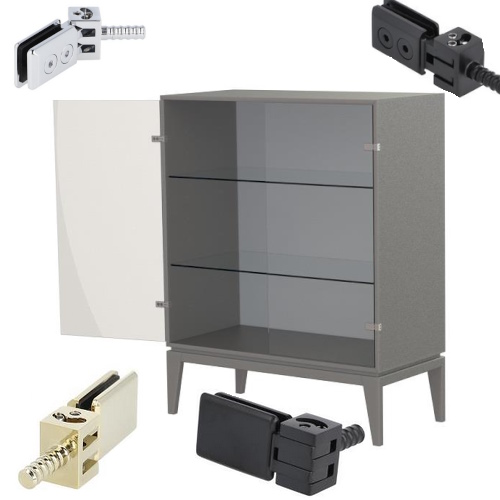

An Elegant Door Hinge for inset cabinet door that allows the door to fit flush with the cabinet frame.
Applications: For Glass or HPL Door Panels ( 4mm - 6mm thick) with Cabinet Side Panel Wall Thickness: 12mm.

Material: Brass

    ■ Finish: Chrome Plated, Matt Black or Polished Brass

    ■ Dimensions: L 42mm x H 20mm x D 31mm

    ■ For 4 - 6 mm thick inset door panels with 12mm thick Side Cabinet Board

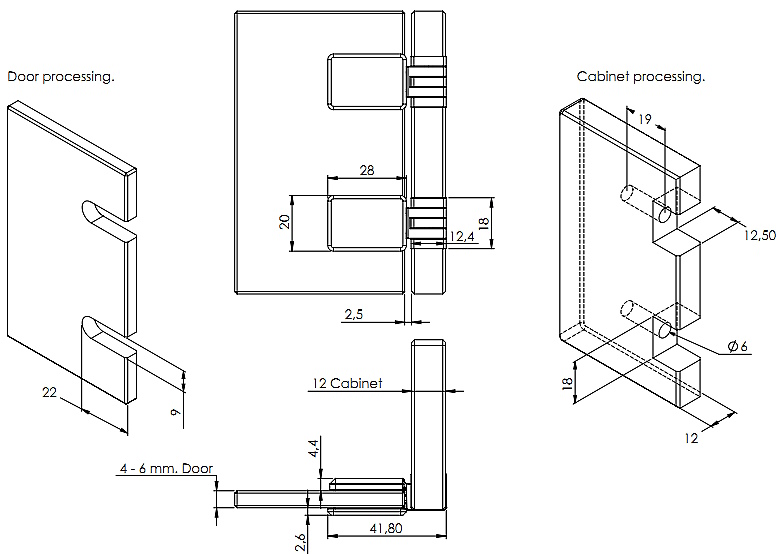

    ■ Glass Fabrication: cut-out required

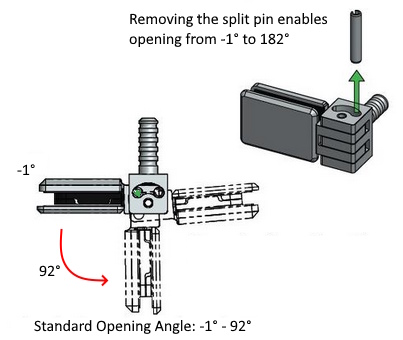

    ■ Opening Angle: pre-set at -1° to 92° (Max. -1°  to 182° removing the split pin)

    ■ Max. Load Capacity: 5 kg per hinge

    Max. Door Size: H 2000mm x W 600mm x T 6mm


You can also find our Installation Video on YouTube.
