Slimline Floor Spring

(Exc. 20% VAT)
(£100.80 Inc. VAT)
Hold Open
Non-Hold Open
Item Code

This vary-power (EN 1-4) Floor Spring comes with high performance cam and roller mechanism to suit all needs saves time and can be adjusted with micro measurement and ease. This floor mounted door closer incorporates a back-check facility which prevents the door from being opened too fast; this is useful for, for example, external doors where there is a danger of wind catching and blowing it open, something which could otherwise cause damage to the door set and/or objects and/or people near it.

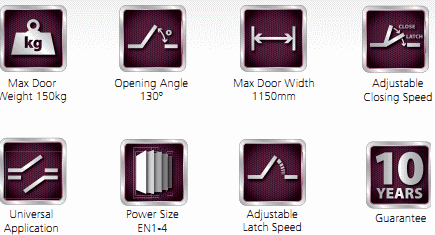

  • Slimline Design: cement box only 81mm wide
  • Available Hold-Open version or Non Hold-Open version
  • Closing Speed and Latch Speed adjustable
  • Max. Load: 150 kg; Max. Door Width: 1150 mm
  • Power adjustable: power size EN 1- EN4
  • Universal design, suitable for left or right hand to open the door both sides.
  • Built-in Back check (optional) creates a buffer to stop the door being pushed back hard against the wall, which prevents damage
  • Interchangeable spindle
  • Supplied complete with Satin Stainless Steel Cover Plate (Cove Plate in Polished Brass or Antique Brass finish available upon request )
  • 10 Years Manufacture Guarantee

This door closer is our best ever floor spring, which replaces the old model FS60.


All specifications are for reference purposes only and are subject to change without prior notice.

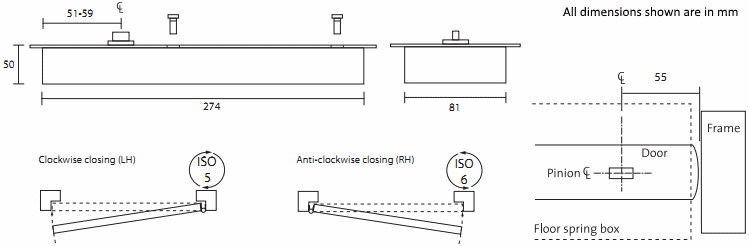

Dimensions for guide only. Component may vary slightly from the sizes shown.
