50mm Adjustable Stand-off Glass Adapter

50mm Adjustable Stand-off Glass Adapter
Stainless Steel Grade: SUS 316,  Spacer (Stand-off Distance): 20mmStainless Steel Grade: SUS 316,  Spacer (Stand-off Distance): 30mmStainless Steel Grade: SUS 316,  Spacer (Stand-off Distance): 40mmStainless Steel Grade: SUS 316,  Spacer (Stand-off Distance): 50mm
Unit Price:  £24.00(Exc. 20% VAT)(£28.80 Inc. VAT)

Item Code:  AGH50-F6-30

Spanner Wrench for Round Glass AdapterSpanner Wrench for Round Glass Adapter

Adjustable Ø50 mm Glass Holder with Flat Back Spacer (stand-off base 20mm, 30mm, 40mm, 50mm):

Not like other standard glass adapters that have only fixed offset spacer, this stainless steel stand-off Glass Adapter has a unique back fixing plate that can extend up to 8mm, which can help the adjustability for the stand-off distance between the glass panel and the fixing surface.

What is it made out of?

SUS316 Grade Satin Stainless Steel for both indoor and outdoor application.

What's the benefits of it being adjustable?

It is designed to attach glass panel to the fixing surface with ease: the adjustment is very helpful when the fixing surface is not 100% straight (not in perfectly level condition). By having the adjustment within the spacer, you can more easily create a perfectly aligned balustrade.

  No need to use extra shims or washers when the fixing surface is not in perfectly level condition.

  Allow easy alignment of glass panel: no need to bend glass in order to line it up when using Cap Rails

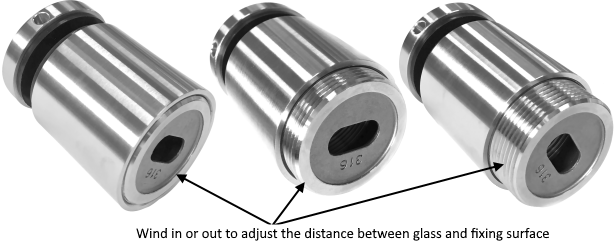

Adjustable Glass Adapter for Uneven Wall Surface

 ■ To suite multi mounting surface: it can be screwed into timber, bolted (drilling & tapped) onto steel work or resin anchored into masonry*.

Glass Adapter for Fixing on Wall, Timber or Steelwork

    * Due to the number of varying mounting conditions, anchors and mounting screws are not supplied.

       1. Front Disc: Ø50mm
       2. Rubber Washer: 4mm, black
       3. Rubber Washer: 4mm, black
       4. M10 Threaded Stud: M10 x 35mm for AGH50-F6-20
                                                M10 x 45mm for AGH50-F6-30
                                                M10 x 50mm for AGH50-F6-40
                                                M10 x 50mm for AGH50-F6-50
       5. Spacer (H): 20mm, 30mm, 40mm or 50mm
       6. Removable Back Fixing Plate: 17mm deep, threaded, slot size: 20 x 10mm
       T: Thickness of glass:   12.76mm - 17.52mm for AGH50-F6-20
                                               12.76mm - 21.52mm for AGH50-F6-30
                                                                                                                                      8.00mm - 25.52mm for AGH50-F6-40
                                                                                                                                      8.00mm - 25.52mm for AGH50-F6-50

    Material: Stainless Steel SUS316 (to suit internal or external application)
    Finish: Satin Finish
    Hole Drilling in glass: Ø26 - 28 mm
