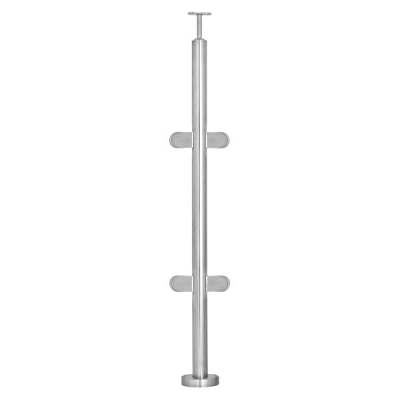

180 Degree Middle Post

£90.00
(Exc. 20% VAT)
£110.00
(£108.00 Inc. VAT)
Tube Diameter
Stainless Steel Grade
+
Item Code
PST-MP4-424N
Overview

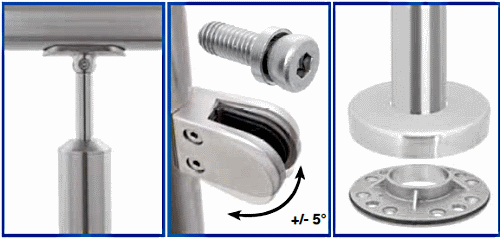

Fully assembled Stainless Steel Baluster posts - Middle Post supplied with Flange, Base Cover,  Adjustable Saddle and D-shaped Glass Clamps:

304 or 316 grade Stainless Steel in Satin Finish

Ø42.4 or 48.3mm post

Suitable for 10mm glass (rubber gaskets for clamps suits 8mm and 12mm glass available)

Supplied complete with Post x 1, Flange x 1, Base Cover x 1, Saddle x1 and D-shaped 10mm Glass Clamps x 4

If no handrail on top preferred, the top
saddle can be replaced with a Flat End Cap*.

 >>>>>>



End Cap


* Please make sure it complies with building regulations.


Click here to get your FREE QUOTE & DRAWING FOR YOUR DIY GLASS BALUSTRADING PROJECTS

Specification
 Material:  Stainless Steel SUS304 or SUS316*
 Finish:  Satin Brushed Finish
 Glass Thickness:  10 mm

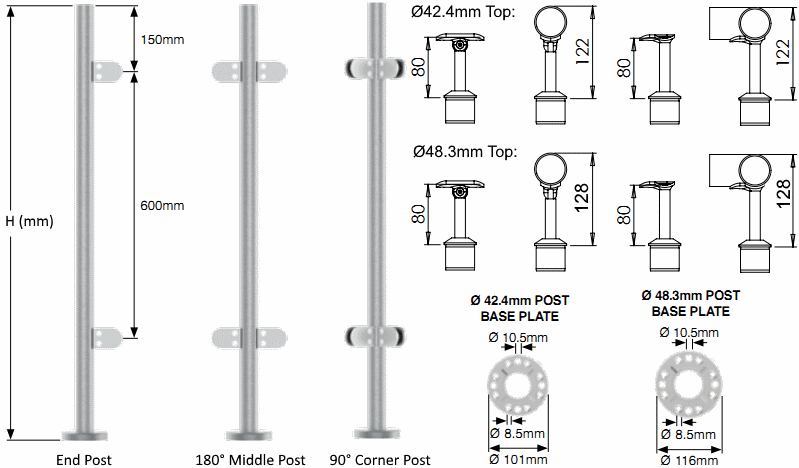

Ø42.4mm Posts H = 978mm    Ø48.3mm Posts H = 972mm

* SUS304 grade Stainless Steel suits internal use; With increased corrosion resistance, the SUS316 grade Stainless Steel can be used for both interior and exterior and is better suited for coastal or more heavily polluted environments.

Please Note: All descriptions, specifications, diagrams, illustrations and dimensions given are approximate and intended for general guidance purposes only. They may be subject to change without prior notice. We make all reasonable efforts to ensure that the contents of this site are accurate and up-to-date, but can accept no responsibility for omissions, errors or subsequent changes.

Handrails & Posts Configurator

Create Your Own Desgin
Provide us with your project details, we'll send you detailed quote and drawing for FREE!


Please click above picture to start your selections!
