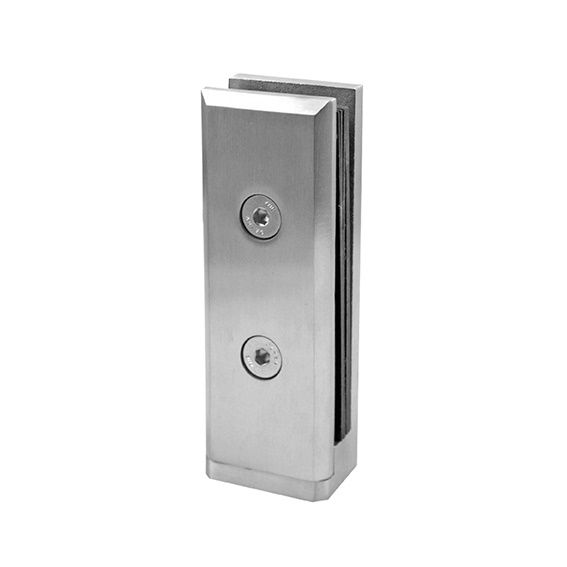

Material: Stainless Steel 316 grade
Finish: Satin Finish (brushed)
Mounting: Side Mounting (Ø8mm hole x 2 on the fixing plate)

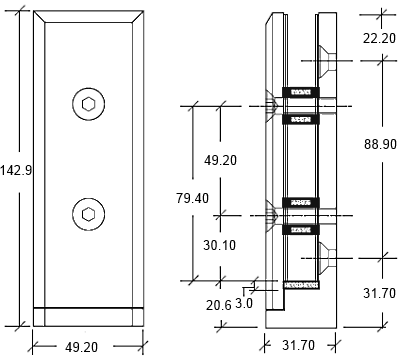

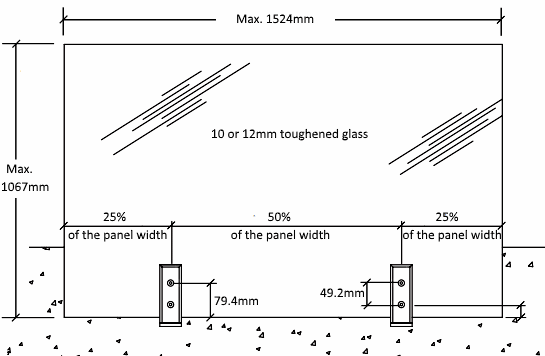

Model A: SPG-143S-SM Suits 10 or 12mm glass.


********************************************************************************
Model B: SPG-142S-SM suits 8 - 13.52mm glass

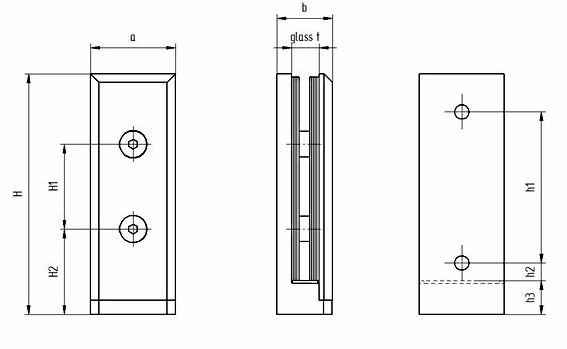

a = 50, b = 32, H = 142, H1 = 50, H2 = 50, h1 = 89, h2 = 12.5, h3 = 20, glass t = 8 - 13.52mm
Please Note:
1. All specifications are for reference purposes only and are subject to change without prior notice. Dimensions for guide only. Component may vary slightly from the sizes shown.
2. Due to the number of varying mounting conditions, fixing screws are not supplied.
3. For outdoor applications please review local wind load requirements and building regulations before installation.

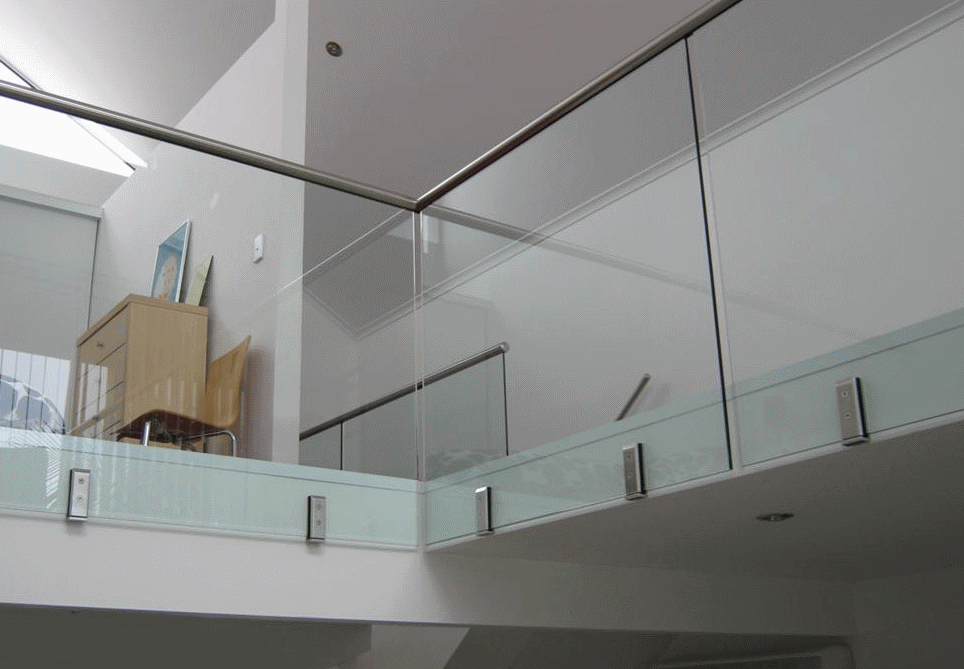

4. Handrail might needed for balustrade applications, please review building regulations before installation.
