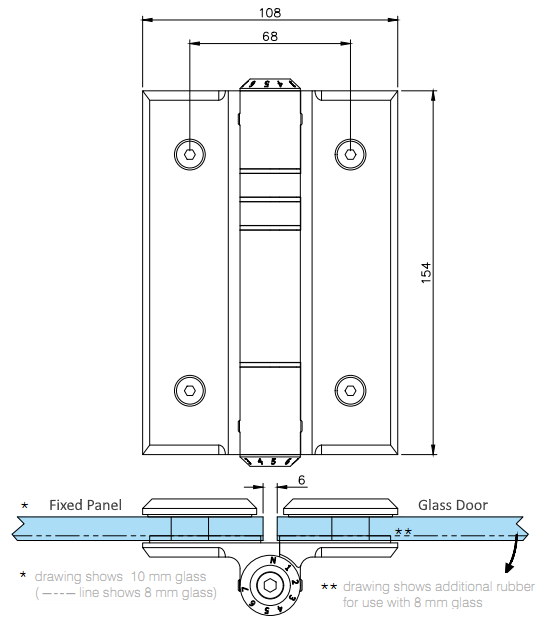

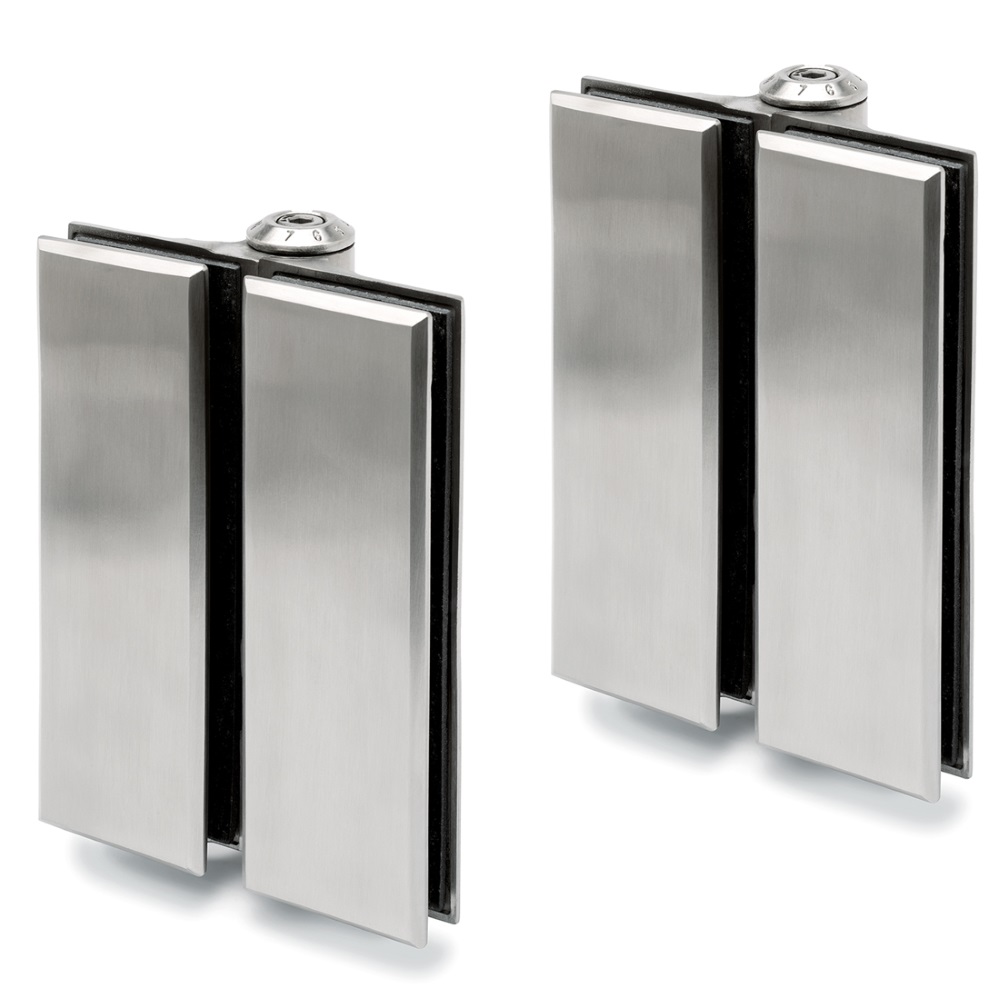

Combined with self-closing fuction, this Heavy Duty Hydraulic Hinge set has a slim-line profile, has minimum hardware appearance but make door opening & closing easier. It is produced from high quanlity stainless steel (AISI 304 / V2A), it can be used for glass door with thickness 8mm - 1.76mm. ideal for toughened glass or laminated glass door.
■ Available in Satin Stainless Steel Finish
■ For 8mm - 12.76mm glass door
■ Max. Door Weight: 75kg, Max Door Width: 1200mm
■ Can be used for both Left-handled and Right-handed Door, open outwards ONLY
■ Optional Hold -Open Function: holed-open at 90 degree (can be switch on or off)
■ Self-closing: Yes, closing speed adjustable
■ Adjustable Zero Position: Yes

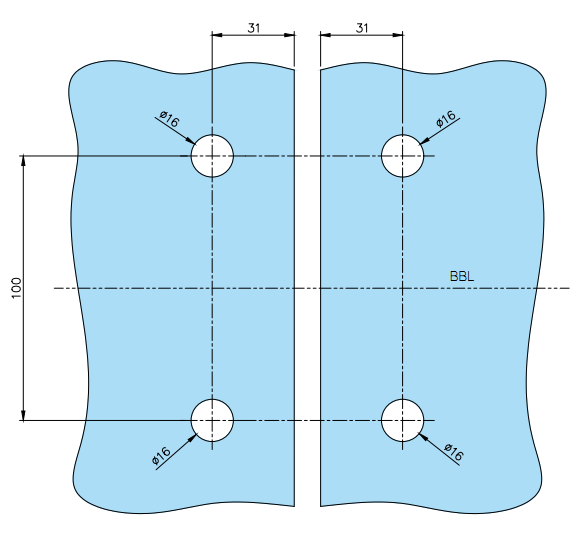

■ Glass Fabrication: 2x Ø16mm holes required for glass installation.
■ Supplied as a set (pair of hinges)
|Recommended measures *DIN 18268 |
|Glass Door Height ||Distance: frame rebate - BBL(A) ||Distance: BBL(A) - BBL(B) |
|1860 -2110mm ||241 + 1mm ||1435 mm ±0,5 mm |
|2111 - 2235mm ||241 + 1mm ||1560 mm ±0,5 mm |
|2236 - 2360mm ||241 + 1mm ||1685 mm ±0,5 mm |
Supplied with Full Installation Instruction.Please Note: All specifications are for reference purposes only and are subject to change without prior notice.
