Hydraulic Glass Door Hinge (Soft Closing)
Hydraulic Glass Door Hinge (Soft Closing)

Hydraulic Glass Door Hinge (Soft Closing)

(Exc. 20% VAT)
(£218.40 Inc. VAT)
Wall Mount
Glass Mount
Satin Stainless Steel Effect
Polished Chrome
Item Code

   Tested to EN 1154

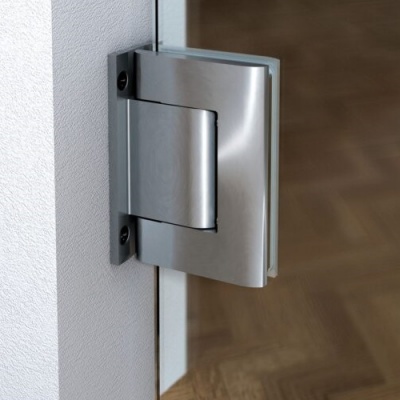

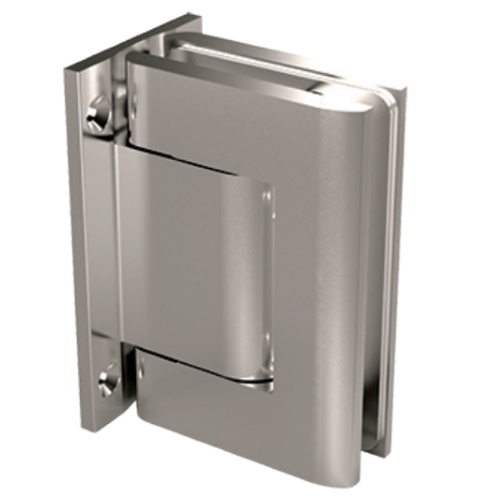

Made from high quality stainless steel, this soft-closing series of professional hydraulic hinges are able to accommodate 8mm - 13.52mm glass doors. A choice of two finishes: Satin Stainless Steel Effect or Chrome Polished Finish. Designed for interior glass doors (e.g. office glass door). A great alternative to floor spring and patch fittings.

Material: Aluminium Construction

Finish: Satin Stainless Steel Effect or Chrome Polished Finish

For self-closing glass door 8mm - 13.52mm

Open inwards and outwards 90 Degree*: hold -open at 90 degree (Non Hold Open Models Available upon request)

Max. CapacitieS: Door Width: 700 - 1000mm, Door Weight: wall mounted hinge 100kg, glass mounted hinge 80kg.

Self Closing from 0° to 80°, closing speed adjustable

Tested according to EN1154: for 1.000.000 cycles.

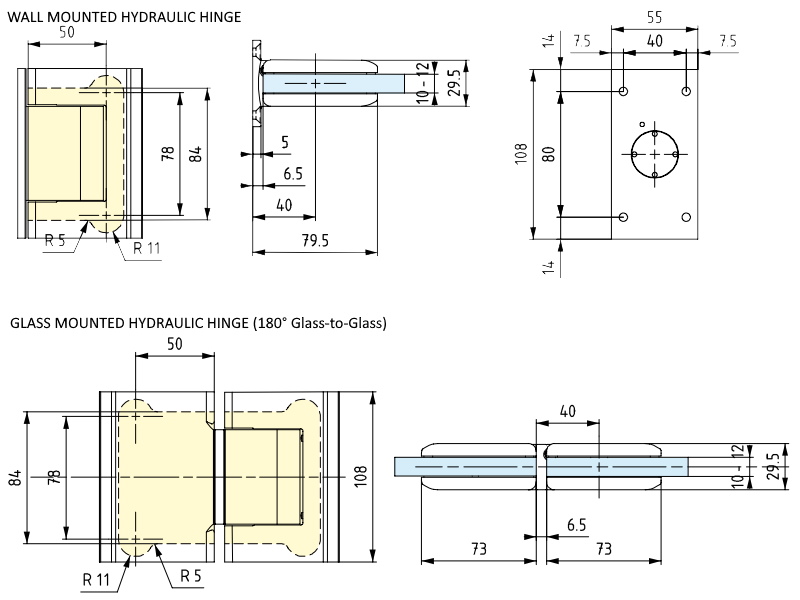

Glass Cut-out required

Pleate Note:

1. Do not use more than two hinges on one door. Not suitable for exterior and outdoor use.

2. Light Version avaiable for doors with width less than 500mm.

3. *Violent Opening further than 95° could unhinge the door. We suggest to install a door stop.




Please Note: All specifications are for reference purposes only and are subject to change without prior notice.
