Hydraulic Patch Fitting Set

Hydraulic Patch Fitting Set
Unit Price:  £150.00(Exc. 20% VAT)(£180.00 Inc. VAT)

Item Code:  HPF203



In Stock, Express Delivery

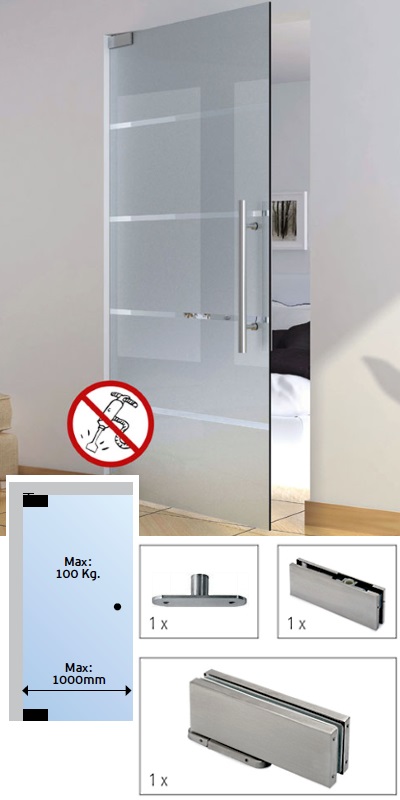

Hydraulic Patch Fitting set includes Bottom Door Patch with matching Upper Patch and Top Pivot for frameless glass door. This new design handy set is tested in accordance with DIN EN1154 European standards for durability and excellent functionality. Its unique built-in hydraulic system does not need a floor box, which eliminate the need to dig the floor and cement a floor box. No Floor Spring Needed!

Satin Stainless Steel and  Zinc & Alu Alloy

Glass Specification: 10 - 13mm toughened glass (cut-out required)

Complete set supplied: incl. Hydraulic Bottom Patch, Upper Patch and Top Pivot

Quick and easy installation: recess in the floor not required.

Adjustable closing and braking speed in two ranges

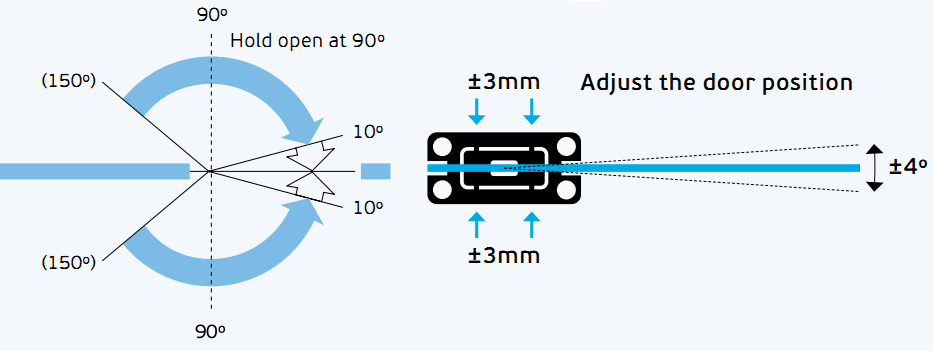

Maximum opening 150° and hold open 90°

3-way adjustment: ± 3mm to the front and rear / ± 3mm left and right / ± 4° alignment adjustment

Door weight: max. 100kg; Door height: max. 2500mm (12mm glass); Door width: max. 1000mm

Tested in accordance with DIN EN1154 European standards for durability and excellent functionality.

Please click the Illustration Tab to see an example Glass Door Assembly.

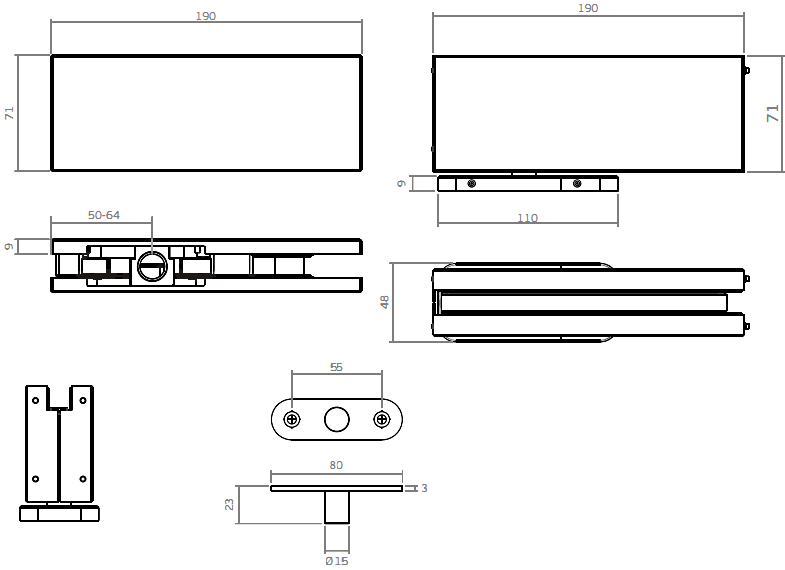

Please Note: all dimensions, cut-out drawings should be treated as indicative, as manufacturer may, from time to time, make alterations to their original design without prior notice. Please use the Installation manual supplied with product for accurate information.

You can choose optional glass door handle from this page; for optional glass door locks & latches, please click here.
