Articulated Point Fixing Bolt (16-25mm)

180° Two-Arm Fin Spiders Fittings£42.00
Item Code: FIN-S2

Four-Arm Fin Spiders Fittings£60.00
Item Code: FIN-S4

180° Two-Arm Spiders Fittings£18.80
Item Code: KH200-2

Four-Arm Spider Fittings£30.00
Item Code: KH200-4

One-Arm (Long) Spiders Fittings£13.50
Item Code: KH200-1L

One-Arm Spiders Fittings£12.00
Item Code: KH200-1

Zoom

Unit Price: £21.50(Exc. 20% VAT)(£25.80 Inc. VAT)

–+

Item Code: KH-ST01

Availability:

10 in stock, immediate despatch

Description
Specifications

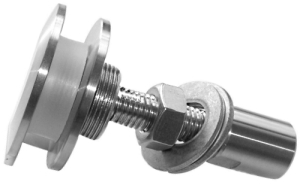

Heavy duty Stainless Steel Articulated Bolt (Cap Head Style with removable back disc), allows for a secure attachment and minimize the deflection of the glass panels. Ideal for Single Glazing assembly.

■ 316 grade Stainless Steel, suits Interior and Exterior Use
■ Satin Stainless Steel Finish
■ Suits 16 - 25mm glass panel.
■ To be used with our KH200 and KL200 series Spider Fittings (NOT suitable for our FIN spiders)

Material: Stainless Steel SUS316*
Finish: Satin Brushed Finish
Glass Thickness: T = 16 - 25mm
Type: Cap Head Style Articulated Bolt with removable back disc.
Loading Data: Axial Load Capability: 6000 N; Radial Load Capability: 2000 N

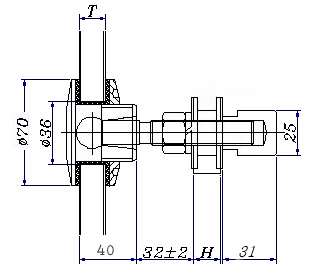

Point Fixing Bolts KH-ST01
M16 Threaded Stud (not suitable for our Fin Spider Fittings)

* SUS304 grade Stainless Steel suits internal use; With increased corrosion resistance, the SUS316 grade Stainless Steel can be used for both interior and exterior and is better suited for coastal or more heavily polluted environments.

Please Note: All descriptions, specifications, diagrams, illustrations and dimensions given are approximate and intended for general guidance purposes only. They may be subject to change without prior notice. We make all reasonable efforts to ensure that the contents of this site are accurate and up-to-date, but can accept no responsibility for omissions, errors or subsequent changes.
