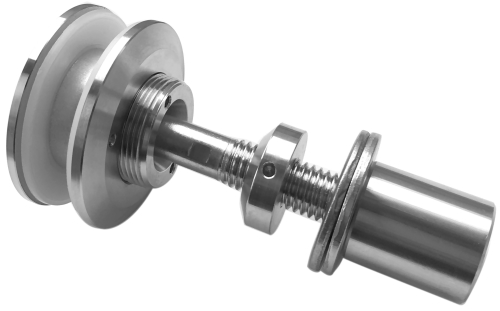

Flat Head Articulated Bolt for 15 -19mm Glass

£16.65
(Exc. 20% VAT)
(£19.98 Inc. VAT)
No stock, discontinued
+
Item Code
KH-ST03


Overview

Stainless Steel Flat Head Articulated Bolt, used to attach glass panel to spider fittings, allows for a secure attachment and minimize the deflection of the glass panels. Ideal for Single Glazing (15-19mm) assembly.

316 grade Stainless Steel, suits Interior and Exterior Use

Satin Stainless Steel Finish

Suits glass curtain wall or glass canopy assembly.

Adjustable for 15 - 19mm glass panel.

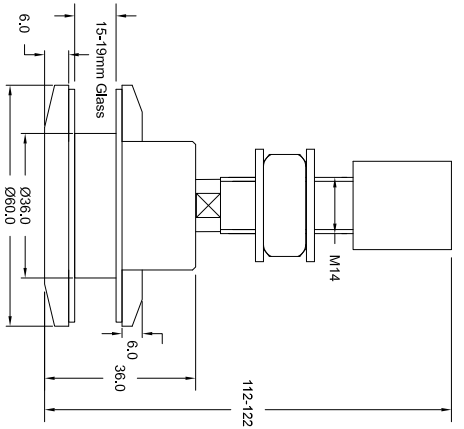

Specification

Material: Stainless Steel SUS316*

Finish:  Satin Brushed Finish

Glass Thickness: 15 - 19mm

Loading Data:  Axial Load Capability: 6000 N; Radial Load Capability: 2500 N

* SUS304 grade Stainless Steel suits internal use; With increased corrosion resistance, the SUS316 grade Stainless Steel can be used for both interior and exterior and is better suited for coastal or more heavily polluted environments.

Please Note: All descriptions, specifications, diagrams, illustrations and dimensions given are approximate and intended for general guidance purposes only. They may be subject to change without prior notice. We make all reasonable efforts to ensure that the contents of this site are accurate and up-to-date, but can accept no responsibility for omissions, errors or subsequent changes.

Also Bought
180 Two-Arm Spiders Fittings

Item Code: KH200-2

One-Arm Spiders Fittings

Item Code: KH200-1

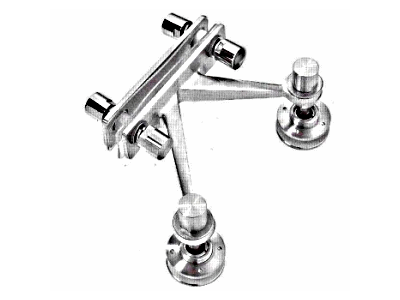

90 Two-Arm Fin Spiders Fittings

Item Code: FIN-S2V

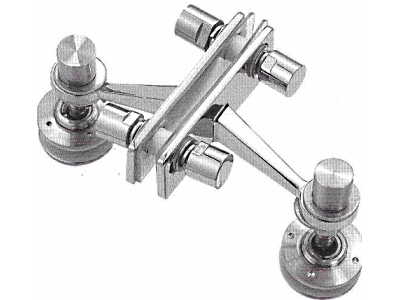

180 Two-Arm Fin Spiders Fittings
