■ Finish available: Grey, Black, White.

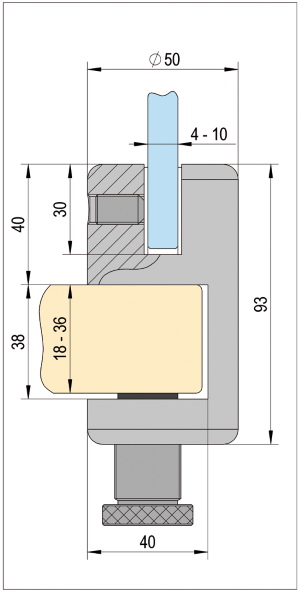

■ For Glass Panel or Acrylic Sheet / Perspex / Plexiglas with thickness 4 - 10mm
■ No hole needed in glass / acrylic
Recommended Max. panel size: 1000mm x 1000mm. This is guideline only, the choice of material and the size of the panes must be determined from installer and/or user in accordance to the intended use and location. Sufficient stability must be ensured at all times. If necessary, several clamps are to be used or additional safety precautions have to be taken. Use for indoors applications only, avoid drafts.
When using glass, it must be ensured that it is always thermally toughened (fully tempered glass or laminated glass out of fully tempered glass).
If glass is used, it must be ensured that permanent direct metal-glass contact is avoided at all costs.
The use of polycarbonate or acrylic sheets is recommended, especially in places with increased public traffic and limited standing space, if the product cannot be adequately secured against accidental tilting or toppling.
Please Note: ensure that the panels to which the clamps are attached are sufficiently strong and rigid.
