Shower U-Channels with Insert for 8 or 10mm Glass
Shower U-Channels with Insert for 8 or 10mm Glass
Shower U-Channels with Insert for 8 or 10mm Glass
Shower U-Channels with Insert for 8 or 10mm Glass

Shower U-Channels with Insert for 8 or 10mm Glass

(Exc. 20% VAT)
(£44.40 Inc. VAT)
(3 Reviews)
Item Code

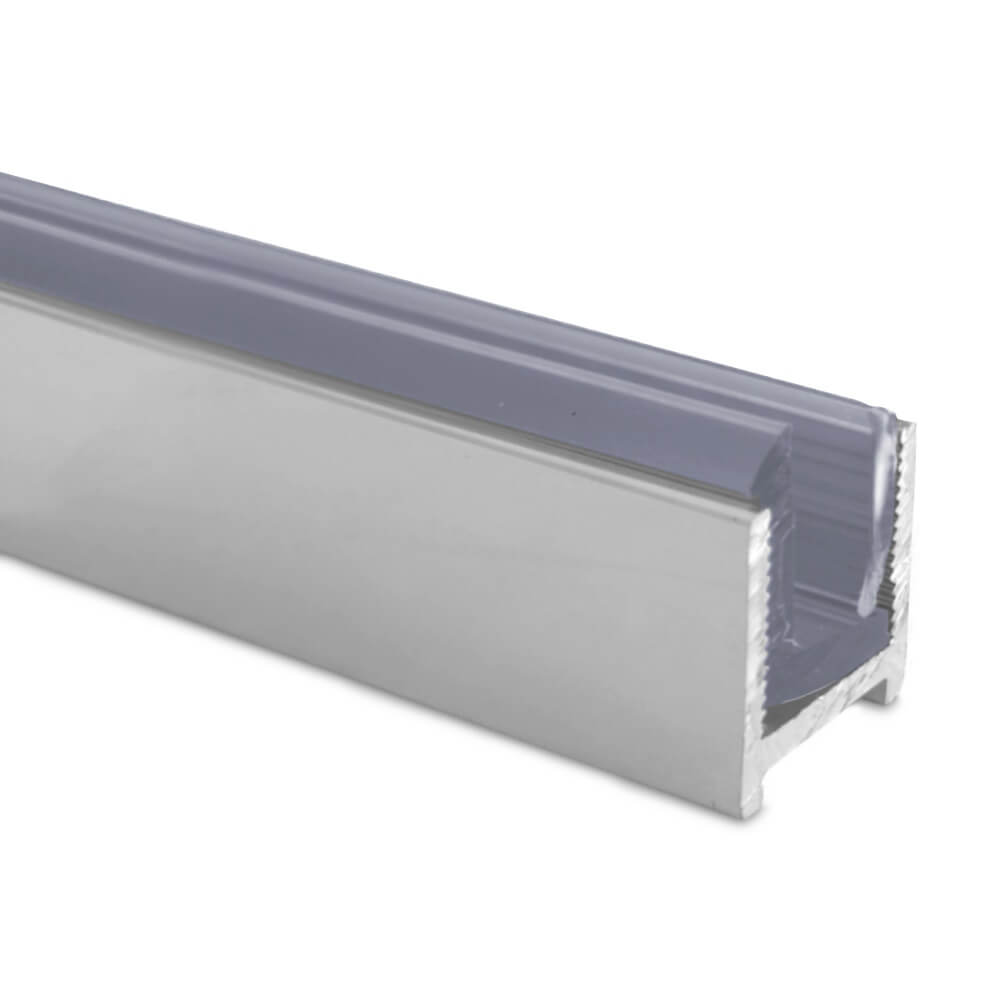

Aluminium Shower U-Channels supplied with insert (PVC gaskets) to hold the shower screen in place.

No silicone needed - Neat Finish, Time Saving.

  • Material: Extruded Aluminium Anodised
  • Finish: Bright Polished, Brushed Nickel or Matt Black
  • Glass Thickness: suits 8mm or 10mm glass

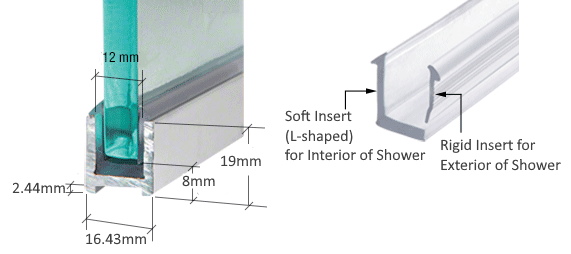

  • Dimensions: W 16.43mm x D 19.00mm x L 2410mm
  • Fitting Type: E-Z Fitting ( no silicone needed to secure glass within channel)
Fitting Instructions

Parts Supplied in Your Package:

 Shower U-channel (undrilled) with Insert (SUC08, SUC10)  QTY
 A. Aluminium U-channel (2410mm)


 D. Soft Gasket (L-sahped)


 E. Rigid Insert

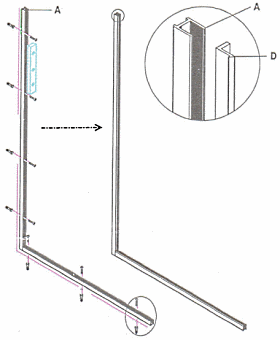

Please Note: Countersunk holes are recommended to be drilled at the bottom of the channels. Make sure that the screws and wall plugs (not supplied) being used are suitable for supporting your channels. Consult a qualified tradesperson if you are unsure.

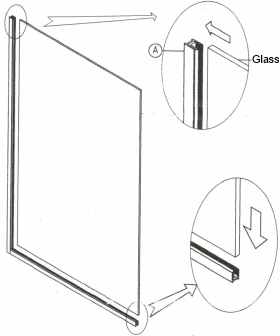

The Soft Gasket (D) goes on the interior of the shower

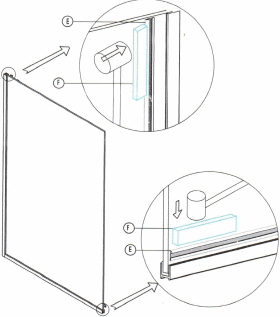

Fit the Rigid Insert (E) to the exterior of the shower by tapping it with the 'Installation Piece'* using a soft faced hammer (i.e. Rubber Mallet).
* A square Setting Block can be used as 'Installation Piece'

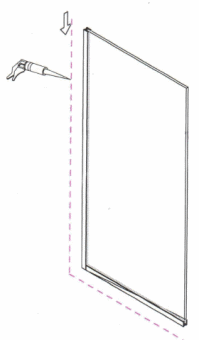

Apply clear silicone to the outside of the glass channel.


Delivery and Return

Shipping Time: usually within 24 hours depending on availability of stock*

This item is delivered in long length or irregular shape, which is considered oversize weight to courier companies. Therefore delivery costs start from £10 (ex. VAT) for items less than 1000mm with total order weight up to 10kg; £20.00 (ex. VAT) for items over 1000mm with total order weight up to 10kg.

Delivery Procedure:

Your parcels will require a signature upon delivery. Please kindly ensure that there will be someone to sign for the parcel at the delivery address. If you are out you will be carded, please read the instructions on the card. After the very first attempt, you also have the option to collect the parcels from your local depot of the couriers.


The cut-off time for next working day deliveries is 12:30 Monday to Friday (excluding Bank Holiday). Please Note: We rely on a third party (our couriers), therefore we are unable to guarantee delivery services. However, over 98.5% of deliveries are achieved on time.


14 DAYS MONEY BACK GUARANTEE*: we at Kerol Hardware want you to be delighted with your purchase. Our aim is your total 100% satisfaction before and after you order. In the unlikely event should you wish to return an item(s), we offer you gladly 14 calendar days from delivery date in which to decide to keep your ordered item(s) or return it/them. *Terms & Conditions apply, please click here for details.

More info >  Detailed Delivery Information can be found here. Detailed Return Policy can be found here.

Customer Reviews (3)
Write a Review and share your opinions!
3 Reviews:

on time
06 May 2024  |

These products are of good quality at a reasonable price and a great delivery time

Was this helpful to you?  Yes  /  No

Shower I channels with inserts
20 January 2024  |

Hi there,

I purchased three lengths of this recently and I am very pleased with the quality, look and ease of fitting.

However, you might like to add to your instructions that to get a perfect length to fit end caps it is best to slightly overcut the channels and fit first and then dismantle and cut to a marked length once the glass has been temporarily placed in the channel. Reason being that whilst the U channel is made to take up a wall to tray angle that is not exactly 90 degrees, if they are slightly out of true and worse if the angle is less than 90 degrees it is impossible to judge where the glass will end up in the channel.





Thank you for your recent purchase and positive feedback on the quality and ease of fitting our product. We appreciate your suggestion to improve the instructions.

Your tip about slightly overcutting the channels for a perfect fit with end caps is excellent. We've published it here for the benefit of other customers.

Shower profile
23 December 2023  |

Top class. Nice and slim modern look easy to fit. Perfect job.

Was this helpful to you?  Yes  /  No
