Home > Glass Clamps > Flat Base Glass Clamps
(Details shown apply to the default selection)
Item Code: GC-742F4-S10
Availability:
In Stock: please allow 2 - 5 working days for delivery

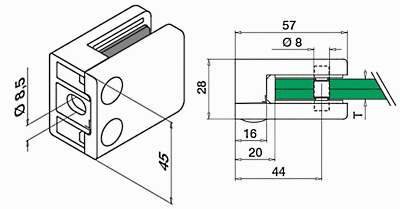

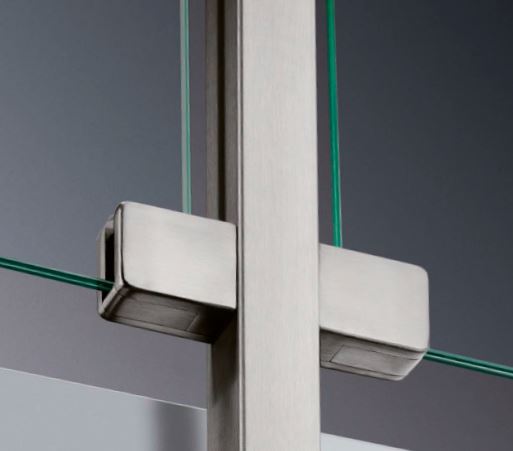

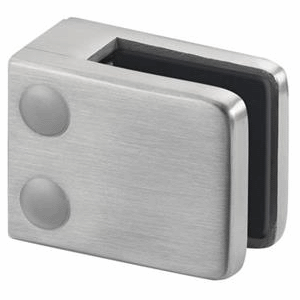

This rectangular shaped balustrade clamp is extremely versatile and cost effective. Accommodates glass thickness between 6mm, 6.76mm, 8mm, 8.38mm, 8.76mm, 9.52mm, 10mm, 10.76mm, 11.52mm, 12mm and 12.76mm.
■ High quality Stainless Steel: 304 grade for indoor application, 316 grade suits indoor & outdoor project
■ Satin or Mirror Polished Finish
■ For glass thickness: 6.0mm - 12.76mm
■ EN 12600 certified

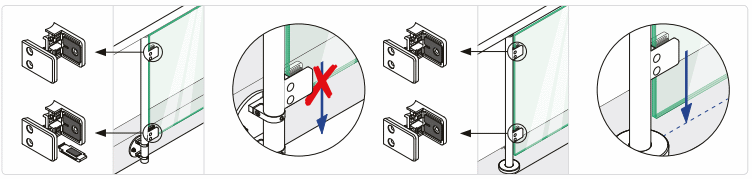

■ Supplied with Metal Security Plate (removable) to stop glass sliding down. Optional Security Pin* sold separately.
* Security Pin (available here) is to give glass extra support and stop the glass sliding down. Drilling hole in glass is required if the pin used.
EN-12600 Performance Test Table (Surface Mounted) :

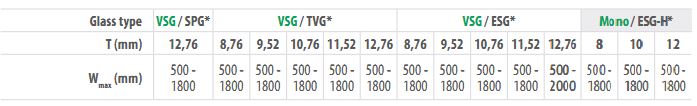

INDOOR APPLICATION: Glass clamps used indoor without security pin & security plate.

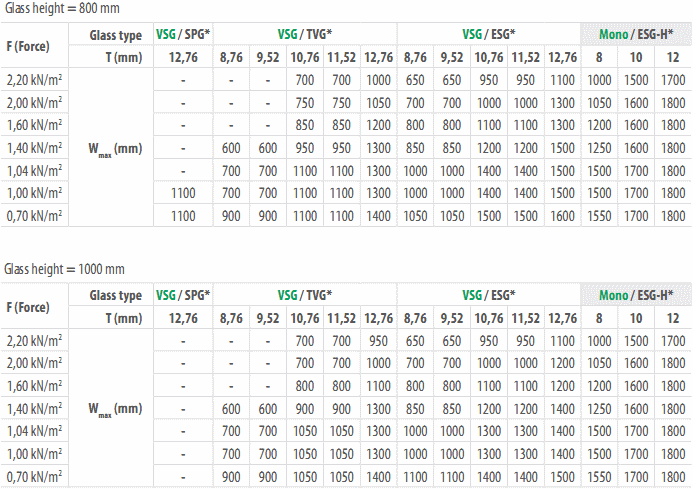

OUTDOOR APPLICATION:Possible glass widths for outdoor use depending on wind factor, glass type and glass thickness without security pin & plate^.
^ For safety reason, we suggest the Security Pin (code: GCP-312F, sold separately) to be used when the glass panel is fixed to the outside of a staircase and overhanging.Please Note: All descriptions, specifications, diagrams, illustrations and dimensions given are approximate and intended for general guidance purposes only. They may be subject to change without prior notice. We make all reasonable efforts to ensure that the contents of this site are accurate and up-to-date, but can accept no responsibility for omissions, errors or subsequent changes.
This item can be delivered to all addresses within the UK and Northern Ireland (unless otherwise stated) as well as Channel Islands, Isle of Man, Isles of Scilly, Orkney, Shetland and Western Scottish Islands. We may be able to deliver to the Republic of Ireland or other selected EU countries.
The cut-off time for next working day deliveries is 15:00 Monday to Friday (excluding Bank Holiday). Please Note: We rely on a third party (our couriers), therefore we are unable to guarantee delivery services. However, over 98.5% of deliveries are achieved on time.
14 DAYS MONEY BACK GUARANTEE*: we at Kerol Hardware want you to be delighted with your purchase. Our aim is your total 100% satisfaction before and after you order. In the unlikely event should you wish to return an item(s), we offer you gladly 14 calendar days from delivery date in which to decide to keep your ordered item(s) or return it/them. *Terms & Conditions apply, please click here for details.
Cost of returning product(s) is based on your geographic location and the product(s) weight. Please refer the table below for the cost of returning via Parcel Force within the UK. Please note: surcharge applicable on items with certain length (1.50m+) and certain weight (30kg), please click here for details.
More info > Detailed Delivery Information can be found here. Detailed Return Policy can be found here.
