Juliet Balcony Profiles (H=1100mm) for Glass 12 - 21.52mm
Juliet Balcony Profiles (H=1100mm) for Glass 12 - 21.52mm
Juliet Balcony Profiles (H=1100mm) for Glass 12 - 21.52mm
Juliet Balcony Profiles (H=1100mm) for Glass 12 - 21.52mm

Juliet Balcony Profiles (H=1100mm) for Glass 12 - 21.52mm

£165.00
(Exc. 20% VAT)
(£198.00 Inc. VAT)
12mm
12.76mm
13.52mm
15mm
16.76mm
17.52mm
19mm
20.76mm
21.52mm
+
Item Code
QR-6923-14

Prices for hardware only. Please contact us for quote for glass panels.



Overview

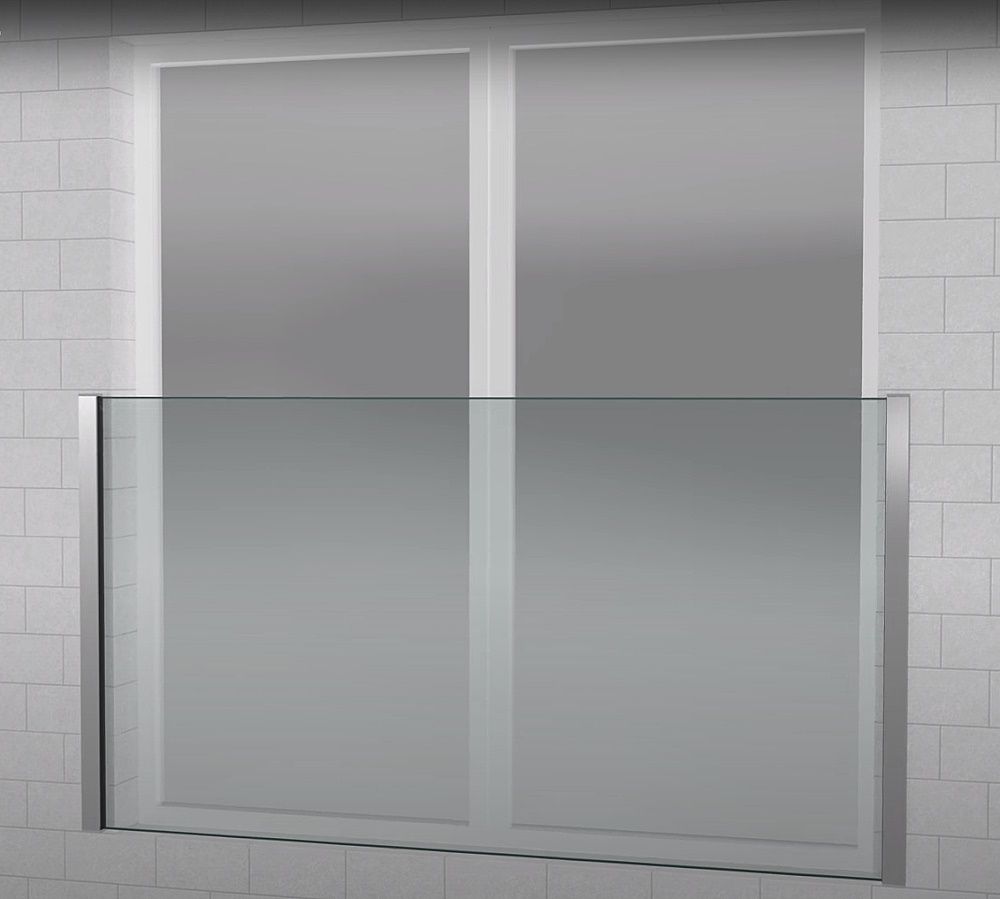

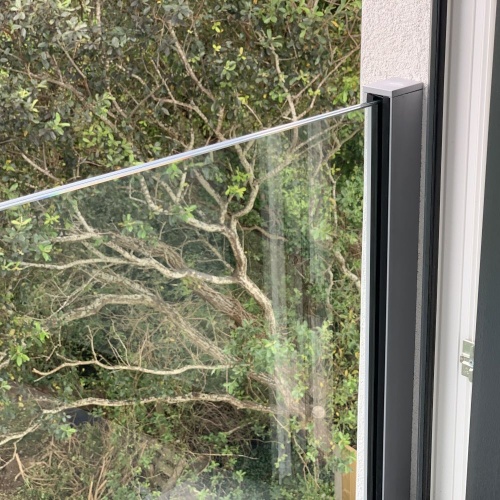

THE INVISIBLE JULIET BALCONY - A Juliet balcony with nothing to intrude on the view

You will hardly notice that the Juliet balcony is there! With a structure that consists of almost nothing but glass, This Juliet Balcony Profiles Kit provides unprecedented levels of transparency. In spite of this minimalist design, the sleek, vertically installed profiles will let you create Juliet balconies that span distances of up to 2,800 mm*.

  • Finish: Anodised (25µm) Aluminium in Matt Silver Effect finish, Black (RAL 9005), White (RAL 9016), Anthracite Grey (RAL 7016)**

  • Supplied with drainage channel

  • Suitable for glass thickness 12mm - 21.52mm*

  • Smart click system for easy clamping of the glass panels (glass fabrication not required). No special tool needed.

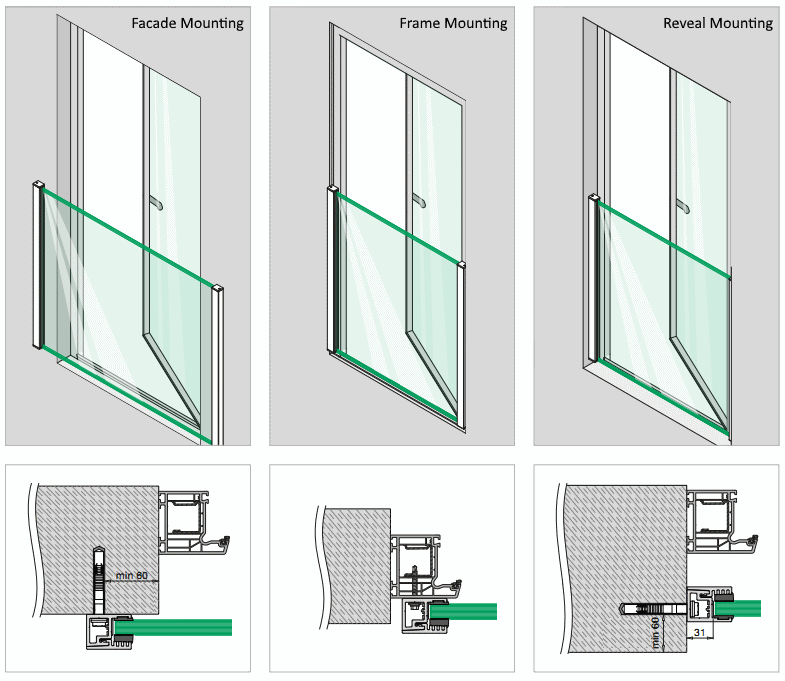

  • A 3-IN-1 solution: can be fixed to the door frame, a Facade or the reveal

  • Resists line loads up to 1 kN/m (with 16.76 mm thick glass)

  • Safe: certified according to BS 6180, suits private residences, apartment buildings and hotels (please see 'Specifications' for testing information).

  • The profiles can be cut to your specifications (prefix cutting of profiles on request, additional charges apply)

* To comply with Building Regulations, toughened laminated glass (Min. 13.52mm) are recommended, depending on the width of the glass. Generally speaking 13.52mm glass for glass width less than 1800mm; 1752mm glass for glass width between 1800 - 2500mm and 21.52mm glass for glass width 2500mm - 280mm. Please consult a structural engineer / local building control for approval on glass thickness and loadings.

** Other finish Options: Aluminium raw finish (can be powder coated to match the frame or façade colour), please provide RAL number for a quote.

~ Kit contains the following parts:

  • Left Profile x1, Right Profile x1
  • Top End Cap x2, Bottom End Cap x2
  • Cover Plug x 4
  • Your choice of rubber profiles




Specification

Summary of Testing

Standard: BS 6180:2011 CLAUSES 6.3.1 and 6.4.1 only

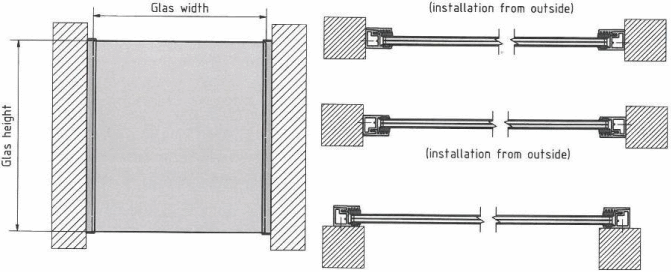

Testing Methods A single section of each size of barrier system was bolted to a metal structure with an “I” section measuring nominally 240mm x 240mm in accordance with the manufacturer’s instructions. The structure was, in turn, fixed to the concrete floor of the testing facility.


Tested with the following glass panels:
(A) 1800mm x 1100mm x 12.76mm two layer laminated toughened glass*
(B) 2000mm x 1100mm x 12.00mm monolithic toughened glass
(C) 2200mm x 1100mm x 16.76mm two layer laminated toughened glass**
(D) 2500mm x 1100mm x 15.00mm monolithic toughened glass
(E) 2500mm x 1100mm x 16.76mm two layer laminated toughened glass**
(F) 2500mm x 1100mm x 21.52mm four layer laminated toughened glass
(G) 3000mm x 1100mm x 21.52mm four layer laminated toughened glass

Notes:
*Also applicable to 13.52mm four layer laminated toughened glass
** Also applicable to 17.52mm four layer laminated toughened glass

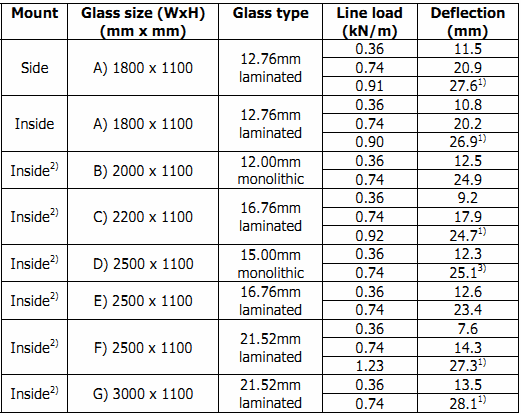

Horizontal Uniformly Distributed Line Loads

Notes:
1) Recorded for information
2) Also applicable to side mounted system
3) Marginal result

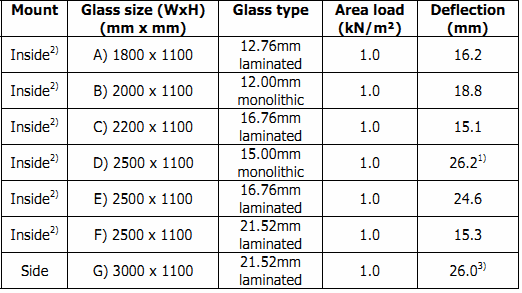

Uniformly Distributed Load Applied to the Infill

Notes:
1) Recorded for information
2) Also applicable to side mounted system
3) Calculated deflection by the manufacturer for information

Point Load Applied to Part of The Infill

Notes:
1) Calculated deflections by the manufacturer for information
2) Also applicable to side mounted system

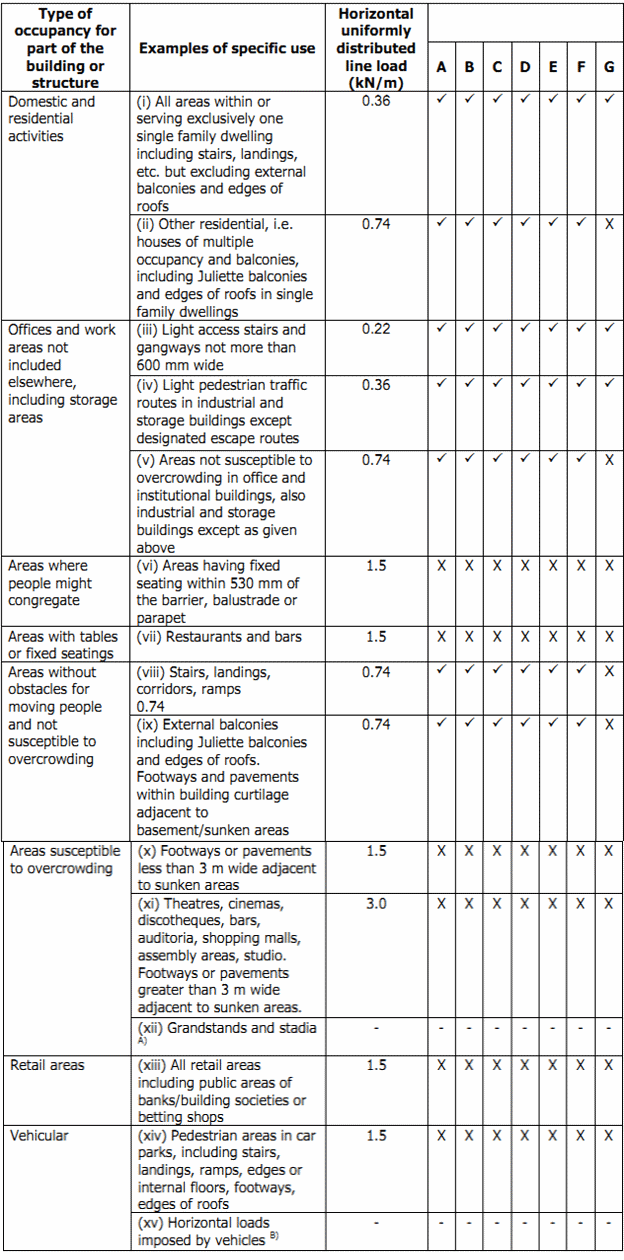

Summary of Suitability of Barrier Systems

Please note: The results contained herein apply only to the particular sample(s) tested and to the specific tests carried out, as detailed in this test summary. The issuing of this test summary does not indicate any measure of Approval, Certification, Supervision, Control or Surveillance by the supplier of any product. It is emphasized that assessments have not been made to the Standard.
The load capacity of this product greatly depends on the physical properties of the mounting substrate (e.g. the wall) as well as the choice of suitable mounting hardware. For frame mounting, then the frame needs to be structurally sound / reinforced.

Delivery and Return

Shipping Time: usually within 24 hours depending on availability of stock*

This item is delivered in long length or irregular shape, which is considered oversize weight to courier companies. Therefore delivery costs start from £10 (ex. VAT) for items less than 1000mm with total order weight up to 10kg; £20.00 (ex. VAT) for items over 1000mm with total order weight up to 10kg.

Delivery Procedure:

Your parcels will require a signature upon delivery. Please kindly ensure that there will be someone to sign for the parcel at the delivery address. If you are out you will be carded, please read the instructions on the card. After the very first attempt, you also have the option to collect the parcels from your local depot of the couriers.

Timescales:

The cut-off time for next working day deliveries is 12:30 Monday to Friday (excluding Bank Holiday). Please Note: We rely on a third party (our couriers), therefore we are unable to guarantee delivery services. However, over 98.5% of deliveries are achieved on time.

Return:

14 DAYS MONEY BACK GUARANTEE*: we at Kerol Hardware want you to be delighted with your purchase. Our aim is your total 100% satisfaction before and after you order. In the unlikely event should you wish to return an item(s), we offer you gladly 14 calendar days from delivery date in which to decide to keep your ordered item(s) or return it/them. *Terms & Conditions apply, please click here for details.

More info >  Detailed Delivery Information can be found here. Detailed Return Policy can be found here.

Customer Reviews (0)

Be the first to Write a Review for this item!

Also Bought

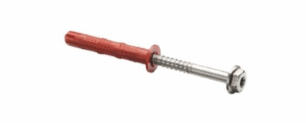

Fixings for Juliet Balcony Profiles
