Metal to Wood Thread Dowel  Screws
Metal to Wood Thread Dowel  Screws

Metal to Wood Thread Dowel Screws

(Exc. 20% VAT)
(£0.36 Inc. VAT)
Item Code
*Image shown may be of a different finish/size to the item supplied.

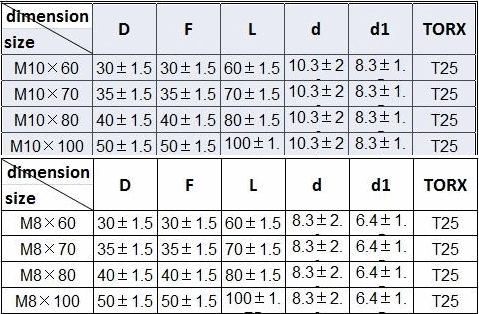

** M8 and M10 means thread size, length is overall length.

A Metal-to-Wood Connector Dowel Screw is needed in situations where a bolt through fix is not possible or not desired.

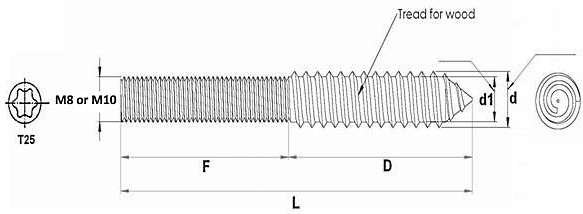

This Machine Thread to Wood Thread Dowel Screw is also called Hanger Bolt, half the fixing has a woodscrew thread which screws into wood, the other exposed half is a standard M8 or M10 metric thread that can accept the head cap of the Glass Adapter and Glass Holder.

Material Item code
 Self-coloured Steel  M8-60-SCS, M10-60-SCS
 Yellow Zinc Plated Steel  M8-70-YZP, M8-80-YZP, M8-100-YZP, M10-60-YZP, M10-70-YZP, M10-100-YZP
 Bright Zinc Plated Steel  M10-80-BZP
 Stainless Steel Grade 304  M8-50-SS4, M8-90-SS4

Please note: length varies, please make sure the dowel screw is long enough for the fittings you use.
1. The M8-50-SS4 and M8-90-SS4 do NOT need this Inserting Tool, as they have a a Hex Socket End for easy turning by Allen Key.

2. These Dowel Screws are not suitable for GSB30-F6, GSB40-F6 or GSB50-F4 Stand-off Bracket.

3. This metal to wood dowel screw doesn't fit  Ø40mm Glass Adaptor with Flat Back (GA40-F6).

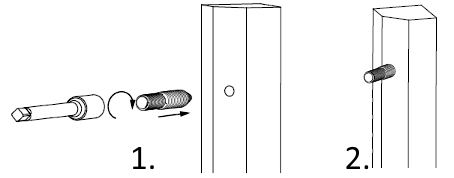

To help you to insert the dowel screw into the wood, we have the optional Inserting Tool available here.

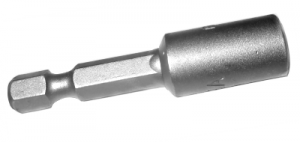

Hanger Bolt Insert Tool

Please Note: All descriptions, specifications, diagrams, illustrations and dimensions given are approximate and intended for general guidance purposes only. They may be subject to change without prior notice. We make all reasonable efforts to ensure that the contents of this site are accurate and up-to-date, but can accept no responsibility for omissions, errors or subsequent changes.
