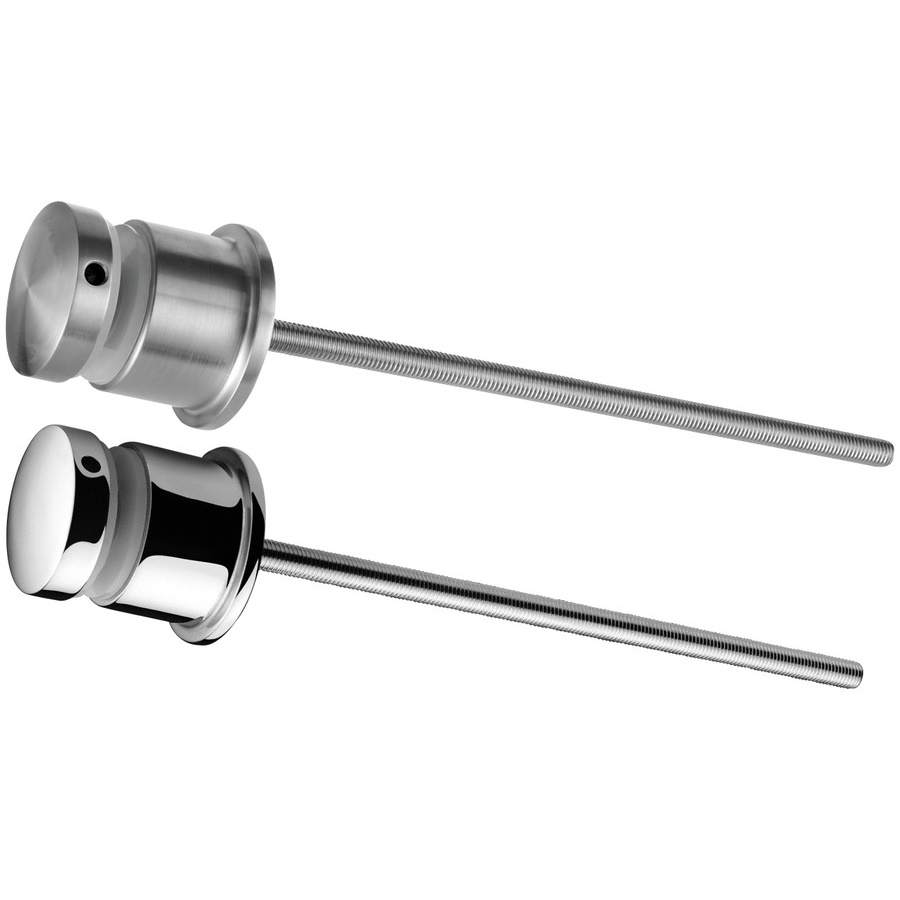

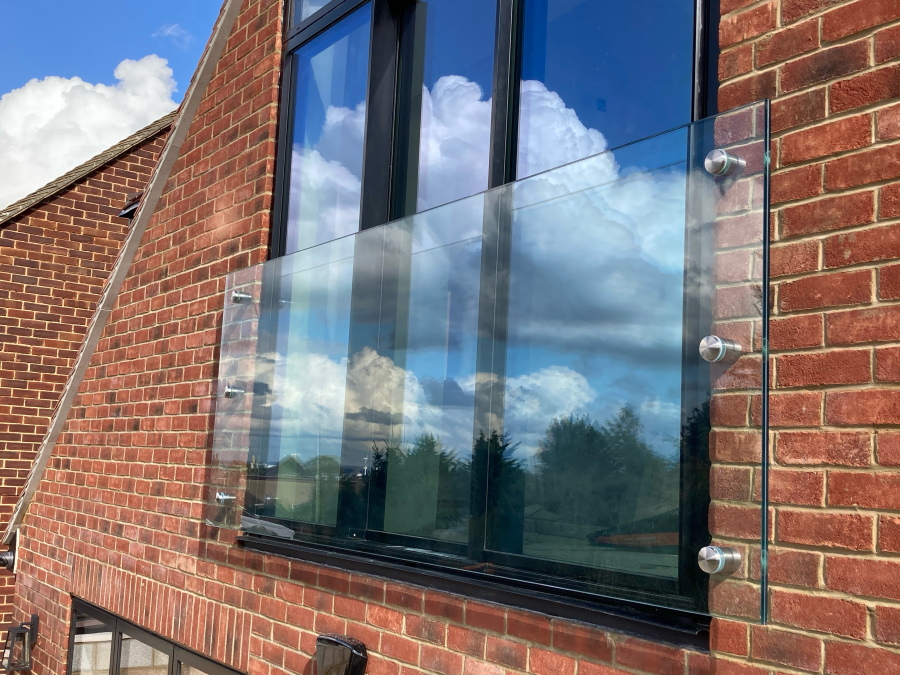

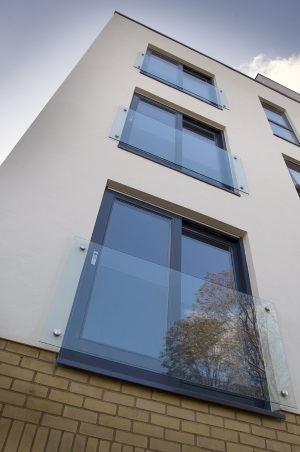

Material: Stainless Steel SUS316
Finish: Satin Brushed Finish
Glass Thickness: 8 - 18mm
Hole Drilling: Ø26 - 28 mm


Line Load Test:
Glass dimensions: H 1000mm x W 2000mm x T 17.52mm
Fixing Position: Centre to Centre 1700mm
Test Arrangment: The speciments were mounted onto a steel structure with a test rig from steel with sufficient strength to withstand loads applied to it. During the test, load was applied to the top of the glass and was measured with a load cell. Mechanical indicatiors were used to measure the deflection of the barrier from its neutral position.
Deflection mm. | Assembly |
Point load | Line load | infil UDL |  |
0.5kN | 0.74 1.00 | 1 kN/m2 |
Deflection |
2.40 | 6.25 8.50 | 6.20 |
Comments: the line load was applied to the top of the glass (=1.0m). A line load and a point load were tested for the glass, of the Juliette Balcony.
