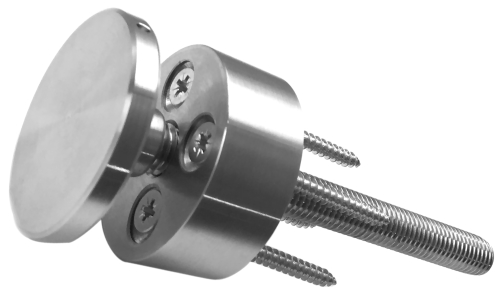

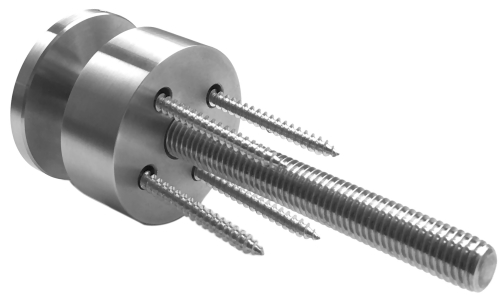

This 50mm diameter Stainless Steel Standoff is a unique design that is very user-friendly. Traditionally glass adapters only come with machine thread for steelwork mounting but it can be an issue if the glass needs to be finxed onto the side of a timber tread on a staircase. This problem has been solved by the cration of this 50mm diameter Stainless Steel Standoff, which has a spacer can accept self-tapping screws for timber mouting.
■ 316 Grade Stainless Steel in Satin Brushed finish, can be used indoor or outdoor
■ Suitable for Glass, Perspex, Acrylic Panels, Marble or Granite from 8mm

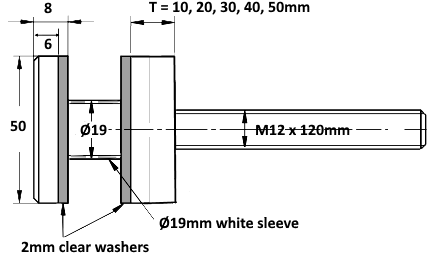

■ Dimensions: Front Disc Ø50mm (6mm thick), Standoff Spacer available:10mm, 20mm, 30mm, 40mm and 50mm

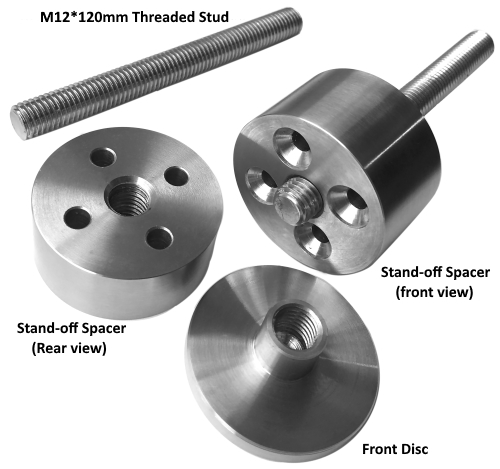

■ Spacer is solid and has M12 threaded hole x 1 and 6mm holes x 4 for self-tapping screws
■ Supplied with clear washers (2mm thick) & sleeve (white) x 2
■ M12 x 120mm threaded rod (can be removed and replaced by longer rod if required)
* Self-tapping screws supplied by others.
1. Due to the diversified variety of applications, weight limitations are dependent on wall or substrate anchoring.
2. *Spanner Wrench for Round Glass Adapter (GDP-SW-50) is NOT suitable for this product.
