Curved Clamping Connector

(Exc. 20% VAT)
(£31.20 Inc. VAT)
90 Corner
135 Angle
180 In-line
Item Code
Using thicker glass? No problem, we have 90° Corner and 180° In-line Double Clamps available for 16.76mm, 17.52mm, 20.76mm and 21.52mm glass thickness. Please click here for details...

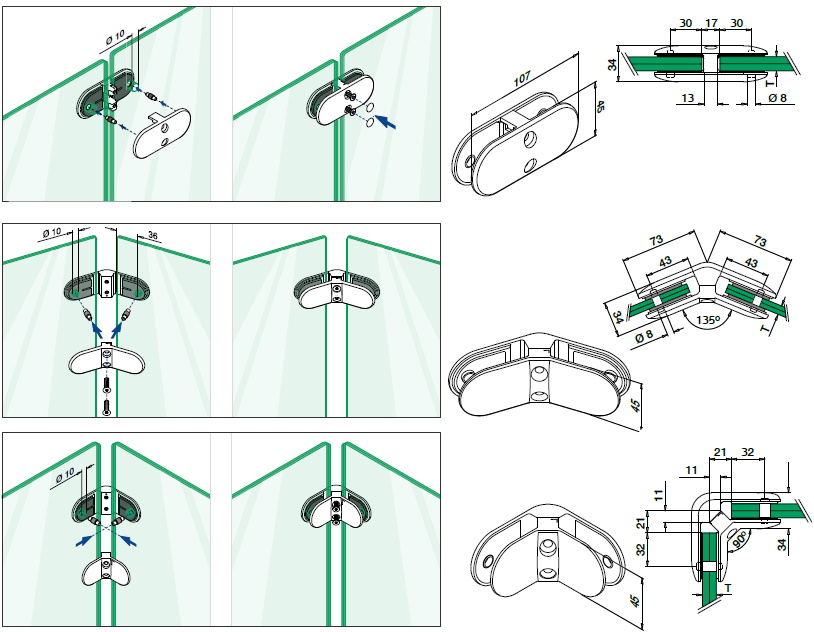

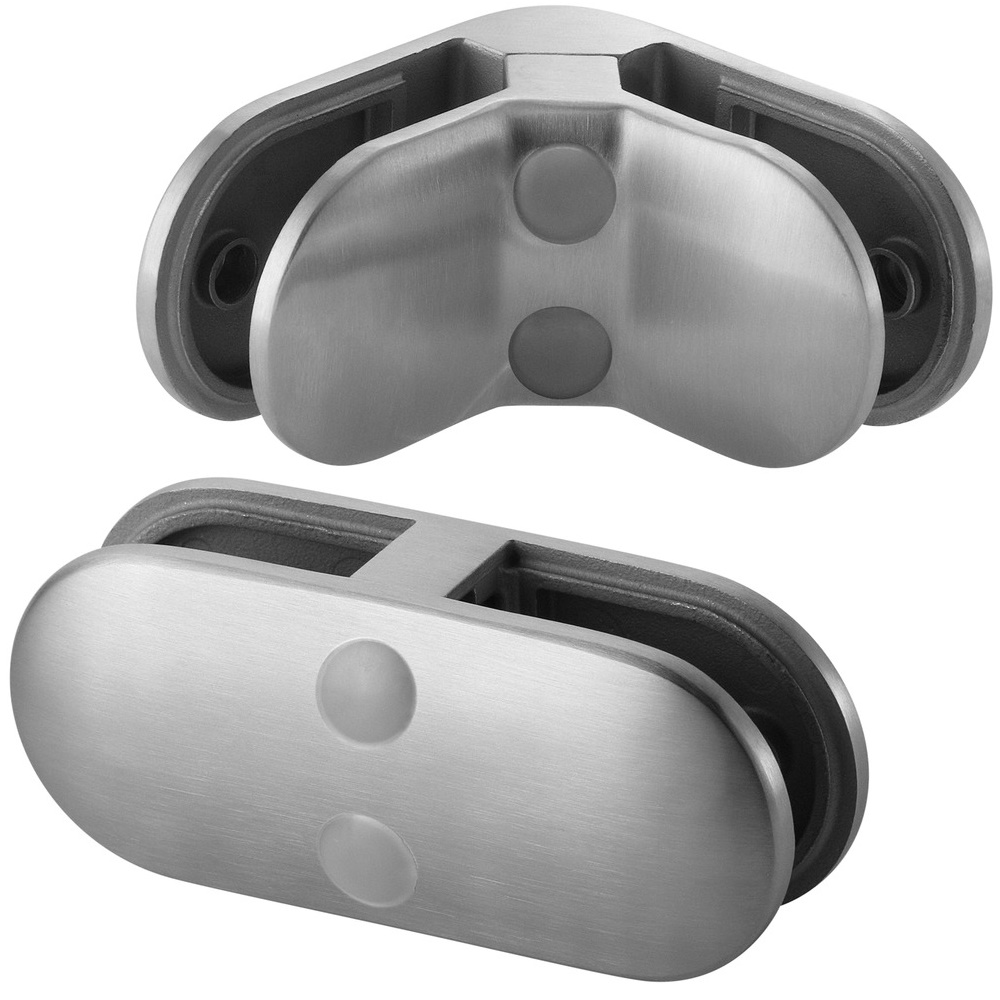

Stainless Steel Clamping Connector for glass: Contemporary Style, Straight (180 Degree In-line) / Angled (90 Degree Corner and 135 Degree) Connector. Highest quality, high-grade materials, flawless surface finishes, highly accurate dimensions and minimal tolerances.

    ■ Material: Stainless Steel 304 grade (for indoor) or 316 grade (for outdoor)*
    ■ Finish: Satin Brushed Finish
    ■ Glass Thickness: 6mm, 8mm, 8.76mm, 9.52mm, 10mm, 10.76mm, 11.52mm, 12mm, 12.76mm^
    ■ Supplied with: Clamping Connector, Rubber Gaskets, Screw Cover Caps
    ■ Hole Drilling in Glass: Optional**

This amazing product is available not only as a straight (180 degree), angled (90 degree) or angled (135 degree) glass connector, but also matching glass clamp, hinge or door lock / latch.

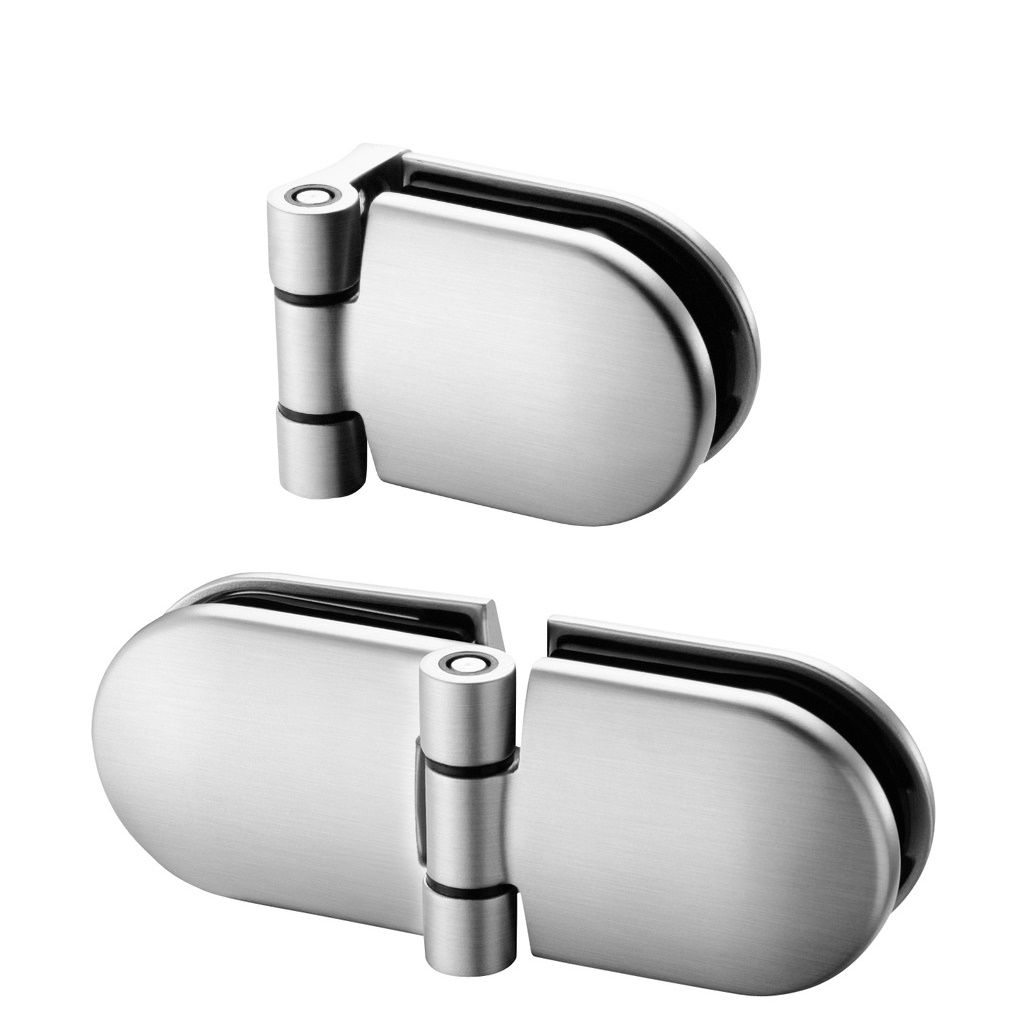

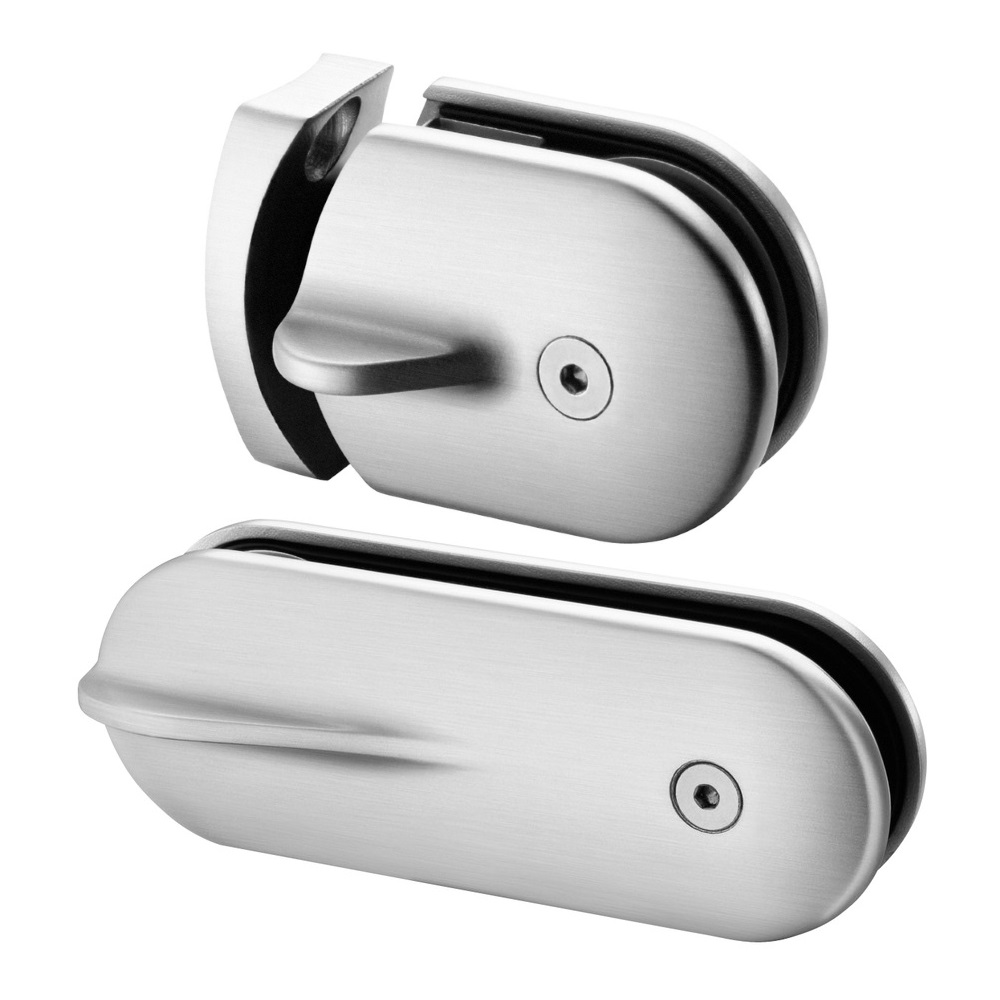

        Glass Clamp                            Glass Gate Hinges                          Glass Gate Latch

*Zamak and 304 grade stainless steel suits interior use. With increased corrosion resistance, 316 and 2205 grade stainless steel can be used for both interior and exterior and is better suited for coastal or more heavily polluted environments.

**Security Pin (sold separately) can be used to give glass panel extra support. For safety reason, we suggest the security pin to be used when the glass panel is fixed to the outside of a staircase and overhanging or the glass panel has a large void underneath. We recommend the use of security pins for additional security. When using the pin,  Ø10mm hole required in glass.

^ We also have 180 degree and 90 degree brackets for glass thickness 16.76mm, 17.52mm, 20.76mm and 21.52mm. Please click here for details.
