Double Clamping Glass Connector for 16.76mm - 21.52mm Glass

£36.00
(Exc. 20% VAT)
(£43.20 Inc. VAT)
90 Corner
180 In-line
16.76mm
17.52mm
20.76mm
21.52mm
Type
+
Item Code
28A6S18
Overview

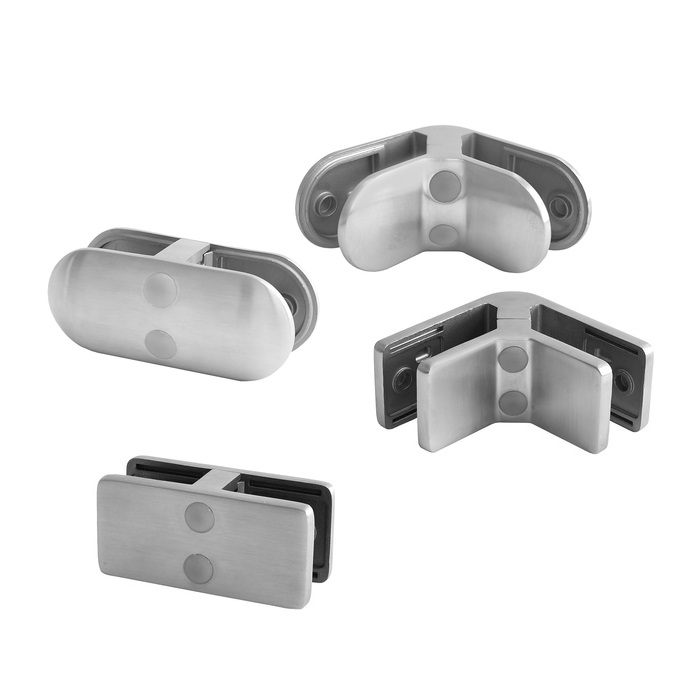

Stainless Steel Double Clamp Connector for glass 16.76mm, 17.52mm, 20.76mm and 21.52mm: Straight (180 Degree In-line) / Angled (90 Degree Corner Connector. Highest quality, high-grade materials, flawless surface finishes, highly accurate dimensions and minimal tolerances.

    ■ Material: Stainless Steel 316 grade (for both indoor and outdoor)*
    ■ Finish: Satin Brushed Finish
    ■ Glass Thickness: 16.76mm, 17.52mm, 20.76mm or 21.52mm^
    ■ Supplied with: Clamping Connector, Rubber Gaskets, Screw Cover Caps
    ■ Hole Drilling in Glass: Optional**

*Zamak and 304 grade stainless steel suits interior use. With increased corrosion resistance, 316 and 2205 grade stainless steel can be used for both interior and exterior and is better suited for coastal or more heavily polluted environments.

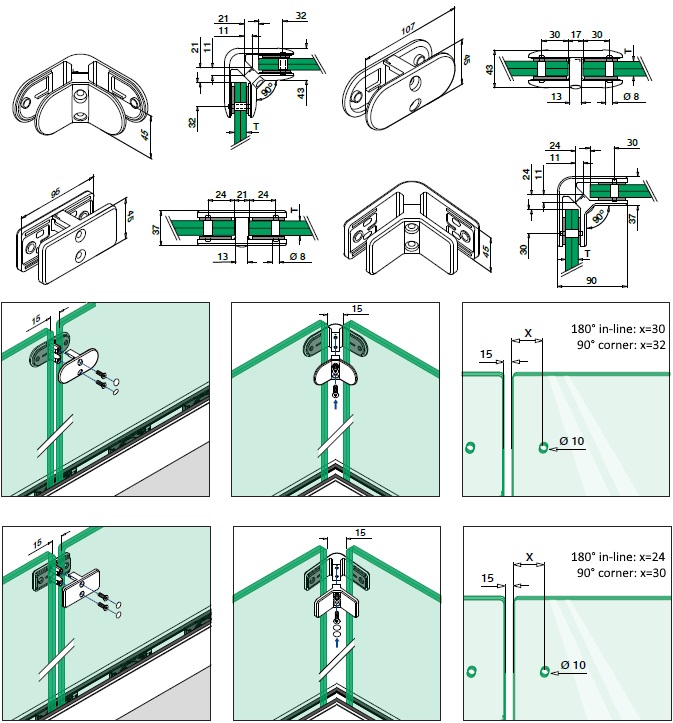

**Security Pin (sold separately) can be used to give glass panel extra support. For safety reason, we suggest the security pin to be used when the glass panel is fixed to the outside of a staircase and overhanging or the glass panel has a large void underneath. We recommend the use of security pins for additional security. When using the pin,  Ø10mm hole required in glass.

^ We also have 90 degree, 135 degree and 180 degree double clamp connectors for glass thickness 6mm - 12.76mm. Please click here and here for details.

Also Bought
'D' Shaped Glass Clamp with Flat Base for 15.0 - 21.5mm Glass

Item Code: GC-670F6
Satin, Exterior, 15, 17.5, 19 or 21.5mm

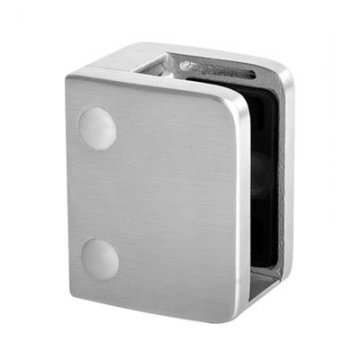

Extra Large Square Glass Clamp to suit 9.52mm - 21.52mm Glass

Item Code: GC-723
Satin Finish, Indoor & Outdoor, 9.52, 11.52, 12, 12.76, 13.52, 15, 16.76, 17.5, 19, 20.76 or 21.52mm

Item Code: SPG-170C-SF

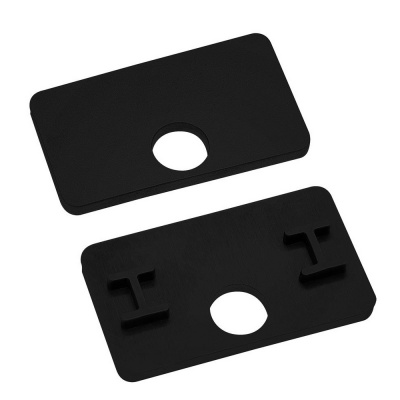

Rubber Gaskets for GC-723 Glass Clamp
