Extra Large Square Glass Clamp to suit 9.52mm - 21.52mm Glass

£30.00
(Exc. 20% VAT)
(£36.00 Inc. VAT)
Flat Back
48.3mm Post Mount
Material
+
Item Code
GC-723F4

Please Note: the Rubber Gaskets is sold separately, please choose from the above options (glass thickness)

Overview

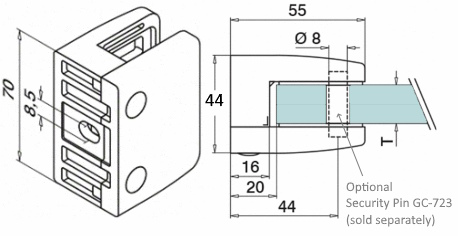

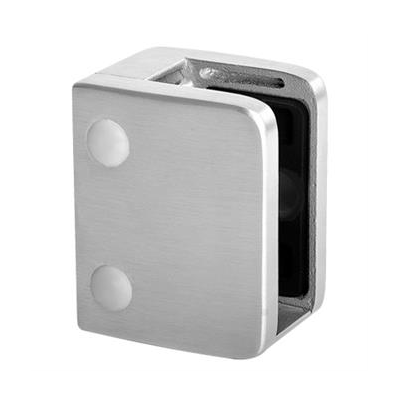

Extra Large Square Stainless Steel Glass Clamp to suit  glass thickness up to 21.5mm.

Tt can be used to create partition walls or wind screens - ideal for finishing a raised terrace - or, alternatively, for Juliet balconies.

    304 or 316 grade Stainless Steel in Satin Stainless Finish, for indoor & outdoor application

    Accommodates glass thickness: 9.52mm, 11.52mm, 12mm, 12.76mm, 13.52mm, 15.0mm, 16.76mm, 17.52mm, 19.0mm and 21.52mm

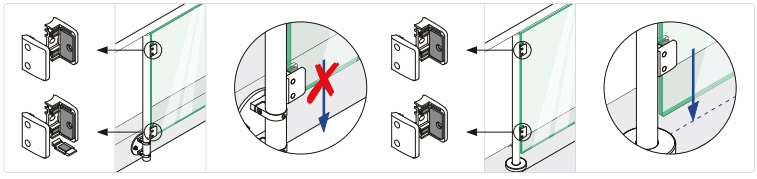

    Supplied with Metal Security Plate* (removable) to stop glass sliding down.

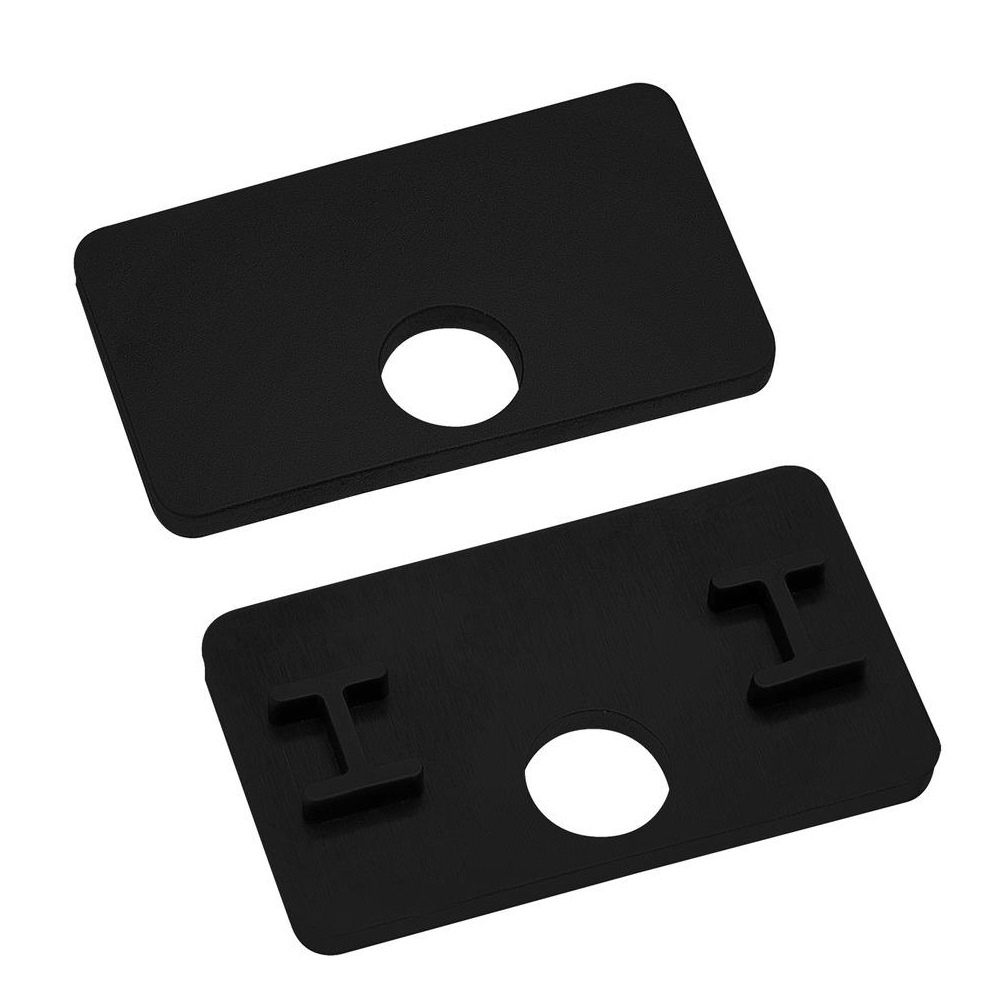

    Please Note: rubber gaskets are sold separately, please choose the correct thickness when buy the rubber gaskets. Without the rubber, the clamp will not work.

    * Metal Security Plate: eliminate the cost of drilling holes in the glass by fitting metal security plates in preference to the pins. It stops the glass sliding down.

    **Security Pin (available here) is to give glass extra support and stop the glass sliding down. Drilling hole in glass is required if the pin used.

    Specification

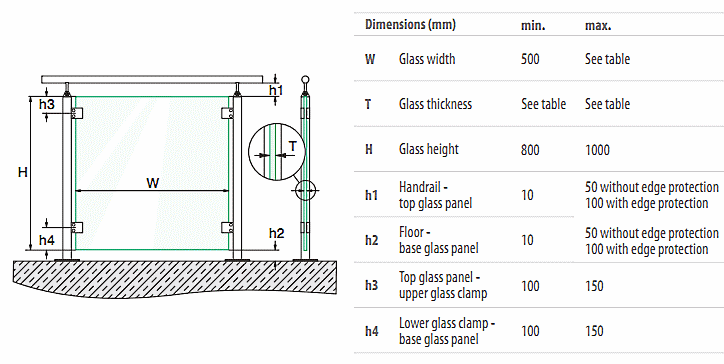

    EN-12600 Performance Test Table (Surface Mounted) :

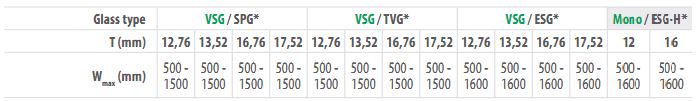

    INDOOR APPLICATION:
    Glass clamps used indoor without security pin & plate^.

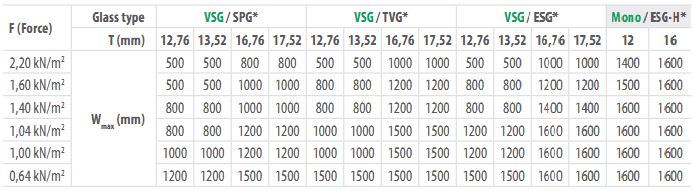

    OUTDOOR APPLICATION:
    Possible glass widths for outdoor use depending on wind factor, glass type and glass thickness without security pin & plate^ .


    ^ For safety reason, we suggest the Security Plate (supplied with your clamp) or the Security Pin (code: GCP-723) , sold separately) to be used when the glass panel is fixed to the outside of a staircase and overhanging.


    Please Note: All descriptions, specifications, diagrams, illustrations and dimensions given are approximate and intended for general guidance purposes only. They may be subject to change without prior notice. We make all reasonable efforts to ensure that the contents of this site are accurate and up-to-date, but can accept no responsibility for omissions, errors or subsequent changes.
