30mm Glass Adapter with Flat Back

30mm Glass Adapter with Flat Back
Stainless Steel Grade: SUS 316,  Option: Black RubberOption: White RubberStainless Steel Grade: SUS 304,  Option: Black Rubber
Unit Price:  £5.10(Exc. 20% VAT)(£6.12 Inc. VAT)

Item Code:  GA30-F6F

Metal to Wood Thread Dowel  ScrewsMetal to Wood Thread Dowel Screws

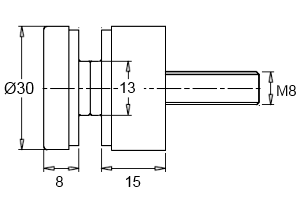

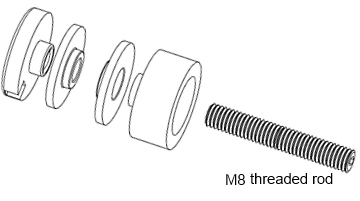

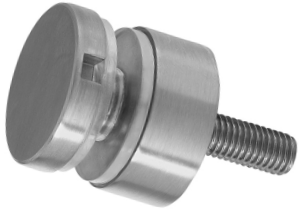

Ø30 mm Glass Stand-off Bracket with Flat Back, supplied as four removable parts: Head Cap; Back Spacer; Rubber Sleeve and M8 Threaded Rod.

        Satin Stainless Steel: 304 grade for interior and 316 grade suits Interior and Exterior use

       ■ Suitable for 6 - 12mm glass

       ■ Fix on flat surface (e.g. square / rectangular tube, wall, timber)

       ■ Ø13mm flanged black or white rubber sleeve, washers

       ■ Stand-off distance: 15mm (back spacer with rubber washer)

       ■ M8 threaded rod is removable (can be replaced by longer rod or rod suits timber fixing*)

          * To fix this Glass Adaptor to timber, you may need these Screws or Insert Nuts.

     Material: Stainless Steel SUS304 or SUS316*

     Finish: Satin Finish

     Threaded Stud: M8  removable

     Glass Thickness: 6 - 12mm

     Hole Drilling: Ø15 mm

    Item Code Threaded Rod Material Applicaiton
    SK30-F4 M8*40mm Satin stainless Steel SUS304 Indoor use
    SK30-F6 M8*50mm Satin stainless Steel SUS316 Indoor & Outdoor use
    GA30-F6F M8*50mm Satin stainless Steel SUS316 Indoor & Outdoor use

     * SUS304 grade Stainless Steel suits internal use; With increased corrosion resistance, the SUS316 grade Stainless Steel can be used for both interior and exterior and is better suited for coastal or more heavily polluted environments.

    Please Note: All descriptions, specifications, diagrams, illustrations and dimensions given are approximate and intended for general guidance purposes only. They may be subject to change without prior notice. We make all reasonable efforts to ensure that the contents of this site are accurate and up-to-date, but can accept no responsibility for omissions, errors or subsequent changes.

    This item can be delivered to all addresses within the UK and Northern Ireland (unless otherwise stated) as well as Channel Islands, Isle of Man, Isles of Scilly, Orkney, Shetland and Western Scottish Islands. We may be able to deliver to the Republic of Ireland or other selected EU countries.

     Delivery Zone  Cost
    (ex. VAT)
    (Estimated Delivery Time)
     England, Wales & Scottish Mainland  from £7.5 0  1 - 2 Working Day
     Scottish Highland  from £9.50  2 - 5 Working Day (Certain remote areas may take longer)
     Northern Ireland  from £9.50  2 - 4 Working Days
     Isle of Wight  from £9.50  1-2 Working Days
     Other Area  Please Contact Us for delivery cost and timescale

    Delivery Procedure:

    Your parcels will require a signature upon delivery. Please kindly ensure that there will be someone to sign for the parcel at the delivery address. If you are out you will be carded, please read the instructions on the card. After the very first attempt, you also have the option to collect the parcels from your local depot of the couriers.


    The cut-off time for next working day deliveries is 15:00 Monday to Friday (excluding Bank Holiday). Please Note: We rely on a third party (our couriers), therefore we are unable to guarantee delivery services. However, over 98.5% of deliveries are achieved on time.


    14 DAYS MONEY BACK GUARANTEE*: we at Kerol Hardware want you to be delighted with your purchase. Our aim is your total 100% satisfaction before and after you order. In the unlikely event should you wish to return an item(s), we offer you gladly 14 calendar days from delivery date in which to decide to keep your ordered item(s) or return it/them. *Terms & Conditions apply, please click here for details.

    Cost of returning:

    Cost of returning product(s) is based on your geographic location and the product(s) weight. Please refer the table below for the cost of returning via Parcel Force within the UK. Please note: surcharge applicable on items with certain length (1.50m+) and certain weight (30kg), please click here for details.

    Weight Express 24 (ex. VAT) Express 48 (ex. VAT) Express 48 LARGE (ex. VAT)
    Max. parcel length: 1.5m, Max. parcel weight: 30kg
    Max. parcel girth and length combined: 3m
    Max. parcel length: 2.5m, Max. parcel weight: 30kg
    Max. parcel girth and length combined: 5m
    up to 2kg £13.74 £9.99 £37.49
    up to 5kg £14.57 £10.82 £38.32
    up to 10kg £17.42 £13.67 £41.17
    up to 15kg £23.03 £19.28 £46.78
    up to 20kg £27.51 £23.76 £51.26
    up to 25kg £36.78 £33.03 £60.53
    up to 30kg £40.23 £36.48 £63.98
    per extra kg £1.25 £1.25 £1.25

    More info >  Detailed Delivery Information can be found here. Detailed Return Policy can be found here.

    Be the first to Write a Review for this item!
