4-Point Fixing Glass Canopy System - Mod A

4-Point Fixing Glass Canopy System - Mod A
Unit Price:  £250.00(Exc. 20% VAT)(£300.00 Inc. VAT)

Item Code:  SK-R3-M12



In Stock, Express Delivery

Complete 4-point fixing hardware for creating a Glass Canopy over a doorway, providing protection to the building from the weather without obstructing the view.

   ■ 316 grade Stainless Steel, suits interior and exterior use

   ■ Satin Stainless Steel Finish

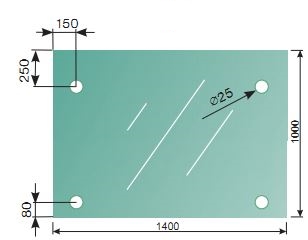

   ■ Suitable glass thickness 10mm - 13mm.

   ■ Maximum loading 2.5kN per one arm.

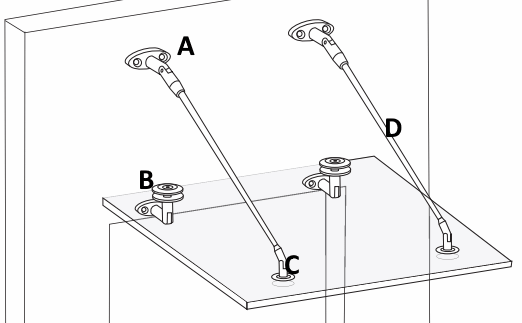

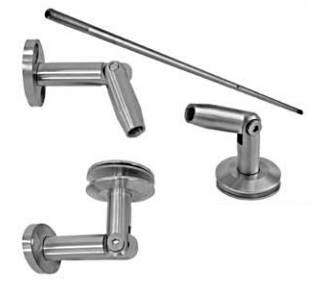

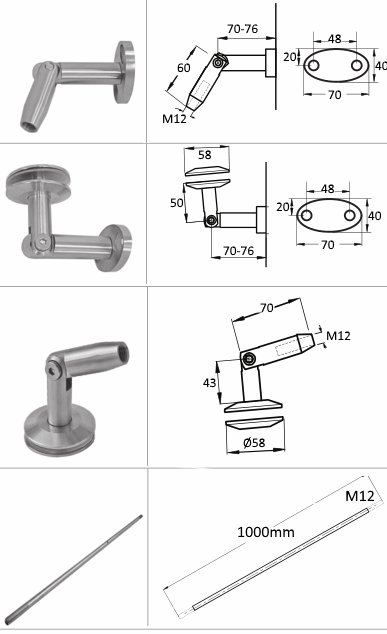

Each kit consists of:

A - Wall Mounting Bracket x 2
B - Wall Connector x 2
C - Glass Connector x 2
D - M12 Threaded Rod (1000mm) x 2


Supplied with Installation Instruction (also available to download here)

Please Note: All specifications are for reference purposes only and are subject to change without prior notice. Dimensions for guide only. Component may vary slightly from the sizes shown.
