4-Point Fixing Glass Canopy System - Mod B

(Exc. 20% VAT)
(£357.60 Inc. VAT)
In Stock, Express Delivery
Item Code
Prices for hardware only, no glass panel supplied.

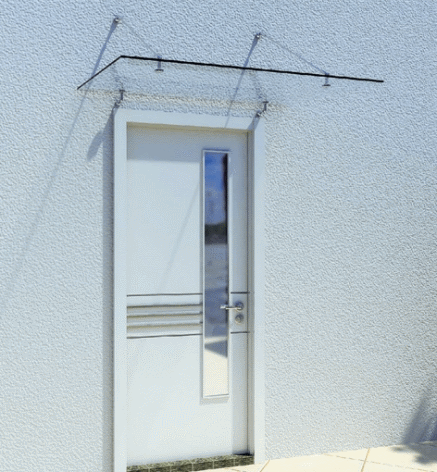

This is a stunning 4-point fixing Glass Door Canopy System is designed to crate a stylish yet functional entrance coverage,  providing an elegant touch to any property.

   ■ 304 grade Stainless Steel, in Brushed Satin Finish

   ■ Easy to install

   ■ Suitable glass thickness 10mm - 17.52mm.

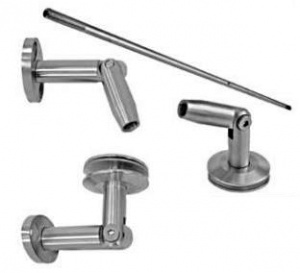

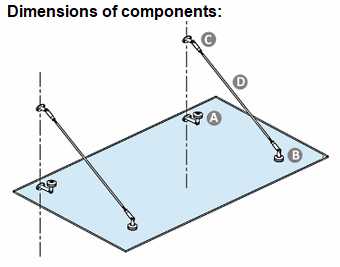

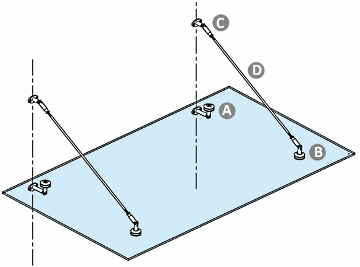

Complete system supplied with the following components:

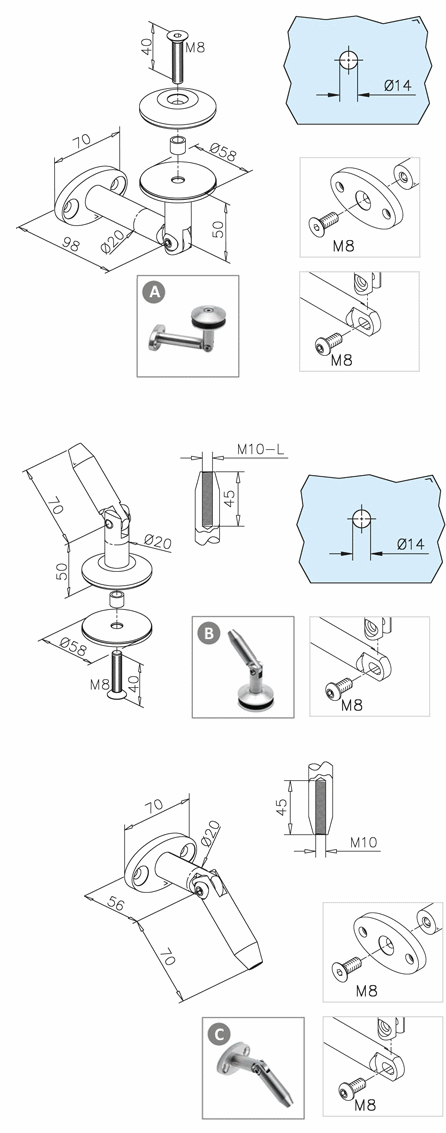

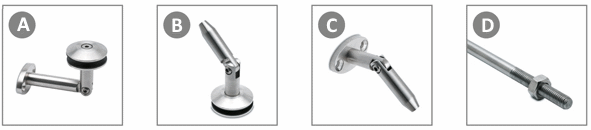

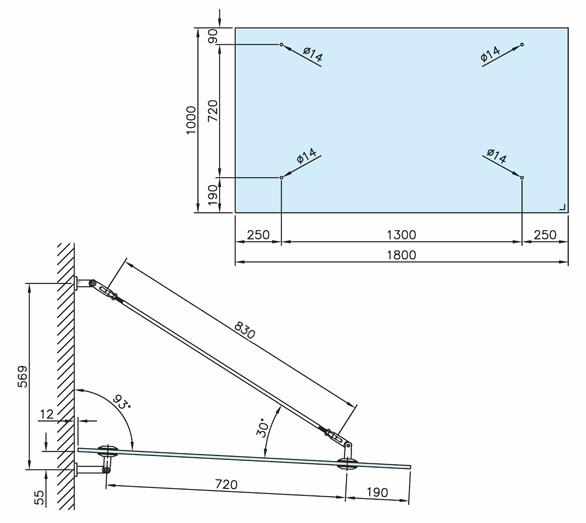

A - Wall-to-Glass Mounting Bracket x 2    B - Glass Connector x 2      C - Wall Connector x 2      D - M10 Threaded Rod (830mm) x 2*

*The 830mm rods are supplied as standard. Larger glass canopy sizes (e.g. 1300mm wide) require extra long rods. We're happy to quote for any length option, please contact us.
Please Note: this item is made from 304 grade stainless steel, and is NOT suitable for coastal or heavily polluted environments.

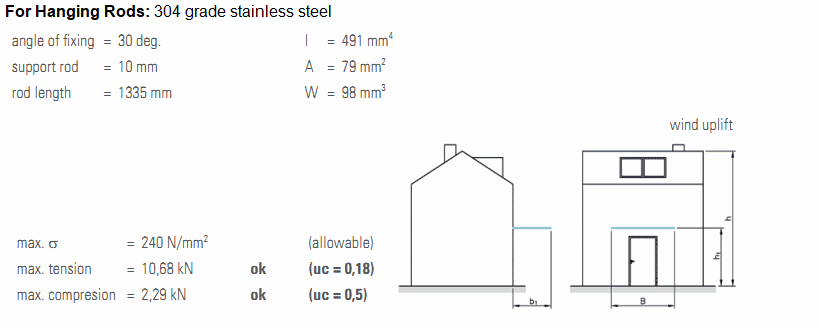

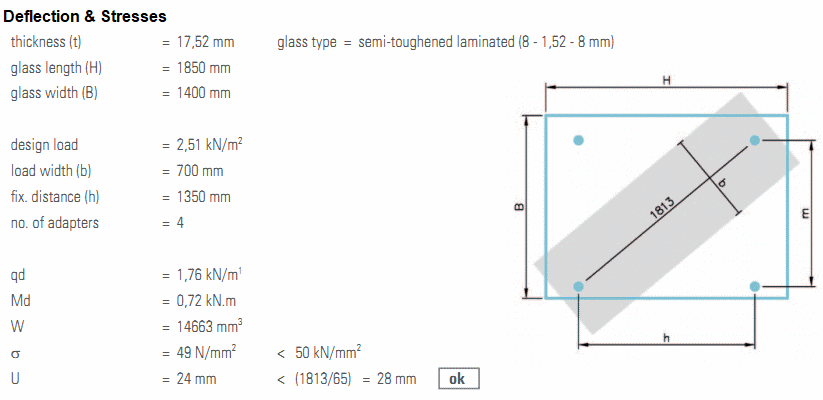

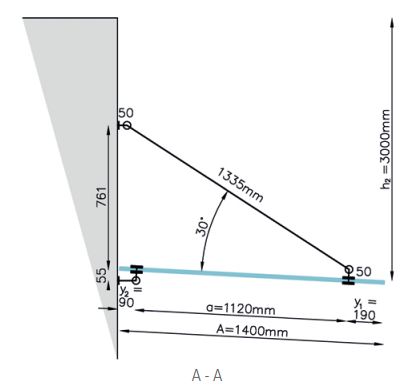

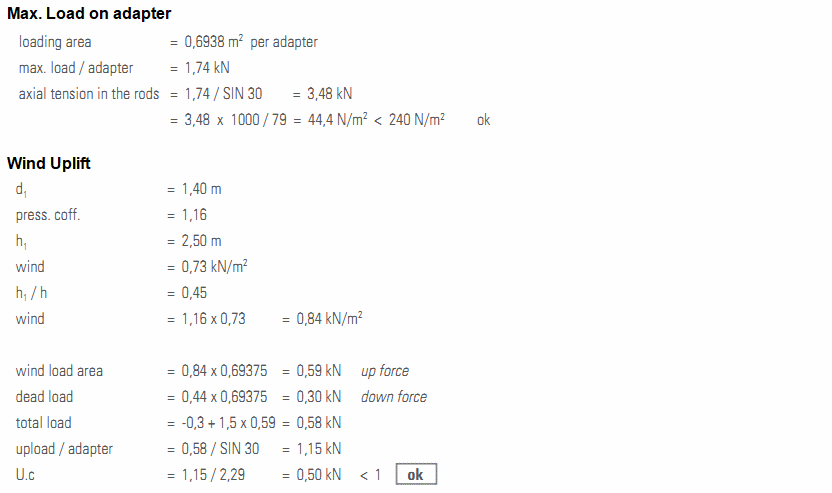

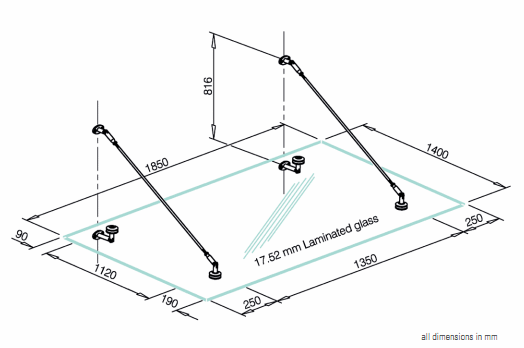

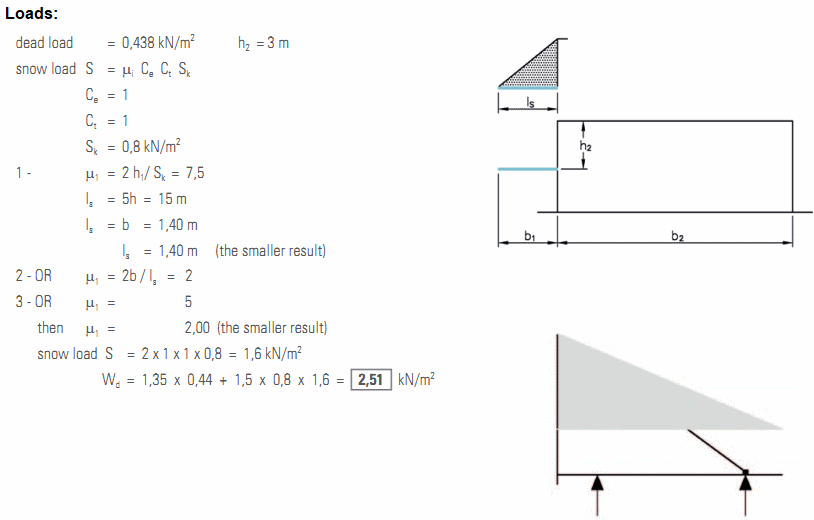

This standard 4-point canopy system was statically tested, the glass in the test was 17.52mm (semi-toughened laminated 8 - 1.52 -8mm), details can be found below:


This item can be delivered to all addresses within the UK and Northern Ireland (unless otherwise stated) as well as Channel Islands, Isle of Man, Isles of Scilly, Orkney, Shetland and Western Scottish Islands. We may be able to deliver to the Republic of Ireland or other selected EU countries.

 Delivery Zone  Cost
(ex. VAT)
(Estimated Delivery Time)
 England, Wales & Scottish Mainland  from £7.50  1 - 2 Working Day
 Scottish Highland  from £9.50  2 - 5 Working Day (Certain remote areas may take longer)
 Northern Ireland  from £9.50  2 - 4 Working Days
 Isle of Wight  from £9.50  1-2 Working Days
 Other Area  Please Contact Us for delivery cost and timescale

Delivery Procedure:

Your parcels will require a signature upon delivery. Please kindly ensure that there will be someone to sign for the parcel at the delivery address. If you are out you will be carded, please read the instructions on the card. After the very first attempt, you also have the option to collect the parcels from your local depot of the couriers.


The cut-off time for next working day deliveries is 15:00 Monday to Friday (excluding Bank Holiday). Please Note: We rely on a third party (our couriers), therefore we are unable to guarantee delivery services. However, over 98.5% of deliveries are achieved on time.


14 DAYS MONEY BACK GUARANTEE*: we at Kerol Hardware want you to be delighted with your purchase. Our aim is your total 100% satisfaction before and after you order. In the unlikely event should you wish to return an item(s), we offer you gladly 14 calendar days from delivery date in which to decide to keep your ordered item(s) or return it/them. *Terms & Conditions apply, please click here for details.

More info >  Detailed Delivery Information can be found here. Detailed Return Policy can be found here.
