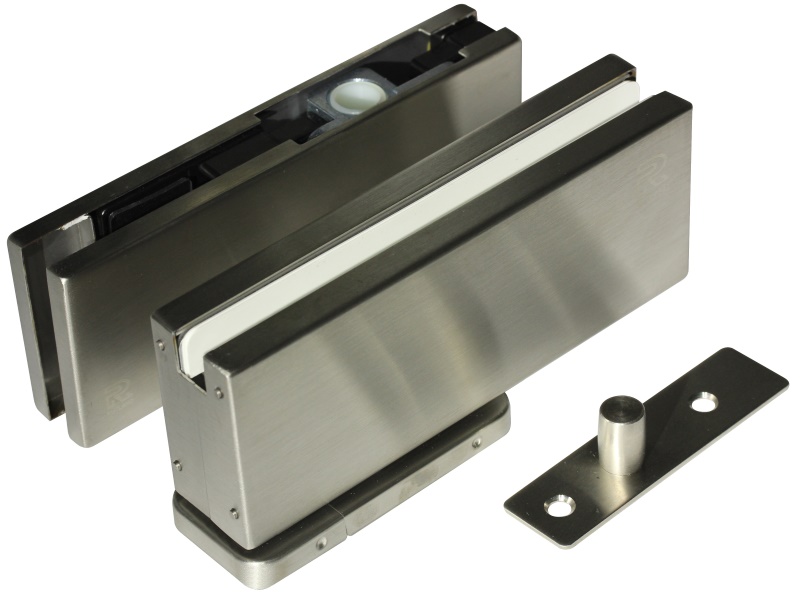

Heavy Duty Oil Hydraulic Glass Door Patch Closer Kit

Heavy Duty Oil Hydraulic Glass Door Patch Closer Kit
 Heavy Duty Oil Hydraulic Glass Door Patch Closer KitHeavy Duty Oil Hydraulic Glass Door Patch Closer Kit
Unit Price:  £170.00(Exc. 20% VAT)(£204.00 Inc. VAT)

Item Code:  GPC300

This product has been certified and labelled to the Underwrites' Laboratories (UL) testing, inspection, certification, auditing and validation.

Heavy Duty: variable power size EN 3 - 5, for glass door width up to 1250mm with Max. door weight up to 100kg.
This Heavy Duty Oil Hydraulic non-digging Floor Spring for frameless glass doors, combining a floor spring a base patch into a single product, which incorporates the spring closing mechanism but eliminates the need to dig the floor and cement a box in prior to installation. Quick and Easy installation: great for saving time and effort. Ideal for situations like concrete floors where it's difficult to use the traditional Floor Spring closer due to underfloor heating, cavity or mechanical services etc… a super neat, easy to fit option for the frameless glass door!

 Material: Zinc & Alu Alloy with Stainless Steel Cover Plate in Satin Brushed Finish

 Glass Specification: 10mm - 15mm toughened glass (cut-out required)

 Quick and easy installation: digging in the floor not required.

Latch Speed and Closing Speed Adjustable

 Maximum opening 130°, available with hold open at 90° or non hold open.

Max. Door Weight: 100kg, Max. Door Width: 1250mm

UL listed

 Supplied with Installation Instructions (also available to download here).

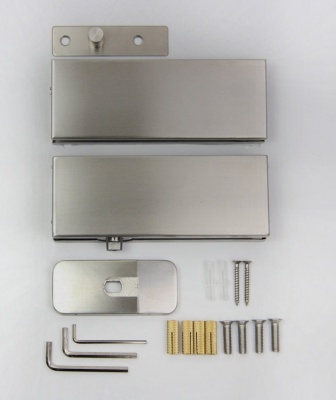

Supplied as complete kit:
    1x Top Pivot
    1x Top Patch
    1x Bottom Door Closer (Incl. 1x Bottom Patch & 1x Bottom Fixing Plate)
    1x Fitting Accessory (Screws, Allen Keys)

Features & Benefits

  • Very Quick & Easy to Install - No cutting/breaking off solid floors - No need to cut the floor or using breakers to smash up the concrete – quieter and safer method to install - Saving over 1 Hour of time per product install compared to a floor spring in a concrete floor application.
  • Lower Hidden Obstruction Risk – with four fixings and no cement box to install there is significantly less risk of coming into contact with underfloor heating, hidden electrics, data cables, water or gas mains.
  • Hygienic - No floor cavity or cover plate ensures cleaning under the door is possible and ideal for clean areas like hospitals, restrooms, washrooms whereas traditionally dirt/debri or liquids could go into the floor spring mechanism area.
  • Performance Tested - Tested to EN 1154 to 500,000 cycles and backed with a 25 Year Warranty for peace of mind.

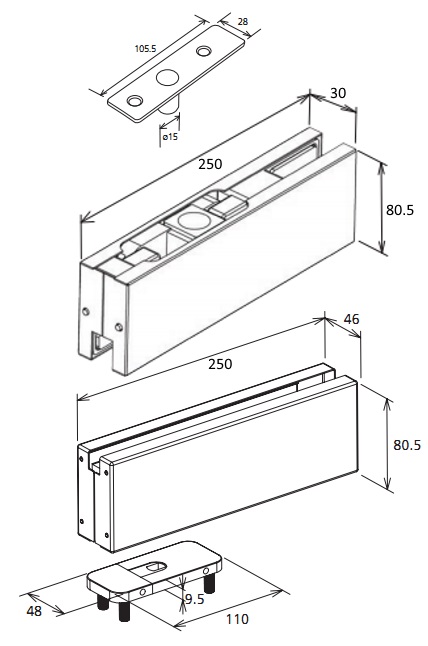

Please Note: all dimensions, cut-out drawings should be treated as indicative, as manufacturer may, from time to time, make alterations to their original design without prior notice. Please use the Installation manual supplied with product for accurate information.
