Angle Adjustable Wall Mounted Shower Door Hinge with Snap-on Cover & Concealed Screws
Angle Adjustable Wall Mounted Shower Door Hinge with Snap-on Cover & Concealed Screws

Angle Adjustable Wall Mounted Shower Door Hinge with Snap-on Cover & Concealed Screws

£55.00
(Exc. 20% VAT)
(£66.00 Inc. VAT)
Style
+
Item Code
1523-0022

Price shown is per hinge.

Overview

Wall Mounted Glass Door Hinges with centre fixing plate for 8mm - 10mm Glass Thickness.

Made from brass, supplied with snap on cover to hide ugly screws where a neat finish is required.

  • Material: Brass
  • Finish: Chrome Plated, Matt Black, Polished Brass, Stainless Steel Effect

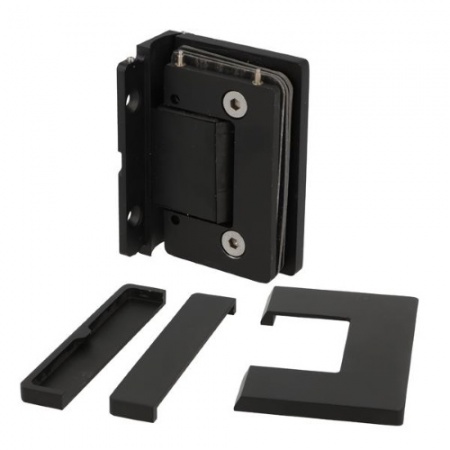

  • Snap on cover to conceal screws for a neat finish.
  • Open 90 degree (both inwards and outwards), with 15° return function (self-centering)
  • Closing angle adjustable for a perfect close
  • For Glass 8 - 10mm, Max. Door Width: 800mm, Max. Weight: 40kg / pair




Style: Centre Fixing Plate



Please Note: these hinges are supplied without determining the zero position. After installing the hinges please set the zero position and tighten both screws.

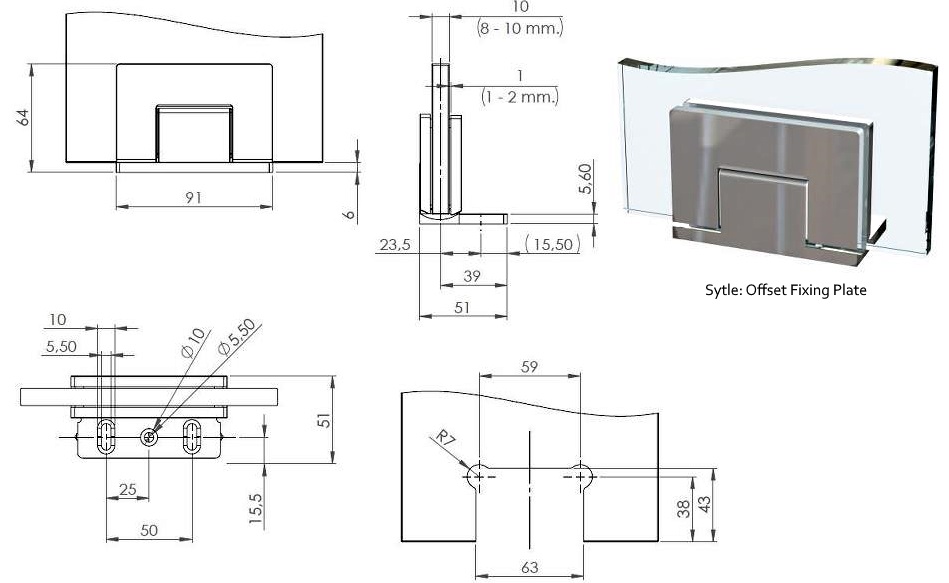

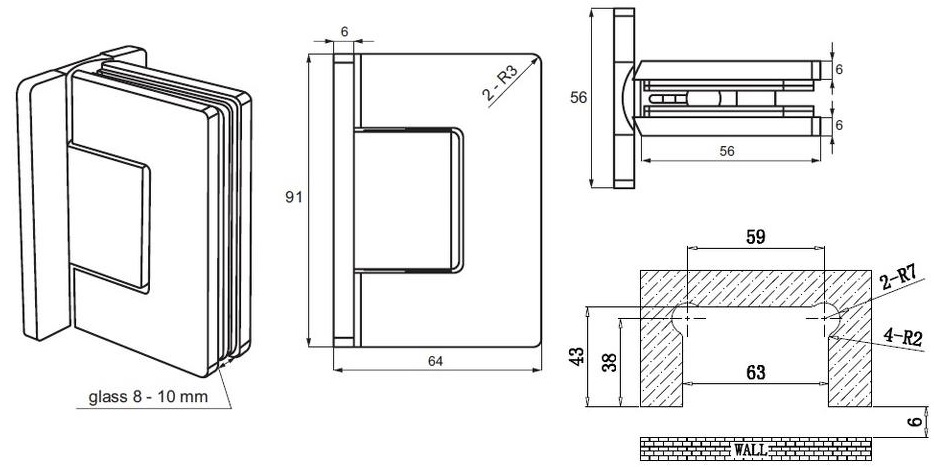

Specification

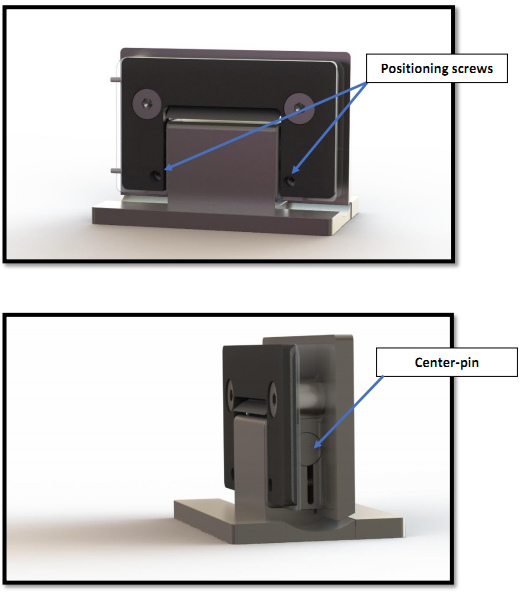

Best Practice and Tips before Installation

1. Open / close the hinge and check the centrer-pin does not move with the hinge

2. Make sure the 2 small positioning screws are loose. Tighten only after the door is installed.



Instruction Manual





Unable to find the desired 0° position?

Cause and solution:

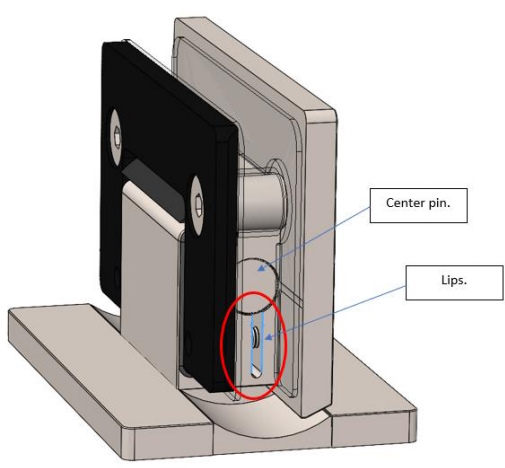

Tightening the 2 small 'zero-point adjustment screws' makes a strong and effective hold by deforming the hinge, see below area:

Normally when loosening the small screws, these lip areas lose their grip and hold. But sometimes the areas keep the hold. This means the indicated area (on both sides of the hinge) needs to be spread apart for the centrer pin to rotate freely.

Easiest way to do this is to...

  1. Take off the glass door.
  2. Remove both small center hold screws.
  3. Find a large flat screwdriver
  4. Insert the screwdriver between the lips of the shown area and turn it - thereby increasing the distance between the lips - both sides of the hinge.
  5. To make sure all is ok... work the hinge (1 or 2 times) until the center pin stops burning. Tips: making a marker line on the pin helps to see if it moves.
  6. Insert the 2 position hold screws loosely, do not tighten.
  7. Hinge is now ready.



Cleaning & Care Instruction

Profiles, fittings and glass panels must only be cleaned with mild household cleaners (no microfibre cloths).
Detergents, abrasive cleaners, alcohol or cellulose thinners are not suitable for this purpose.
The mechanical parts of the shower cubicle also need care to maintain their trouble-free function for many years. Regular
cleaning and maintenance are decisive factors in maximising their lifespan. The older the deposits on material surfaces, the
more difficult to remove.
• Clean and dry the surfaces directly after having a shower.
• Use soft, non-abrasive cloths.
• Important: Highly effective, coarse microfibre may damage the surface.
• Non-abrasive, non-film forming standard household detergents or glass cleaners must be used.
• Please always read the instructions for use of the respective detergents.
