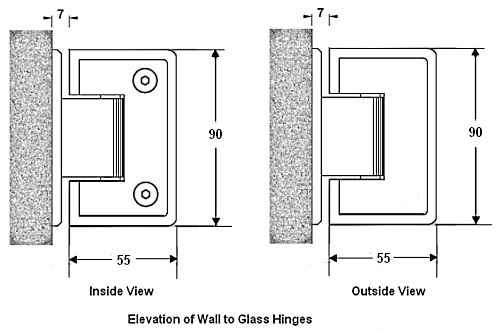

Wall to Glass Hinge with Centre Fixing Plate
Wall to Glass Hinge with Centre Fixing Plate

Wall to Glass Hinge with Centre Fixing Plate

(Exc. 20% VAT)
(£27.48 Inc. VAT)
In Stock, Express Delivery
Item Code

Price shown is per hinge.

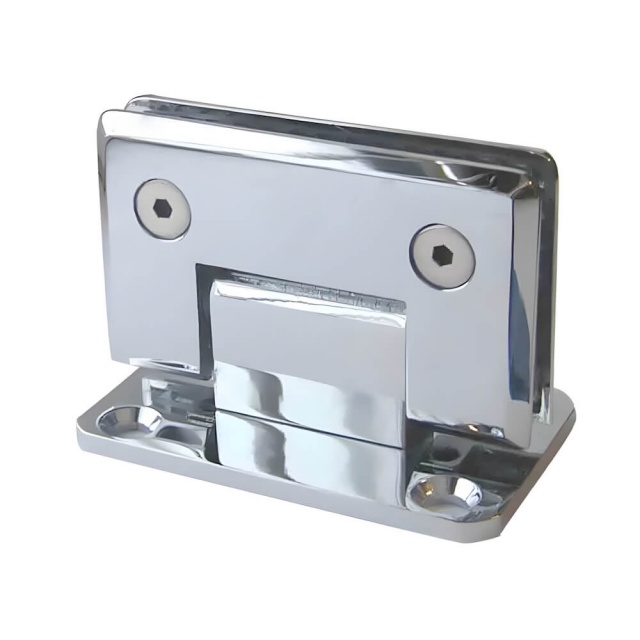

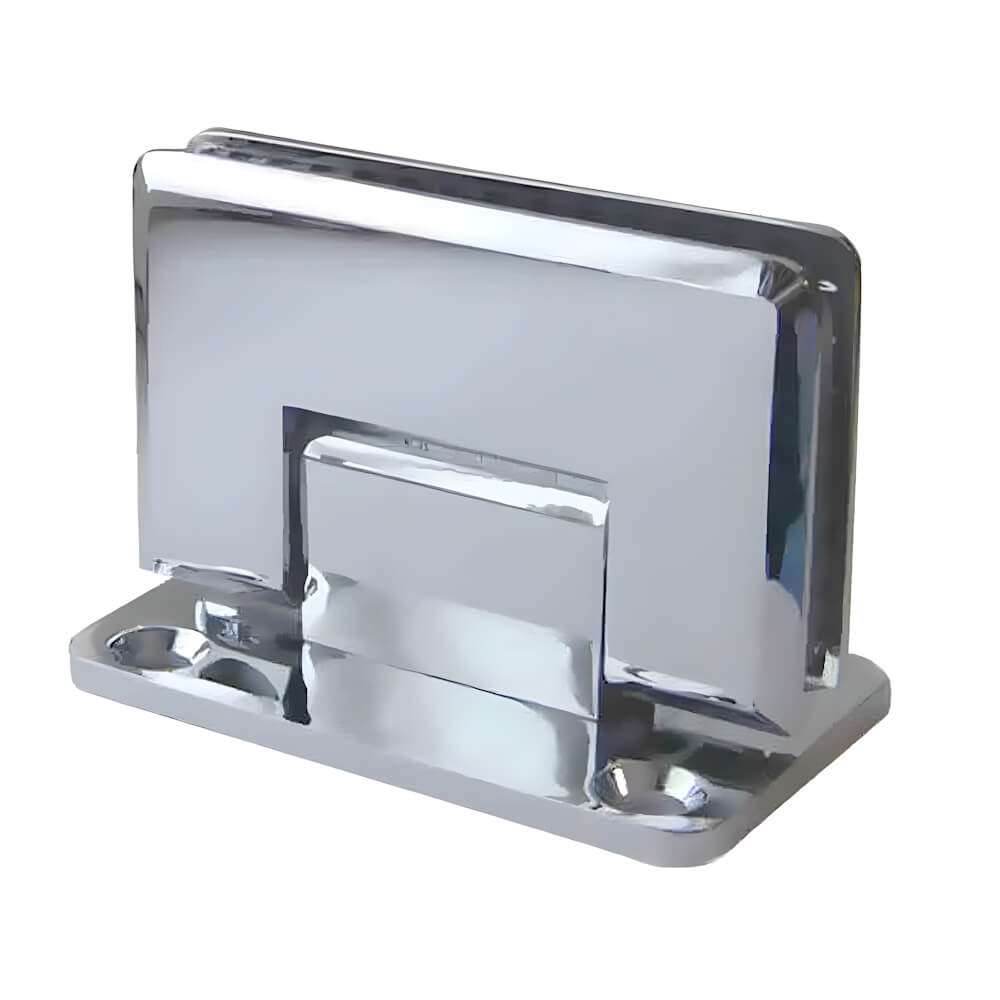

A Wall Mounted Glass Door Hinges with Central Fixing Plate, comes in an attractive chrome polished finish.

      Made from Brass and Stainless Steel

      Finish: Polished Chrome

      Fits 6-10 mm thick glass door

      Glass Cut-out required

      Supplied with gaskets, fixing screws and glass cut-out dimensions.


Material: Brass Construction with Precision Machined Stainless Steel Components

Finish: Chrome Polished Finish

Glass Thickness: 6 -10mm

Door Opening: dual action springs, opening both inwards and outwards (90° in and 90° out)

Closing Type: Self-closing from approximately 25-30 degrees

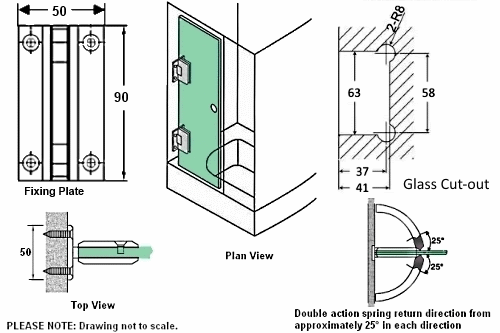

Glass Fabrication: glass cut-out required (cut-out revised 18.03.2015)

Capacities: 2 hinges - max. door weight 40kg, max. door width 800mm; 3 hinges - max. door weight 55kg, max. door width 900mm

 Glass Weights Chart
 Glass Thickness  6mm  8mm  10mm  12mm
 Approximate Weight  13.75kg/m2  18.30kg/m2  23.00kg/m2  27.50kg/m2


Please Note: All specifications are for reference purposes only and are subject to change without prior notice.
Fixing Screws and Wall Plug supplied are ONLY for solid wall applications. Make sure that the screws and wall plugs being used are suitable for supporting your channels. Consult a qualified tradeperson if you are unsure.
