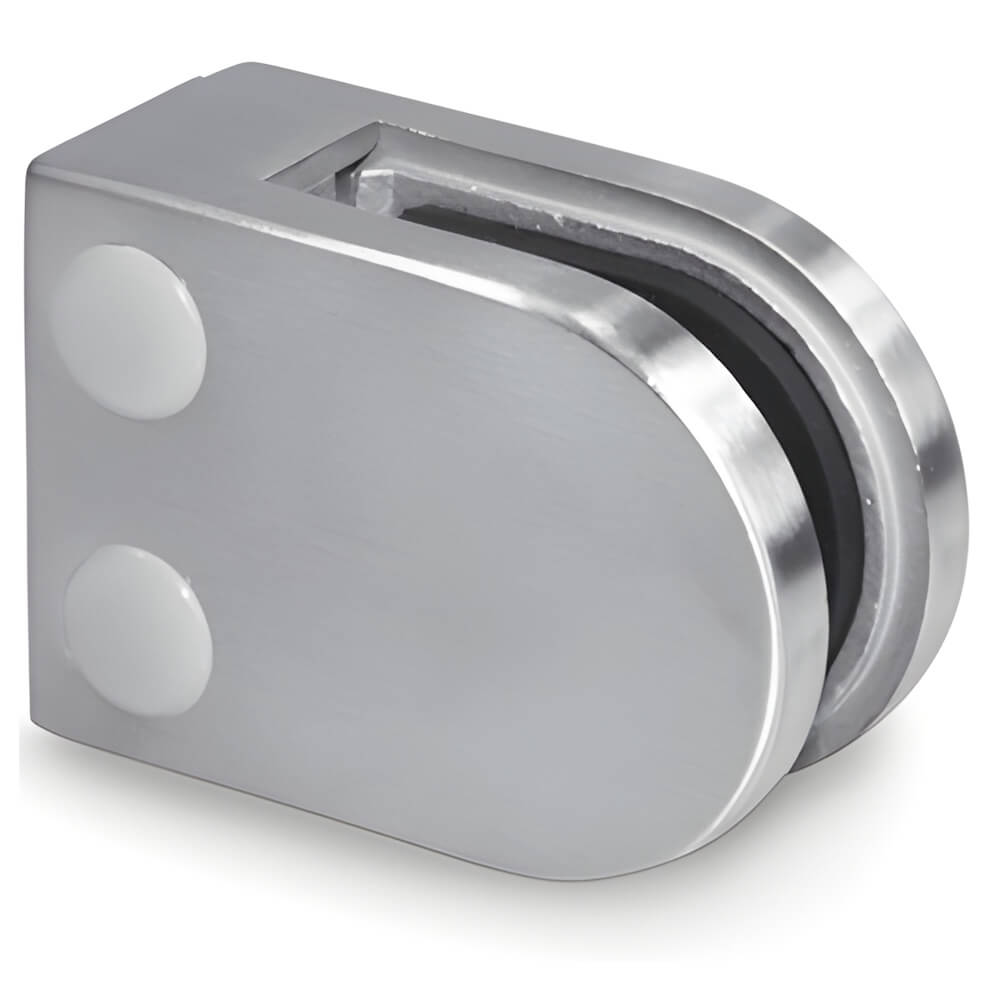

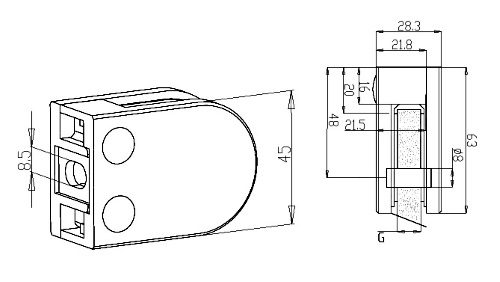

D-Shaped Glass Clamp, Flat Base

£7.00
(Exc. 20% VAT)
(£8.40 Inc. VAT)
6mm
8mm
10mm
12mm
Satin
Material
+
Item Code
32F4.10S
For Matching Glass Clamp with Curved Back to suit Ø42.4 and 48.3mm Post, please click here.
Overview

Large D-shaped Stainless Steel Glass Clamp with Flat Base for mounting on Square Post or other flat surfaces (e.g. wall, floor...).  Made from high quality stianless steel, this glass clamp is a perfect solution for glass balustrades, partitions, railings, windbreaks, displays and sneeze guards.

    304 grade Stainless Steel, suits Interior Use and 316 grade Stainless Steel, suits Interior and Exterior Use

    Satin Brushed Finish

    Suitable for 6mm, 8mm, 10mm and 12mm glass

    Supplied with rubber gaskets, screw cover caps and security pin.

    Assembly Guides


    The type of the screw needed will vary greatly depending on the type of surface you're fixing to (e.g. stainless steel post, wall, floor...). The above Hexagon Socket Head Cap Screw (M8) is the standard screw to be used when fixing the glass clamps to steel posts. You might want to choose the correct fixing screw with similar dimension as this.

    Below is a typical glass clamps application, to show the recommended positions for fixing the glass clamps. However we do have customers who prefer  fixing the clamps on top and bottom (e.g having a larger glass panel).

     Dimensions (mm)  Min.  Max.
     W  Width of Glass  500  1500*
     H  Height of Glass  800  1000*
     h1  Distance between handrail and top of the glass  10  50 without edge protection, 100 with edge protection
     h2  Distance between floor and bottom of the glass  10  50 without edge protection, 100 with edge protection
     h3  Glass edge above – axle upper glass clamp  100  150
     h4  Glass edge below – axle lower glass clamp  100  150

    *Max. size depends on glass type, glass thickness and wind factor (when using outdoor).
    ** For safety reason, we suggest the Secure Pin (supplied with your clamps) to be used when the glass panel is fixed to the outside of a staircase and overhanging.

    Please note: All specifications are for reference purposes only and are subject to change without prior notice.

    Delivery

    This item can be delivered to all addresses within the UK and Northern Ireland (unless otherwise stated) as well as Channel Islands, Isle of Man, Isles of Scilly, Orkney, Shetland and Western Scottish Islands. We may be able to deliver to the Republic of Ireland or other selected EU countries.

     Delivery Zone  Cost
    (ex. VAT)
     Timescale
    (Estimated Delivery Time)
     England, Wales & Scottish Mainland  from £7.50  1 - 2 Working Day
     Scottish Highland  from £9.50  2 - 5 Working Day (Certain remote areas may take longer)
     Northern Ireland  from £9.50  2 - 4 Working Days
     Isle of Wight  from £9.50  1-2 Working Days
     Other Area  Please Contact Us for delivery cost and timescale

    Delivery Procedure:

    Your parcels will require a signature upon delivery. Please kindly ensure that there will be someone to sign for the parcel at the delivery address. If you are out you will be carded, please read the instructions on the card. After the very first attempt, you also have the option to collect the parcels from your local depot of the couriers.

    Timescales:

    The cut-off time for next working day deliveries is 15:00 Monday to Friday (excluding Bank Holiday). Please Note: We rely on a third party (our couriers), therefore we are unable to guarantee delivery services. However, over 98.5% of deliveries are achieved on time.

    Return:

    14 DAYS MONEY BACK GUARANTEE*: we at Kerol Hardware want you to be delighted with your purchase. Our aim is your total 100% satisfaction before and after you order. In the unlikely event should you wish to return an item(s), we offer you gladly 14 calendar days from delivery date in which to decide to keep your ordered item(s) or return it/them. *Terms & Conditions apply, please click here for details.

    More info >  Detailed Delivery Information can be found here. Detailed Return Policy can be found here.

    Customer Reviews (0)

    Be the first to Write a Review for this item!

    Also Bought

    Item Code: GC-612FX-180

    Item Code: GC-612FX-90

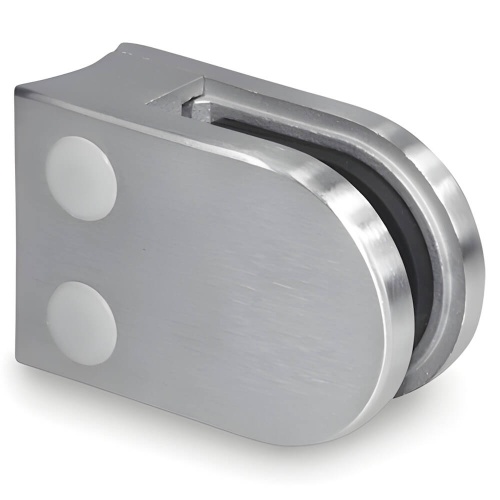

    'D' Shaped Glass Clamp with Curved Back
    (1)

    Item Code: GC-32R
    Satin Finish, Indoor or Outdoor Use,
    Round Back for Ø42.4 or 48.3mm Post



    (2)

    Item Code: AT07-807

    Shower Threshold Seal

    Item Code: PS-TH

    NEW

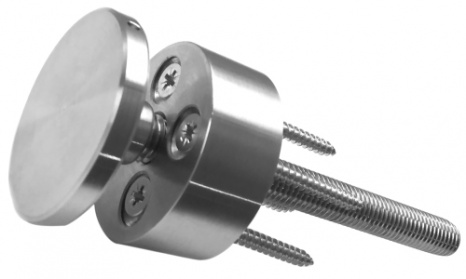

    50mm Stainless Steel Standoff
