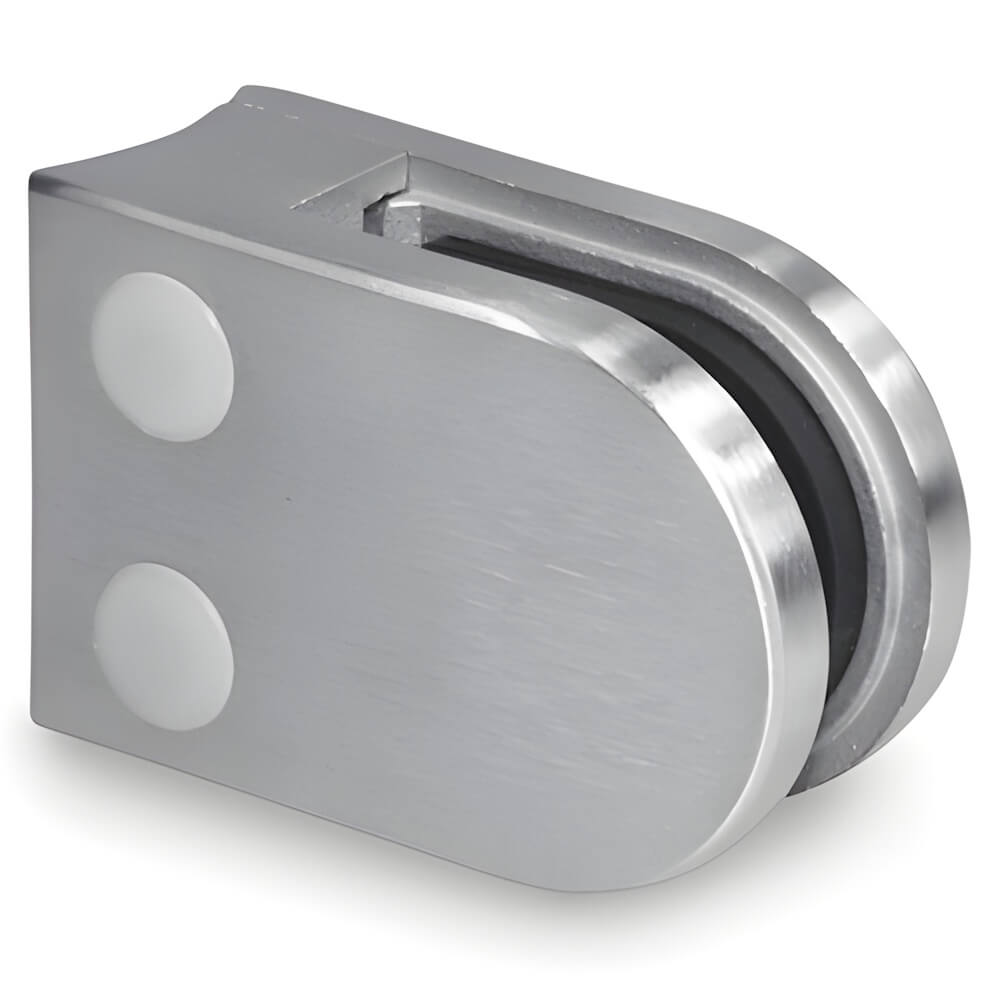

'D' Shaped Glass Clamp with Curved Back

'D' Shaped Glass Clamp with Curved Back
Unit Price:  £7.00(Exc. 20% VAT)(£8.40 Inc. VAT)


Item Code:  32R4.10C

For Matching Glass Clamp with Flat Back, please click here.

Large D-shaped Stainless Steel Glass Clamp with Round Base for mounting on round tubes. A perfect solution for glass balustrades, partitions, railings, windbreaks, displays and sneeze guards.

    304 grade Stainless Steel, suits Interior Use and 316 grade Stainless Steel, suits Interior and Exterior Use

    Satin Brushed Finish

    Suitable for 6mm, 8mm, 10mm and 12mm glass

    Suitable for Round Posts (Ø42.4mm or Ø48.3mm)

    Supplied with rubber gaskets, screw cover caps and security pin.


    The type of the screw needed will vary greatly depending on the type of surface you're fixing to (e.g. stainless steel post, wall, floor...). The above Hexagon Socket Head Cap Screw (M8) is the standard screw to be used when fixing the glass clamps to steel posts. You might want to choose the correct fixing screw with similar dimension as this.

    Below is a typical glass clamps application, to show the recommended positions for fixing the glass clamps. However we do have customers who prefer  fixing the clamps on top and bottom (e.g having a larger glass panel).

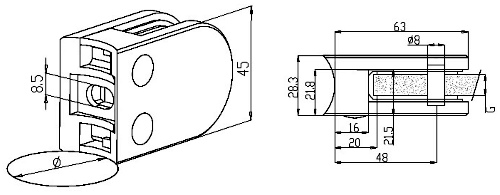

     Dimensions (mm)  Min.  Max.
     W  Width of Glass  500  1500*
     H  Height of Glass  800  1000*
     h1  Distance between handrail and top of the glass  10  50 without edge protection, 100 with edge protection
     h2  Distance between floor and bottom of the glass  10  50 without edge protection, 100 with edge protection
     h3  Glass edge above – axle upper glass clamp  100  150
     h4  Glass edge below – axle lower glass clamp  100  150

    *Max. size depends on glass type, glass thickness and wind factor (when using outdoor).
    ** For safety reason, we suggest the Secure Pin (supplied with your clamps) to be used when the glass panel is fixed to the outside of a staircase and overhanging.

    Please note: All specifications are for reference purposes only and are subject to change without prior notice.
