Ø50mm Glass Holder with Stand-off Spacer
Ø50mm Glass Holder with Stand-off Spacer

Ø50mm Glass Holder with Stand-off Spacer

£17.30
(Exc. 20% VAT)
(£20.76 Inc. VAT)
Stainless Steel Grade
Spacer (Stand-off Distance)
+
Item Code
GH50-F4-20
Overview

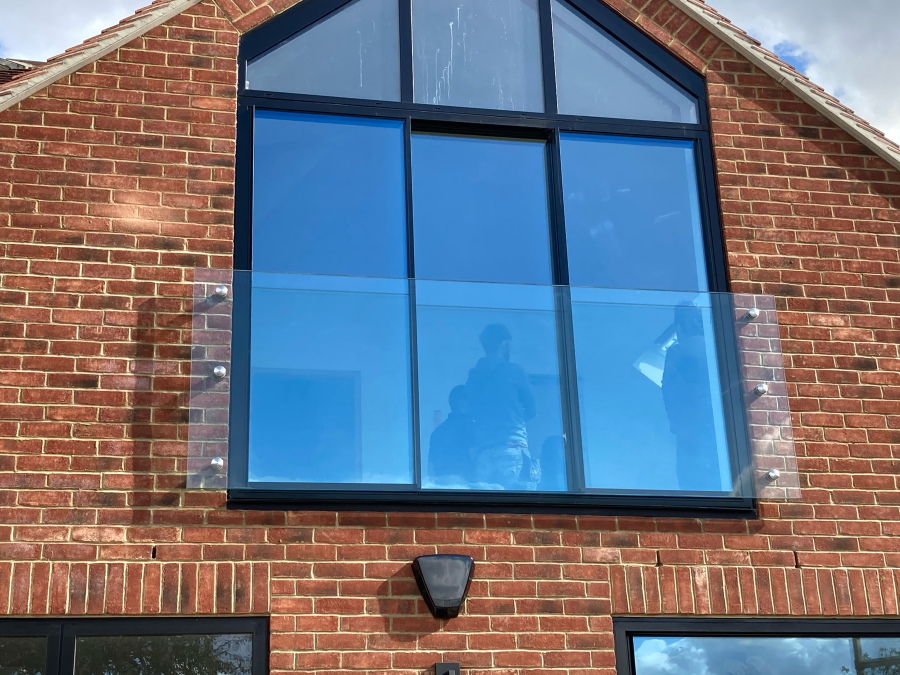

Ø50 mm Glass Holder with Flat Back Spacer (stand-off base), supplied as four removable parts: Dome Head Cap; Stand-off Back Spacer; White Sleeve and M10 Threaded Rod.

       ■ Stainless Steel in Satin Finish, 304 grade suits Interior Use, 316 grade suits Exterior Use
       ■ Suitable for 8 - 15 or 8 -18mm glass

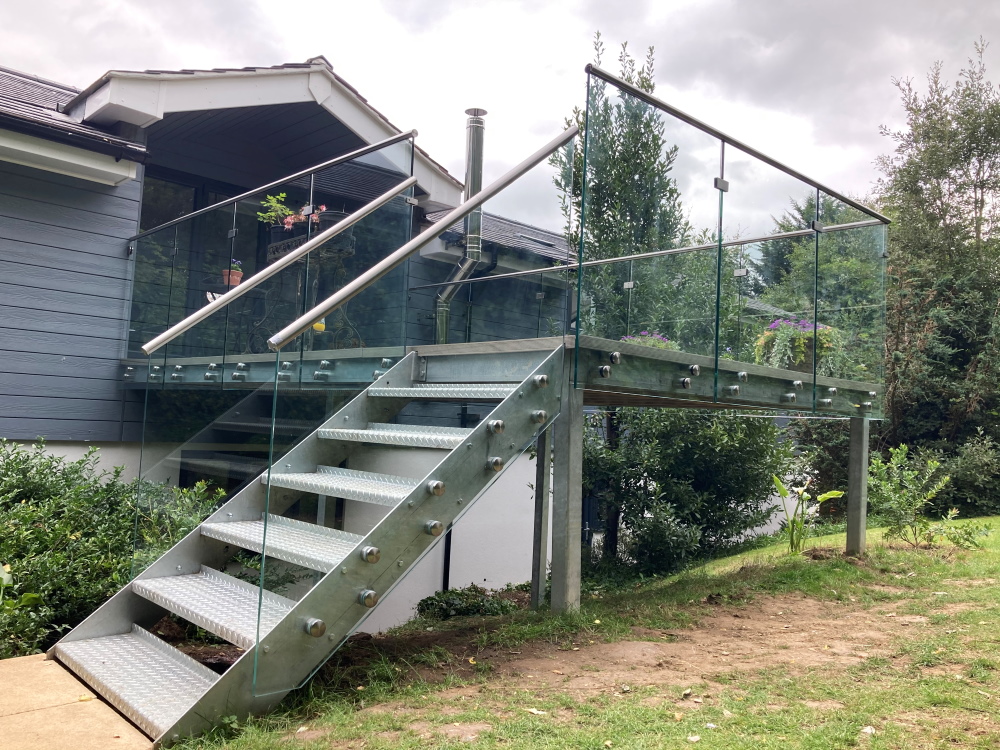

       ■ Fix on flat surface (e.g. square / rectangular tube, wall, timber)
       ■ Stand-off distance: 30mm, 40mm or 50mm
       ■ M10 threaded rod is removable (can be replaced by longer rod or screw suits timber fixing*)
                                    * To fix this Glass Holder to timber, you may need these Screws or Insert Nuts.


    *L = overall length of threaded rod

    GH50-F4-10, GH50-F6-10:  H: 10mm, L: 50mm, for Glass 8-18mm

    GH50-F4-20, GH50-F6-20:  H: 20mm, L: 70mm, for Glass 8-18mm

    GH50-F4-30, GH50-F6-30:  H: 30mm, L: 80mm, for Glass 8-18mm

    GH50-F4-40, GH50-F6-40H: 40mm, L: 80mm, for Glass 8-18mm

    GH50-F4-50, GH50-F6-50:  H: 50mm, L: 90mm, for Glass 8-18mm

    GA50-F6W-10:   H: 10mm, L: 45mm, for Glass 8-15mm

    Technical Report:

    Test specimens were mounted on to a rigid concrete structure with a test rig from steel with sufficient strength to withstand loads applied to it. For each test, load was applied to the glass in a hand railing height using a hydraulic ram. Load was measured with a load cell. A digital calliper was used to measure the deflection of the barrier from its neutral position. Glass Panel; 12.76mm and 17.52mm laminated and toughened.

    F (kN/m) Deflection (mm)
    (glass: 12.76mm,
    1.2m W x 1.4m H)
    Deflection (mm)
    (glass: 17.52mm,
    1.2m W x 1.4m H)
    0.36 16.58 8.14
    0.5 27.49 14.01
    0.74 41.54 20.58
    1.0 57.96 27.62
    1.3   37.42
    1.5   47.13
    2.0

    Please note: the loading was applied to the top of the glass at a height of 1,1m above finished floor level. These results are based only to the above mentioned mounting arrangement.

    Specification

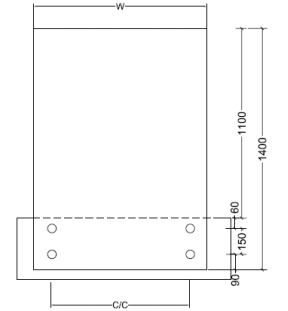

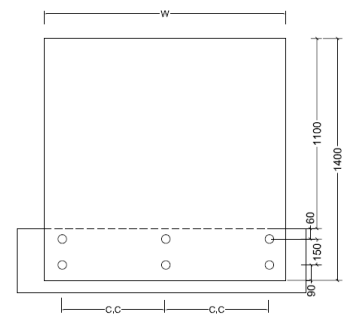

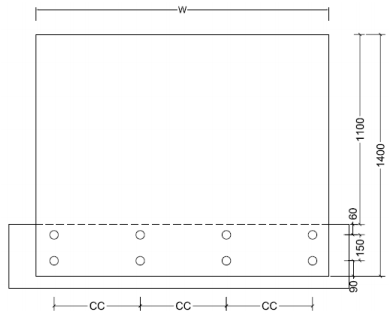

    Test Arrangement
    Various barrier specimens were mounted on to a rigid concrete structure with a test rig from steel with sufficient strength to withstand loads applied to it. For each test, load was applied at the top of glass. Load was measured with a load cell. A digital calliper was used to measure the deflection of the barrier from its neutral position. The tests were done according to one or more of the following standards:

    BS-EN-1990, 1991, 1993, 1999, BSI 6180

    Glass

    17,52 (8mm-1,52-8mm) laminated with PVB film and toughened; 21,52 (10mm-1,52-10mm) laminated with PVB film and toughened

    Test Results
    Glass Size (mm)
    W x H x T
    Load Height
    (mm)
    Adapter cc
    (mm)
    No. of
    adapters
    Adapters h
    (mm)
    Line Load (kN/m)
    0.36 0.72 1.50
    deflection (mm)
    1200x1400x17.52 1100 500+500 6 150 8.1 20.6 47.1
    1400x1400x17.52 1100 550-550 6 150 14.2 25 50.0
    1600x1400x17.52 1100 450-450-450 8 150 15.0 33.1 67.5
    1800x1400x17.52 1100 500-500-500 8 150 16.8 34.4 69.4
    2000x1400x17.52 1100 600-600-600 8 150 18.6 38.2 77.0
    1200x1400x21.52 1100 700 4 150 7.8 19.5 42.5
    1400x1400x21.52 1100 550-550 6 150 10.8 22.4 45.0
    1600x1400x21.52 1100 450-450-450 8 150 10.4 21.4 43.4
    1800x1400x21.52 1100 700+700 6 150 11.5 21.5 35.2
    2000x1400x21.52 1100 600-600-600 8 150 8.7 22.8 46.2

    Please note: These results are based only to the above mentioned mounting arrangement.
