Extra large glass adapter for staircase: Ø60 mm or Ø70 mm Disc Glass Holder with Flat Back Spacer (stand-off base), supplied as four removable parts: Dome Head Cap; Stand-off Back Spacer; White Sleeve and Threaded Rod.

  Stainless Steel in Satin Finish, 304 grade suits Interior Use, 316 grade suits Exterior Use

  Suitable for 8 - 21mm glass

  Fix on flat surface (e.g. square / rectangular tube, wall)

  Stand-off distance: 10mm, 30mm, 40mm or 50mm

  Threaded Rod (M10 for GH60-FX, M12 for GH70-FX) is removable (can be replaced by longer rod or screw suits timber fixing*)

Material: Stainless Steel SUS304 or SUS316*
Finish: Satin Finish
Glass Thickness: 8 - 21mm
Hole Drilling: GH60: Ø20mm, GH70: 22 mm
GH70
GH60-F4-10,  GH60-F6-10 H: 10mm, L: 70mm  GH70-F4-10,  GH70-F6-10 H: 10mm, L: 70mm
GH60-F4-30,  GH60-F6-30 H: 30mm, L: 90mm  GH70-F4-30,  GH70-F6-30 H: 30mm, L: 90mm
GH60-F4-40,  GH60-F6-40 H: 40mm, L: 100mm GH70-F4-40, GH70-F6-40 H: 40mm, L: 100mm
GH60-F4-50,  GH60-F6-50 H: 50mm, L: 110mm GH70-F4-50, GH70-F6-50 H: 50mm, L: 110mm


* SUS304 grade Stainless Steel suits internal use; With increased corrosion resistance, the SUS316 grade Stainless Steel can be used for both interior and exterior and is better suited for coastal or more heavily polluted environments.

Please Note: All descriptions, specifications, diagrams, illustrations and dimensions given are approximate and intended for general guidance purposes only. They may be subject to change without prior notice. We make all reasonable efforts to ensure that the contents of this site are accurate and up-to-date, but can accept no responsibility for omissions, errors or subsequent changes.

Test Arrangement

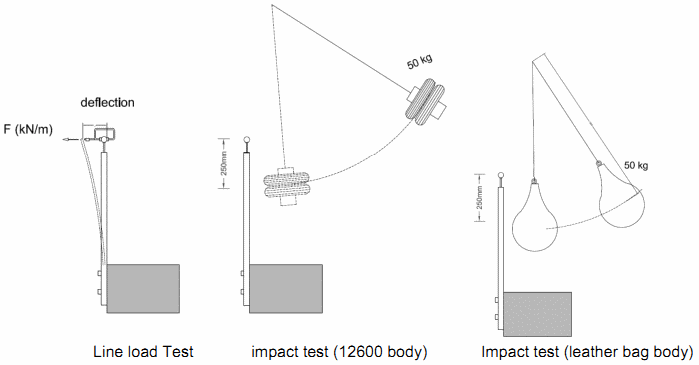

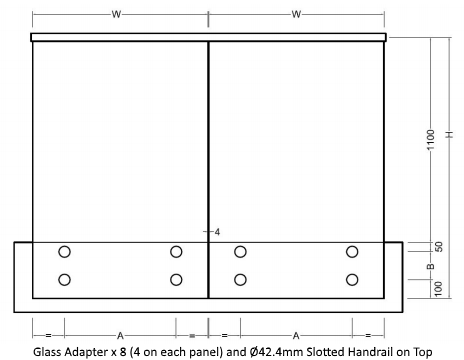

Various barrier specimens were mounted on to a a testing structure with a test rig from steel with sufficient strength to withstand loads applied to it. For each test, load was applied at the top of glass at 1100mm height above finished floor level. Load was measured with a load cell and the deflection of the barrier from its neutral position was measured with a digital clock. The impact test was executed with two glass panels with slotted handrail. The tests were done according to one or more of the following standards: BS-EN-1991-1-1,BSI 6180

Glass Adapters used in the Test

GC60-F4-500, GC70-F4-500

Glass used in the Test

16.76 (8mm-0.76-8mm) laminated with PVB film and toughened; 21,52 (10mm-1,52-10mm) laminated with PVB film and toughened
15mm and 19mm Monolithic Toughened glass



Line Load Test Results

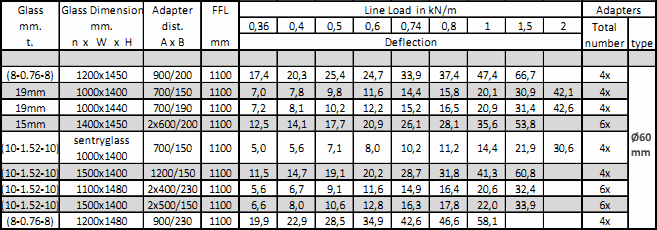

Table 1: For Ø60mm Glass Adapter (GC60-F4-500)

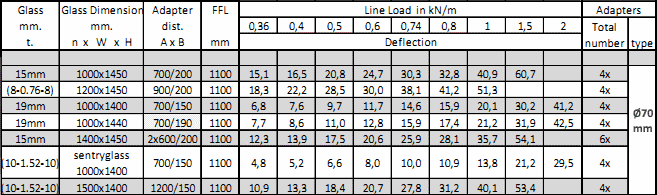

Table 2: For Ø70mm Glass Adapter (GC70-F4-500)

Please note:

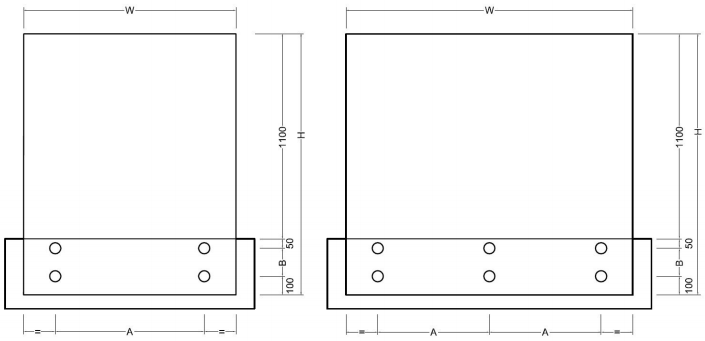

a) The loading was applied to the top of the glass pane at a height of 1100mm above finished floor level, being 50mm above the upper adapters (see assembly drawings. The spacing between the adapters is according to the above Tables 1 and 4.
b) Glass heights: 100 + B (vertical spacing between adapters) + 50 +1100mm, giving the corresponding heights according to Table 3. for the different values of B.
c) Tests are based only to the above mentioned mounting arrangement.

Table 3: Glass Heights

Value of B Glass Height
150mm 1400mm
190mm 1440mm
200mm 1450mm
230mm 1480mm

Impact Test Results
Table 4:

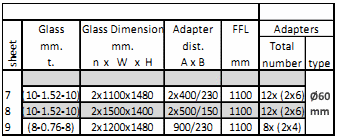

Dynamic load results from the tests (the test was executed with two laminated glass panels and slotted handrail):
