A range of premium aluminium glazing channels specifically designed for use in Wet Room and Walk-in Shower. It can be used collectively or independently to create the prefect combination you wish for.
Together with a comprehensive range of Shower Stabiliser Bar* (Shower Screen Support Bar), by combining one or more GCH-200 series glass channel, you're able to create complex shower enclosures with return panels. It can be further secured with Floor Channels or a Shower Stabiliser Bar.
■ Anodised Aluminium in Bright Polished Finish, supplied in 2000mm length. Perfect for 10mm glass (might be used with 8mm glass if lots of silicone or rubber seal used - not supplied)
■ Fitting Type: Silicone Fit (Shower Screen to be secured into the channel with clear silicone)
(*Depending on the size of the glass panel you're installing, we would recommend that you give the glass extra support with a Shower Stabiliser Bar. We have a great collection of shower screen support bar, i.e. vertical option (Ceiling-to-Glass) and horizontal option (Glass-to-Glass and Wall-to-Glass). Both are available in round and square profile).

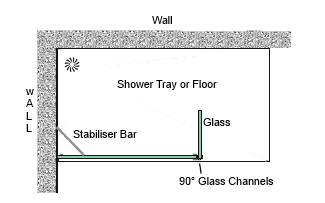

1. 90° Corner Channel (GCH-200-90)


90° Corner Channel with 'L' shaped profile for connecting two glass panels at 90°.

In the Example of Layout (above), the return panel to reduce splash back from the shower into the rest of the bathroom

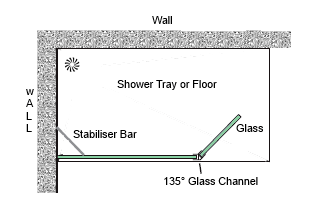

2. 135° Corner Channel (GCH-200-135)


135 Degree Corner Channel is designed to join two shower screen at 135 degree angle.

In the Example of Layout (above), the return panel to reduce splash back from the shower into the rest of the bathroom

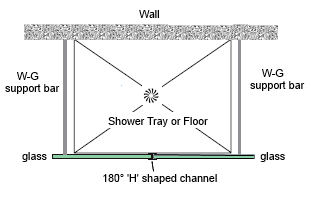

3. 180° 'H'-profile Channel (GCH-200-180)


180 Degree Corner Channel ('H' shaped profile, H Section, h-section) is for connecting two shower screen at 180 degree (in-line).

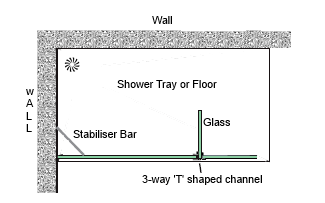

4. 3-way Connecting Channel (GCH-200-T)


3-way Channel has a 'T' shaped profile to connect three shower screen.

In the Example of Layout (above), the return panel to reduce splash back from the shower into the rest of the bathroom
