Pre-drilled Wall Channel with Insert for 8 or 10mm Glass
Pre-drilled Wall Channel with Insert for 8 or 10mm Glass
Pre-drilled Wall Channel with Insert for 8 or 10mm Glass

Pre-drilled Wall Channel with Insert for 8 or 10mm Glass

£35.00
(Exc. 20% VAT)
(£42.00 Inc. VAT)
(1 Review)
8mm
Bright Polished
In Stock, Express Delivery
+
Item Code
CIH-220W-8BP
Overview

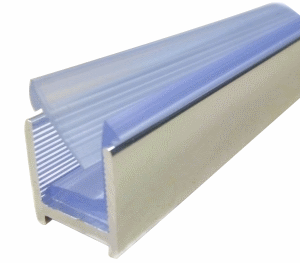

Pre-drilled Glazing Channels supplied with insert (PVC gaskets) for shower and wet rooms.

This purpose designed Aluminium Glazing U-Channel comes with time-saving countersunk pre-drilled holes for easy application, and are supplied together with PVC insert for a silicone-free neat finish. Suits 8mm glass.
Material: Extruded Aluminium with 2200mm length

Anodised Aluminium in bright polished finish
Can be used as wall profile, or on the floor
Pre-drilled holes Ø4.2 mm equally distributed.

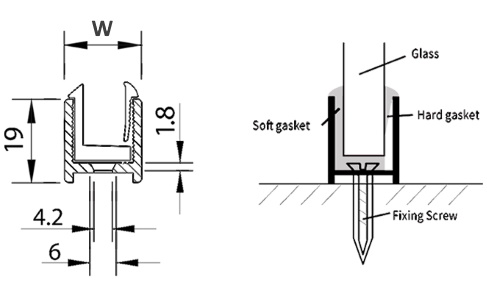

Dimensions: for 8mm glass (item code: CIH-220W-8): L:2200 mm x W:16mm x H:19mm;
Fitting Type: E-Z Fitting ( no silicone needed)
Optional End Cap* available for covering the open end of the channels to achieve a nice neat finish


For CIH-220W-10: W = 18mm, For CIH-220W-8: W = 16mm


* End Cap: GCH09CAP is for 8mm channel (item code: CIH-220W-8)

Fitting Guidance
 Pre-drilled Floor Channel
  with Insert (CIH-120F)
 QTY    Pre-drilled Wall Channel
 with Insert (CIH-220W)
 QTY
 A. Aluminium U-channel (1200mm)

1



 A. Aluminium U-channel (2200mm)

1

 B. Fixing Screws*

0



 B. Fixing Screws*

0

 C. Wall Plug*

0



 C. Wall Plug*

0

 D. Soft Gasket

1



 D. Soft Gasket

1

 E. Rigid Insert

1



 E. Rigid Insert

1

 F. Installation Piece

0

   F. Installation Piece

0

Please Note: Screws / Wall Plug and Installation Piece are no longer supplied with channels.
Please make sure that the screws and wall plugs being used are suitable for supporting your channels. Consult a qualified tradesperson if you are unsure.


Use 5.5mm Dill for Fixing Plug.
The Soft Gasket (D) goes on the interior of the shower


Fit the Rigid Insert (E) to the exterior of the shower by tapping it with the 'Installation Piece' using a soft faced hammer (i.e. Rubber Mallet)

Apply clear silicone to the outside of the glass channel.




Delivery and Return

Shipping Time: usually within 24 hours depending on availability of stock*

This item is delivered in long length or irregular shape, which is considered oversize weight to courier companies. Therefore delivery costs start from £10 (ex. VAT) for items less than 1000mm with total order weight up to 10kg; £20.00 (ex. VAT) for items over 1000mm with total order weight up to 10kg.

Delivery Procedure:

Your parcels will require a signature upon delivery. Please kindly ensure that there will be someone to sign for the parcel at the delivery address. If you are out you will be carded, please read the instructions on the card. After the very first attempt, you also have the option to collect the parcels from your local depot of the couriers.

Timescales:

The cut-off time for next working day deliveries is 12:30 Monday to Friday (excluding Bank Holiday). Please Note: We rely on a third party (our couriers), therefore we are unable to guarantee delivery services. However, over 98.5% of deliveries are achieved on time.

Return:

14 DAYS MONEY BACK GUARANTEE*: we at Kerol Hardware want you to be delighted with your purchase. Our aim is your total 100% satisfaction before and after you order. In the unlikely event should you wish to return an item(s), we offer you gladly 14 calendar days from delivery date in which to decide to keep your ordered item(s) or return it/them. *Terms & Conditions apply, please click here for details.

More info >  Detailed Delivery Information can be found here. Detailed Return Policy can be found here.

Customer Reviews (1)
Write a Review and share your opinions!
1 Review:

Wall channel
Rating:
09 March 2024  |

Exalant speedy service


Was this helpful to you?  Yes  /  No
