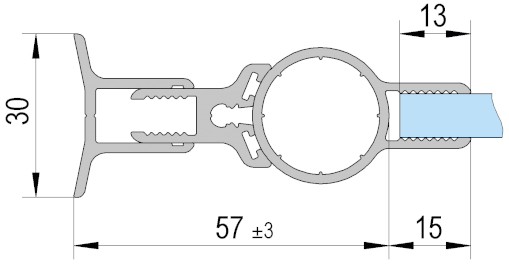

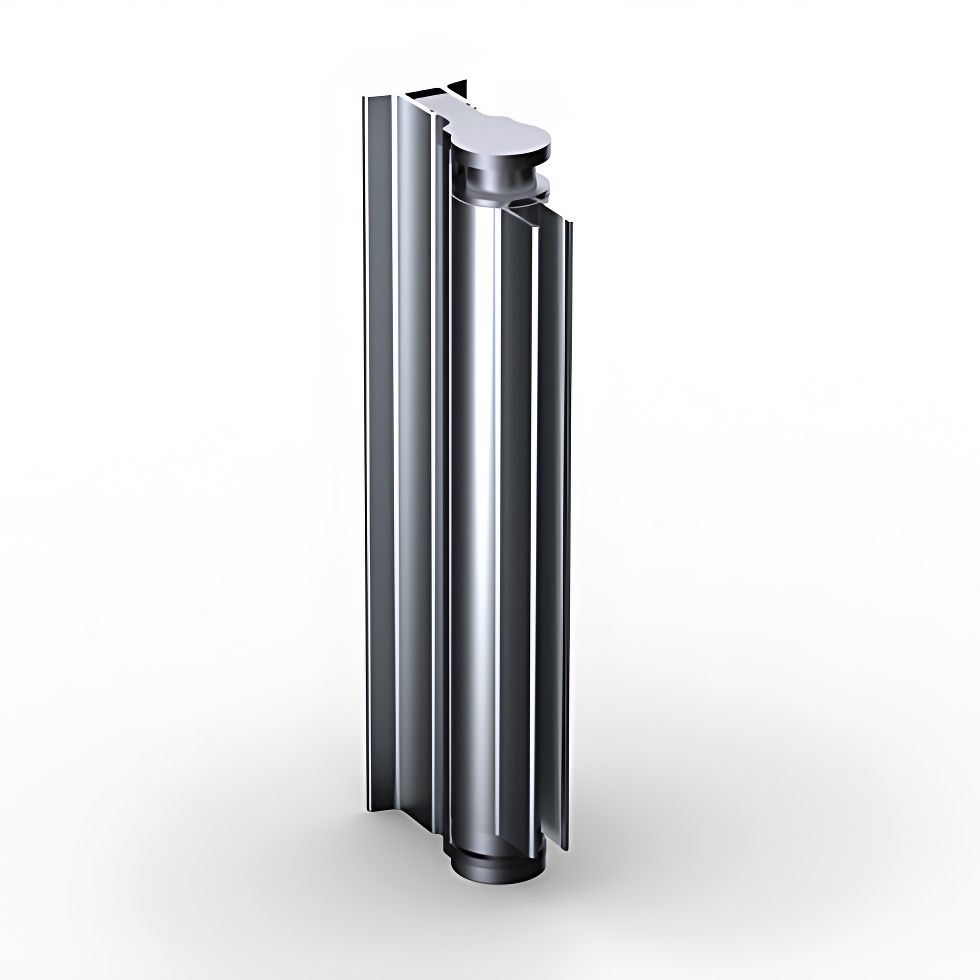

Aluminium Wall Profile Hinge with 5mm lift-up function for 8mm glass shower door or bath screen. Requires no glass drilling or cut-out. This wall profile hinge can be mounted from either side, allowing both left and right-handed users to be comfortable.
■ Material: Aluminium ■ Finish: Polished Aluminium, Anodised Aluminium and Black finish
■ Length: 2200mm (can be cut on site to desired length)
■ To fit 8mm thick glass, Swinging both way, hold open at 90° opening
■ Max. glass size: L2187mm x W 800mm, Load Capacity: 36kg
■ No Glass hole drilling or Cut-out required: use Silicone Mastic to secure the glass panel.
■ Supplied with Installation Instructions

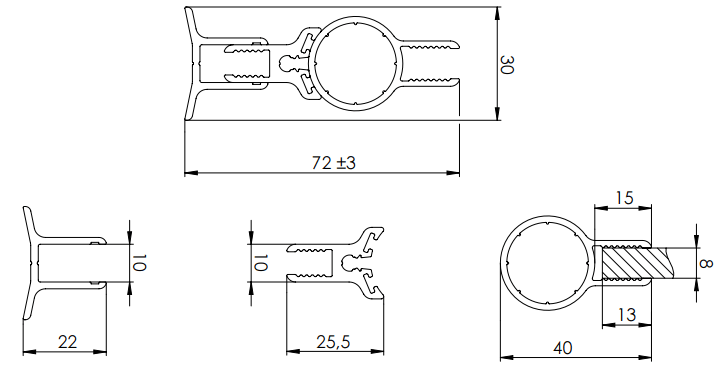

1x Wall Profile
1x Intermediate Profile
1x Glass Profile
1x Accessory (incl. Top & Bottom Pivot Cap, Fixings and Instruction)
