30mm Stainless Steel Stand-off Support for Glass Worktops

30mm Stainless Steel Stand-off Support for Glass Worktops
Unit Price:  £12.70(Exc. 20% VAT)(£15.24 Inc. VAT)

Item Code:  SDF30-38

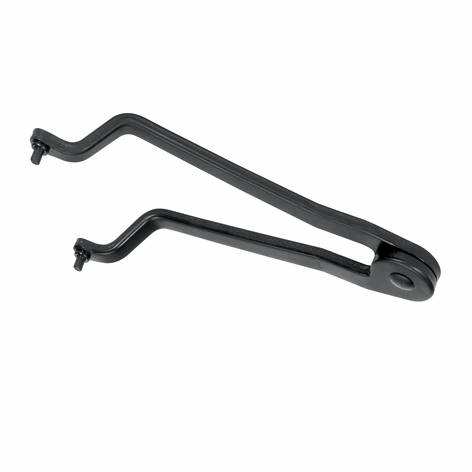

Adjustable Fixing WrenchAdjustable Fixing Wrench
Priced as single unit.

Ø30 Stainless Steel Stand-off Support for Glass Worktops. Available with varying stand-off length. Ideal to be used as support for adding glass worktop on table / desk or use as sign support stand off brackets to hold sign panel or notice panel standing off the wall , timber or other partitions.

   ■ SUS304 Grade Satin Brushed Stainless Steel.

   ■ Suitable for Glass, Perspex, Acrylic Panels or Poster Sleeves  8 - 12mm

   ■ Flush Mounted 'Snake Eye' Cap designed for applications where the stand-off cap must be flush with the surface of the glass

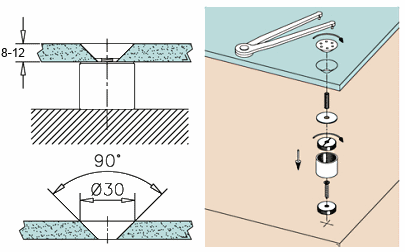

   ■ Dimensions: 30mm diameter, Flat Head Thickness: 8mm, Stand-off Distance: 19mm, 25mm, 38mm, 50mm or 102mm

   Use vertically as glass worktop support or horizontally as sign support wall stand-off.

                                                                               *Fixing screw is not supplied.
** Wrench Sold Separately, click here to buy the Fixing Wrench for 'Pig Nose' / 'Snake Eye' Cap.

 Material:    Stainless Steel (SUS304) suits Interior
 Finish:  Satin Finish
 Hole Drilling:  Countersunk hole required
 Glass Thickness:  8mm - 12mm
 Stand-off Distance (L):

 L= 19mm (Item Code: SDF30-19)

 L= 25mm (Item Code: SDF30-25)

 L= 38mm (Item Code: SDF30-38)

 L= 50mm (Item Code: SDF30-50)

 L= 102mm (Item Code: SDF30-100)

Please Note:

1. The threaded bar for SDF30-19, SDF30-25, SDF30-38 and SDF30-50 is IMPERIAL TRHEAD; for SDF30-100, it is M8 Metric THREAD.

2. The load capacity of this range of stand-off fittings greatly depends on the physical properties of the mounting substrate (e.g. the wall) as well as the choice of suitable mounting hardware.

3. All specifications are for reference purposes only and are subject to change without prior notice.
