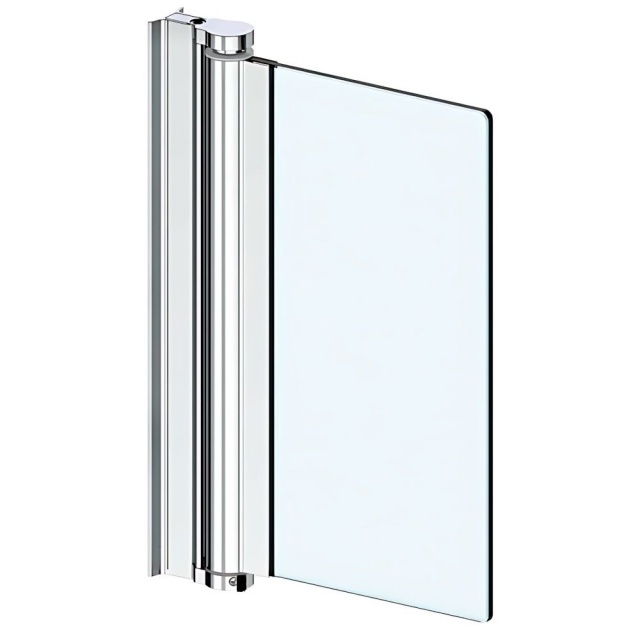

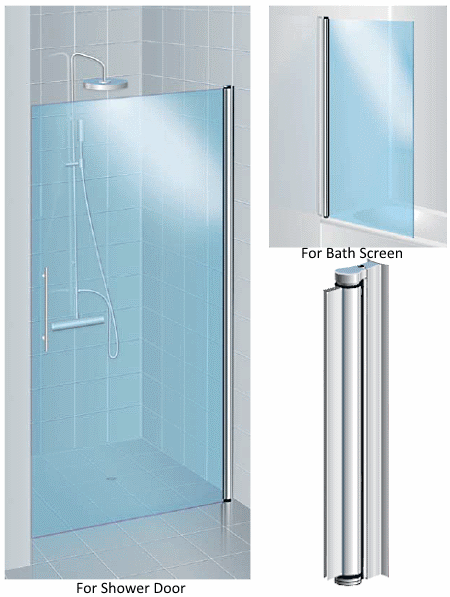

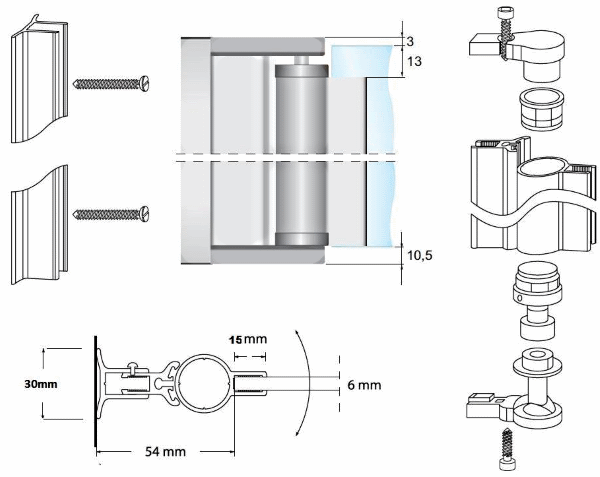

Wall mounted Aluminium pivot hinge with 3mm lift-up function for 6mm glass shower door or bath screen. Requires no glass drilling or cut-out. This pivoting door hinge can be mounted from either side, allowing both left and right-handed users to be comfortable.
■ Material: Aluminium ■ Finish: Polished
■ Length: 1900mm (can be cut on site to desired length)
■ To fit 6mm thick glass door with 110° opening (110° inwards and 110° outwards)
■ Max. glass size: L1900mm x W 800mm, Load Capacity: 23kg
■ No Glass hole drilling or Cut-out required: use Silicone Mastic to secure the glass panel.
■ Supplied with Installation Instructions (also available to download here)

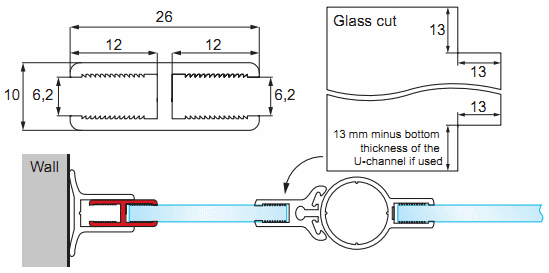

For wider opening, you can add side panel and H-profile to extend the hinge kit*:
Optional H-Profile (Item code: AL-PVH-H-CP01) for Wall-Glass-Glass Construction: £16.00 (ex. VAT) each, sold separately.
*Please Note: this extension kit CANNOT be used for existing shower panel.
