Stainless Steel Glass Balustrade Bracket
Stainless Steel Glass Balustrade Bracket

Stainless Steel Glass Balustrade Bracket

£6.50
(Exc. 20% VAT)
£8.90
(£7.80 Inc. VAT)
8mm
10mm
Satin
Polished
Stainless Steel Grade
+
Item Code
SK-512F4-S10
Alternative Glass Balustrade Brackets avaiable here: Satin / Polished, Inddor / Outdoor.
Overview

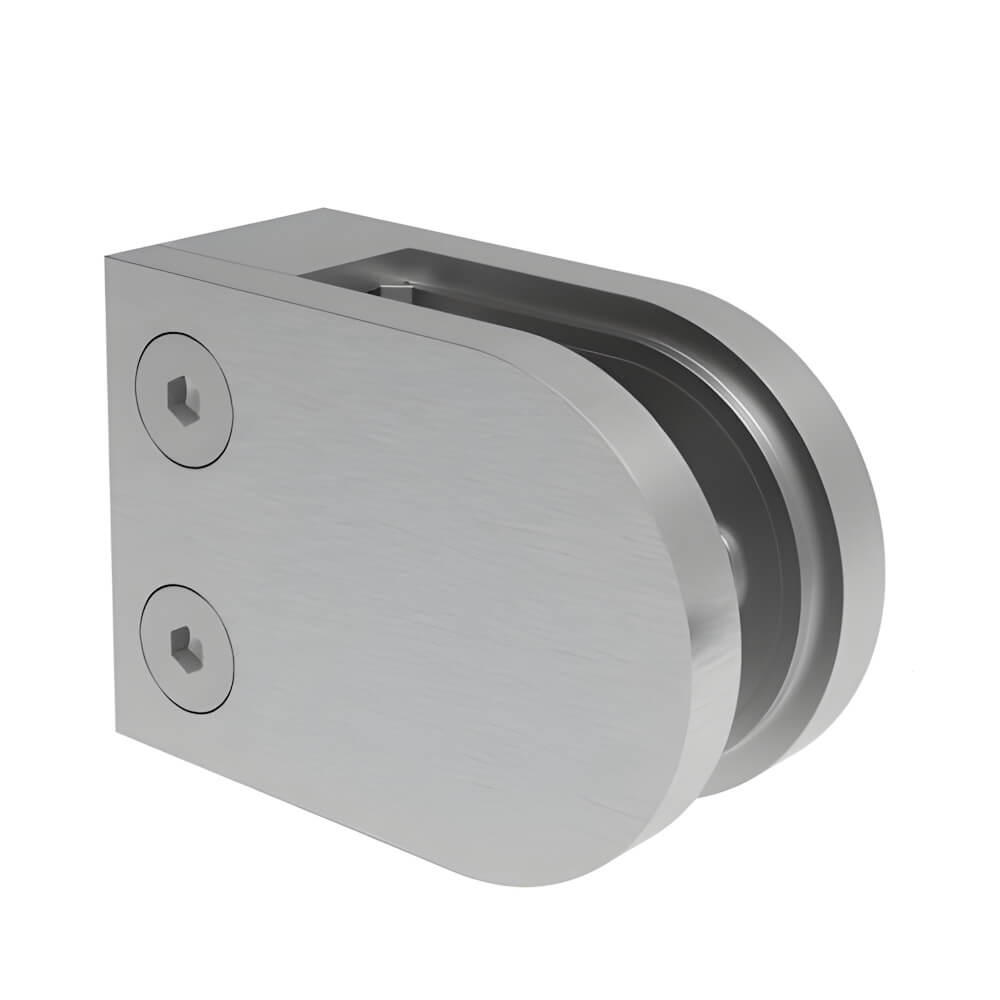

D-shaped Stainless Steel  Bracket for Glass Balustrade for flat surface fixing (e.g. square posts, wall, floor):

    304 grade Stainless Steel, suits Interior Use
    316 grade Stainless Steel, suits Exterior Use

    Satin Brushed Finish or Chrome Polished Finish

    Suitable for  8mm or 10 mm glass

    Supplied complete with Removable Metal Security Pin* x 1, Rubber Gasket x 2 and Side Reinforced Screws x 2

    Drilling hole in glass is optional (Ø10mm hole is required when using the Security Pin**)

    Specification

    Material:  Stainless Steel SUS304 or SUS316*

    Finish: Satin  or Polished Finish

    Glass Thickness:  8mm or 10mm

    Hole Drilling: Optional (drilling hole in glass is required when using the Secure Pin**)

    Supplied with: Metal Secure Pin* x 1, Rubber Gasket x 2, Side Reinforced Screws x 2
                                Pin is Ø8mm, Ø10mm hole required in glass when using this pin.



    * SUS304 grade Stainless Steel suits internal use; With increased corrosion resistance, the SUS316 grade Stainless Steel can be used for both interior and exterior and is better suited for coastal or more heavily polluted environments.

    ** For safety reason, we suggest the Secure Pin (supplied with your clamps) to be used when the glass panel is fixed to the outside of a staircase and overhanging.

    Please Note: All descriptions, specifications, diagrams, illustrations and dimensions given are approximate and intended for general guidance purposes only. They may be subject to change without prior notice. We make all reasonable efforts to ensure that the contents of this site are accurate and up-to-date, but can accept no responsibility for omissions, errors or subsequent changes.

    Assembly Guides


    The type of the screw needed will vary greatly depending on the type of surface you're fixing to (e.g. stainless steel post, wall, floor...). The above Hexagon Socket Head Cap Screw (M8) is the standard screw to be used when fixing the glass clamps to steel posts. You might want to choose the correct fixing screw with similar dimension as this.

    Below is a typical glass clamps application, to show the recommended positions for fixing the glass clamps. However we do have customers who prefer  fixing the clamps on top and bottom (e.g having a larger glass panel).

     Dimensions (mm)  Min.  Max.
     W  Width of Glass  500  1500*
     H  Height of Glass  800  1000*
     h1  Distance between handrail and top of the glass  10  50 without edge protection, 100 with edge protection
     h2  Distance between floor and bottom of the glass  10  50 without edge protection, 100 with edge protection
     h3  Glass edge above – axle upper glass clamp  100  150
     h4  Glass edge below – axle lower glass clamp  100  150

    *Max. size depends on glass type, glass thickness and wind factor (when using outdoor).
    ** For safety reason, we suggest the Secure Pin (supplied with your clamps) to be used when the glass panel is fixed to the outside of a staircase and overhanging.

    Please note: All specifications are for reference purposes only and are subject to change without prior notice.
