Stainless Steel Floor Support Clamp for 10mm - 21.52mm Glass

Stainless Steel Floor Support Clamp for 10mm - 21.52mm Glass
 Model: SquareModel: Ovel
Unit Price:  £60.00(Exc. 20% VAT)(£72.00 Inc. VAT)

Item Code:  GPF-147SQ
Fixing Type:  Surface Mounting

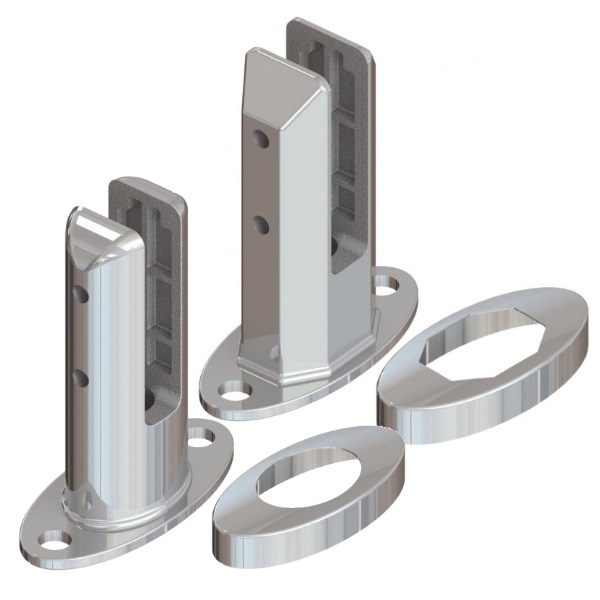

Square or Oval Shaped Stainless Steel Floor Clamps (Suppor Brackets) supplied with fixing plate and cover, for glass thickness 10mm - 21.52mm

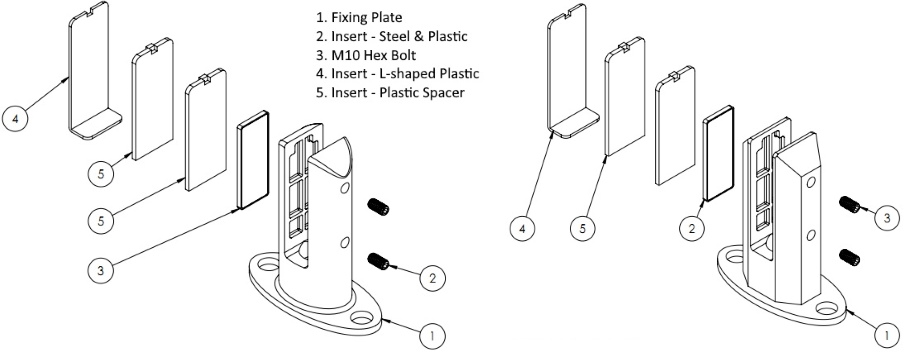

Featured with New Friction Clamping System: Glass panel secured by the new friction systems, where it is gripped by the PVC gasket and stainless steel pressure plate. Used to complete your pool, pond other outdoor areas with a framelss glass fence. This Stainless Steel Square Spigot can be used as mini post to elevate glass panel from the floor or other general frameless glass structures applications: e.g. Glass Balustrade, Glass Partitioning, Frameless Glass Pool Fencing, Shower Screens, Wet rooms, Timber Decking.

  Stainless Steel - Grade 2205 Duplex for high corrosion ressistance and strength

  Finish: Satin Brushed Finish.

   Can be used for indoor or outdoor application.

  ■ Suits 10.0  -  21.50 mm glass thickness.

  ■ Easy surface mounting to floor (concrete, tiles, paving ground) and timber decking

  ■ Friction Clamping System: no hole drilling needed in glass

  ■ Stainless Steel Handrail available, sold separately

  180° In-line Connector and 90° Corner Connector  and Reinforcing Connector available: to be used between two panels for further stabilising (sold separately)

Material: Stainless Steel Duplex 2205 grade

Finish: Satin Brushed

Mounting: Surface Mounting

Glass Thickness: 10 - 21.5mm

Glass Fabrication: no hole drilling in glass needed

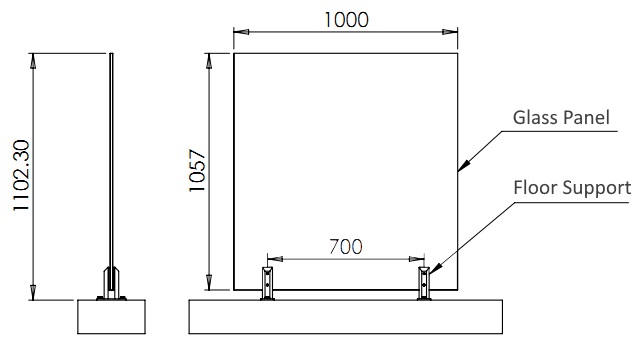

Recommended size of panel:

* Due to the number of varying mounting conditions, anchors and mounting screws are not supplied.

Please Note: All specifications are for reference purposes only and are subject to change without prior notice. Dimensions for guide only. Component may vary slightly from the sizes shown.
